aston martin v8 vantage (2009) instrument panel, lhd parts diagram

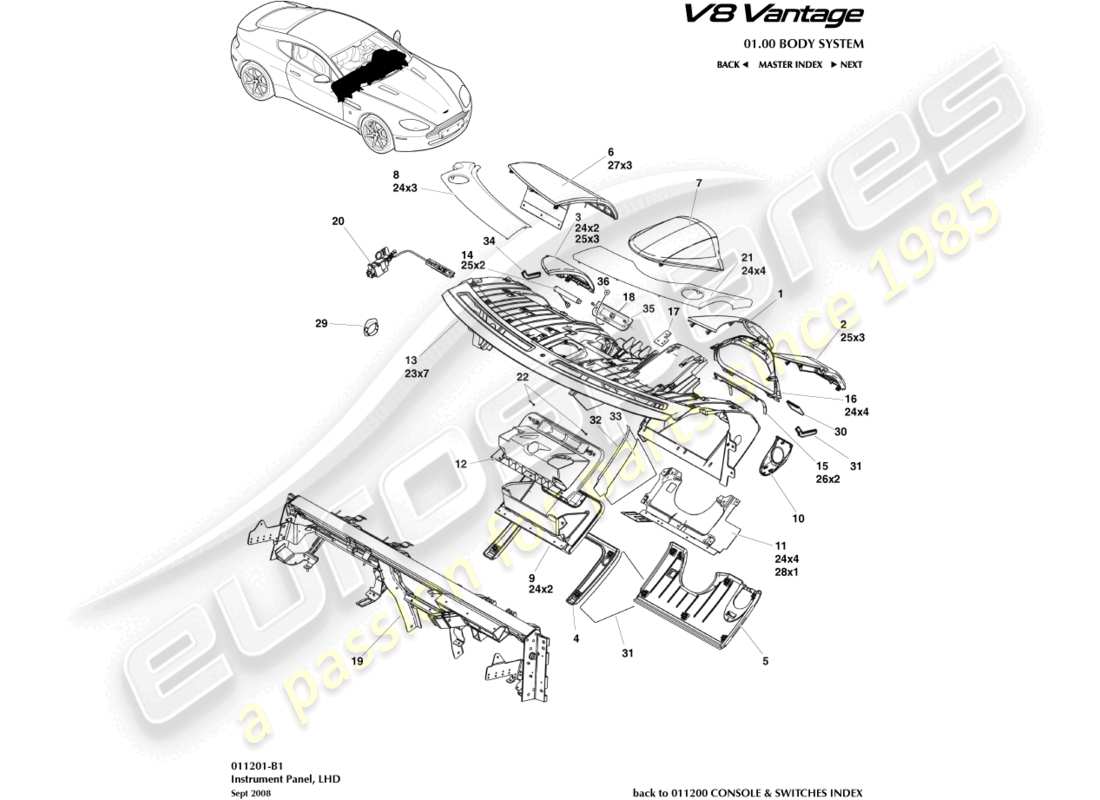

011201-B1 - Instrument Panel, LHD

Aston Martin V8 Vantage (2009) Instrument Panel, LHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: 6G33-C04634-BEW
                                                            TRIM PANEL, UPPER, LH INNER
                                                            from £236.79
                                                            from £236.79
                                                            TRIM PANEL, UPPER, LH INNER Genuine Aston Martin - New (to order)
                                                            # 2
                                                            MPN: 6G33-C04634-ADW
                                                            TRIM PANEL, UPPER, LH OUTER
                                                            from £236.79
                                                            from £236.79
                                                            TRIM PANEL, UPPER, LH OUTER Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 6G33-C04635-ADW
                                                            TRIM PANEL, UPPER, RH OUTER
                                                            from £236.79
                                                            from £236.79
                                                            TRIM PANEL, UPPER, RH OUTER Genuine Aston Martin - New (to order)
                                                            # 4
                                                            MPN: 6G33-C043K93-ADW
                                                            TRIM PANEL, GLOVEBOX SURROUND
                                                            from £358.17
                                                            from £358.17
                                                            TRIM PANEL, GLOVEBOX SURROUND Genuine Aston Martin - New (to order)
                                                            # 5
                                                            MPN: 6G33-C04325-AFW
                                                            TRIM PANEL, LOWER LH
                                                            from £336.85
                                                            from £336.85
                                                            TRIM PANEL, LOWER LH Genuine Aston Martin - New (to order)
                                                            # 6
                                                            MPN: 6G33-C044H58-ADW
                                                            DOOR ASSY, PASSENGER AIR BAG
                                                            from £772.86
                                                            from £772.86
                                                            DOOR ASSEMBLY, PASSENGER AIR BAG Genuine Aston Martin - New (to order)
                                                            # 7
                                                            MPN: 6G33-10862-AHW
                                                            HOOD, INSTRUMENT CLUSTER
                                                            leather
                                                            from £681.14
                                                            from £681.14
                                                            HOOD, INSTRUMENT CLUSTER Genuine Aston Martin - New (to order)
                                                            # 7
                                                            MPN: FG33-10862-DBW
                                                            HOOD, INSTRUMENT CLUSTER
                                                            ALCANTARA
                                                            from £713.57
                                                            from £713.57
                                                            HOOD, INSTRUMENT CLUSTER Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: 6G33-C043C54-CFW
                                                            TRIM PANEL, RH
                                                            STANDARD
                                                            from £552.95
                                                            from £552.95
                                                            TRIM PANEL, RH Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: 9G33-C043C54-CCW
                                                            TRIM PANEL, RH
                                                            Bang and Olufsen
                                                            from £265.78
                                                            from £265.78
                                                            TRIM PANEL, RH Genuine Aston Martin - New (to order)
                                                            # 9
                                                            MPN: FD23-C06010-ABW
                                                            COMPLETE ASSY, GLOVEBOX
                                                            from £1,139.20
                                                            from £1,139.20
                                                            COMPLETE ASSEMBLY, GLOVEBOX Genuine Aston Martin - New (to order)
                                                            # 10
                                                            MPN: 4G43-11A665-AC
                                                            BEZEL, LIGHT SWITCH
                                                            BEZEL, LIGHT SWITCH Genuine Aston Martin - New (to order)
                                                            # 11
                                                            MPN: 4G43-60K51-CA
                                                            PROTECTOR, KNEE
                                                            from £37.09
                                                            from £37.09
                                                            KNEE PROTECTOR LHD Genuine Aston Martin - New (to order)
                                                            # 12
                                                            MPN: 6G33-56241-AB
                                                            LIGHT SHIELD, GLOVEBOX
                                                            Up to 15MY
                                                            from £18.87
                                                            from £18.87
                                                            Genuine Aston Martin (no longer available to order)
                                                            LIGHT SHIELD, GLOVEBOX Genuine Aston Martin - Used In stock
                                                            # 12
                                                            MPN: FD23-56241-AA
                                                            LIGHT SHIELD, GLOVEBOX
                                                            FROM 15MY
                                                            from £79.13
                                                            from £79.13
                                                            SHIELD, GLOVEBOX SIGHT Genuine Aston Martin - New (to order)
                                                            # 13
                                                            MPN: 6G33-C04304-ABW
                                                            INSTRUMENT PANEL
                                                            Up to 16MY
                                                            from £905.20
                                                            from £905.20
                                                            PANEL ASSEMBLY, INSTRUMENT, LHD Genuine Aston Martin - New (to order)
                                                            # 13
                                                            MPN: GG33-C04304-AA
                                                            INSTRUMENT PANEL
                                                            FROM 16MY
                                                            INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 4G43-C06102-AB
                                                            DAMPER SPRING, GLOVE COMPT
                                                            from £16.72
                                                            from £16.72
                                                            DAMPER Genuine Aston Martin - New (to order)
                                                            DAMPER Genuine Aston Martin - Used In stock
                                                            # 15
                                                            MPN: 4G43-3T501-AEW
                                                            COVER, STEERING COLUMN
                                                            from £43.58
                                                            from £43.58
                                                            CCR STRNG CLMN UPPER Genuine Aston Martin - New (to order)
                                                            # 16
                                                            MPN: 4G43-C04606-AD
                                                            PANEL, BEZEL, CLUSTER
                                                            from £56.73
                                                            from £56.73
                                                            BEZEL I/PNL CLUSTER Genuine Aston Martin - New (to order)
                                                            BEZEL I/PNL CLUSTER Genuine Aston Martin - Used In stock
                                                            # 16
                                                            MPN: 4G43-69-11445
                                                            PANEL, BEZEL, CLUSTER
                                                            CARBON
                                                            from £1,199.36
                                                            from £1,199.36
                                                            PANEL, BEZEL, CLUSTER Genuine Aston Martin - New (to order)
                                                            # 17
                                                            MPN: 6G33-19A392-BB
                                                            BRACKET, PHONE INLINE
                                                            from £7.12
                                                            from £7.12
                                                            BRACKET, PHONE INLINE Genuine Aston Martin - New (to order)
                                                            # 18
                                                            MPN: 4G43-C06157-AD
                                                            STRIKER, GLOVE COMPARTMENT, LATCH
                                                            from £13.97
                                                            from £13.97
                                                            STRKR GLV COMPT DR Genuine Aston Martin - New (to order)
                                                            # 19
                                                            MPN: 6G33-044B51-AB
                                                            CROSS CAR BEAM ASSEMBLY
                                                            Up to 08MY
                                                            CROSS CAR BEAM ASSEMBLY Genuine Aston Martin - New (to order)
                                                            # 19
                                                            MPN: DG33-044B51-BA
                                                            CROSS CAR BEAM ASSEMBLY
                                                            FROM 08MY
                                                            from £956.55
                                                            from £956.55
                                                            CCB LHD STD Genuine Aston Martin - New (to order)
                                                            # 20
                                                            MPN: 4G43-37-10067
                                                            ACTUATOR, GLOVEBOX
                                                            from £207.50
                                                            from £207.50
                                                            This part replaces part number 6G33-F9C070-AA
                                                            ACTUATOR-FUEL FILLER Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            CABLE ABUTMENT, GLOVEBOX
                                                            # -
                                                            -
                                                            CABLE, GLOVEBOX RELEASE
                                                            # 21
                                                            MPN: 6G33-C043C54-AFW
                                                            PANEL ASSY, LH
                                                            STANDARD
                                                            from £552.97
                                                            from £552.97
                                                            PANEL ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                            # 21
                                                            MPN: 9G33-C043C54-ACW
                                                            PANEL ASSY, LH
                                                            Bang and Olufsen
                                                            from £510.57
                                                            from £510.57
                                                            PANEL ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                            # 22
                                                            MPN: 4G43-69-10111
                                                            BUMPER, GLOVEBOX DOOR, UPPER
                                                            BUMPER, GLOVEBOX DOOR, UPPER Genuine Aston Martin - New (to order)
                                                            # 23
                                                            MPN: 702183
                                                            RIVET, 4.8
                                                            RIVET Genuine Aston Martin - New (to order)
                                                            # 24
                                                            MPN: 701157
                                                            SCREW, 4.2 X 16, SELF TAP
                                                            from £0.47
                                                            from £0.47
                                                            SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                                                            # 25
                                                            MPN: 702086
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            SCREW, AIR CONDITIONING CONTROL PANEL Genuine Aston Martin - New (to order)
                                                            # 26
                                                            MPN: 701445
                                                            SCREW, M4X8, PAN HEAD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: 701553
                                                            SCREW, M6, PAN HEAD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                                            # 28
                                                            MPN: 4G43-3678AA-AA
                                                            FASTENER, FIR TREE
                                                            from £0.47
                                                            from £0.47
                                                            FIR TREE PSH ON Genuine Aston Martin - New (to order)
                                                            # 29
                                                            MPN: 6G33-41883-AA
                                                            PLATE, BLANKING
                                                            Less Airbag/ Seat switch
                                                            from £5.09
                                                            from £5.09
                                                            BLANKING PLATE Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BEZEL, MOUNTING
                                                            With Airbag/ Seat switch
                                                            # 30
                                                            MPN: 77-84981
                                                            FOAM STRIP, ANTI-RATTLE
                                                            FOAM PAD Genuine Aston Martin - New (to order)
                                                            # 31
                                                            MPN: JG33-044H40-AAW
                                                            COVER, INSTRUMENT PANEL, (LH CENTRE)
                                                            18MY
                                                            COVER, INSTRUMENT PANEL, (LH CENTRE) Genuine Aston Martin - New (to order)
                                                            # 32
                                                            MPN: JG33-044H41-AAW
                                                            COVER, INSTRUMENT PANEL, (RH CENTRE)
                                                            COVER, INSTRUMENT PANEL, (RH CENTRE) Genuine Aston Martin - New (to order)
                                                            # 33
                                                            MPN: 6G33-4073A-AA
                                                            CLAMP, PASS AIR BAG DOOR
                                                            from £3.65
                                                            from £3.65
                                                            CLAMP, PASSENGER AIRBAG Genuine Aston Martin - New (to order)
                                                            # 34
                                                            MPN: 77-84981
                                                            FOAM STRIP, ANTI-RATTLE
                                                            FOAM PAD Genuine Aston Martin - New (to order)
                                                            # 35
                                                            MPN: 4G43-105104-AA
                                                            SCREW, M4X8, CAP HEAD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW CAP HD M4X8 Genuine Aston Martin - New (to order)
                                                            # 36
                                                            MPN: 9D33-46662-AA
                                                            WASHER, 14MM, 43 ID 14 OD 0.8 THK
                                                            from £0.47
                                                            from £0.47
                                                            14 MM WASHER Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            PLATE, CLAMP BRACKET
                                                            # -
                                                            -
                                                            BRACKET, CROSS BRACE, TUNNEL SIDE MTG, LH
                                                            # -
                                                            -
                                                            BRACKET, CROSS BRACE, TUNNEL SIDE MTG, RH
                                                            # -
                                                            -
                                                            BOLT, FLG, M8X55
                                                            # -
                                                            -
                                                            BOLT, FLG, M8X16
                                                            # 37
                                                            MPN: 4G43-69-10058
                                                            HINGE, GLOVE BOX DOOR
                                                            from £10.30
                                                            from £10.30
                                                            HINGE, GLOVE COMPARTMENT DOOR Genuine Aston Martin - New (to order)
                                                            # 38
                                                            MPN: 701573
                                                            SCREW/WASHER, M4X16, HINGE, GLOVE BOX
                                                            Supersession
                                                            Supersession
                                                            Genuine Aston Martin (no longer available to order)
