aston martin v8 vantage (2009) front console, manual, to 16my parts diagram

011202-B11 - Front Console, Manual, to 16MY

Aston Martin V8 Vantage (2009) Front Console, Manual, to 16MY Parts Diagram

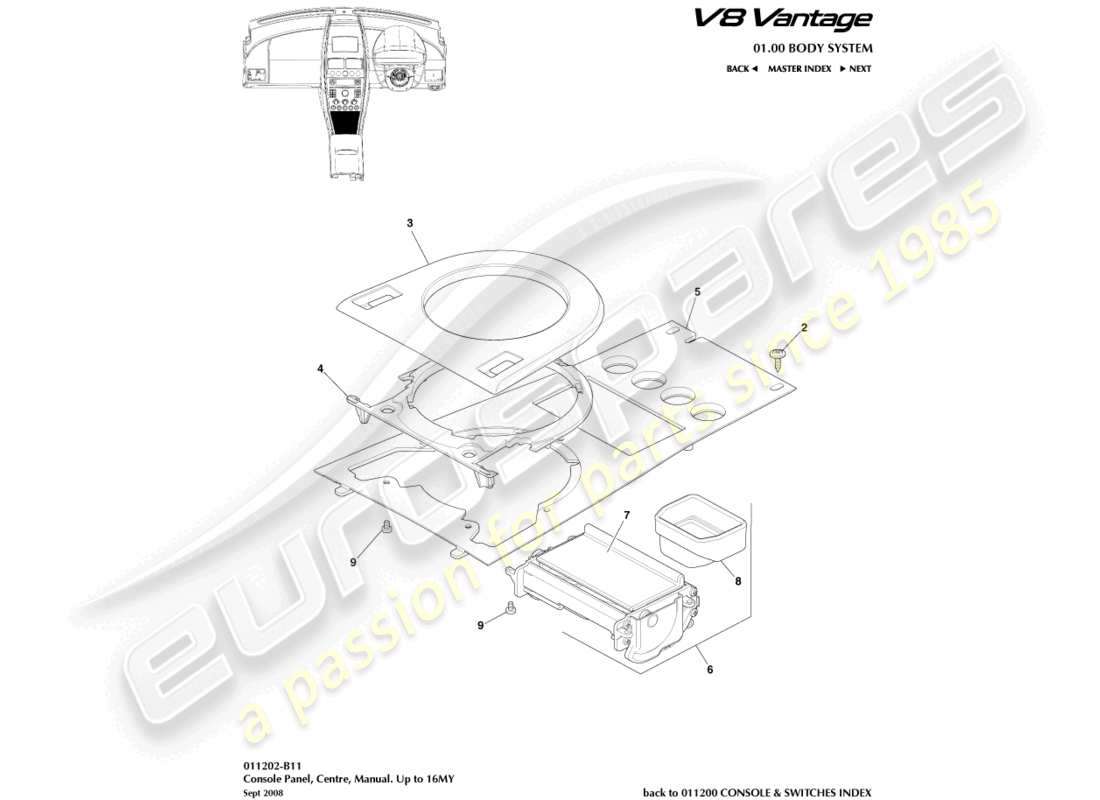

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 4G43-045A76-AAW
          CONSOLE, CENTRE PANEL ASSEMBLY
          Includes Items 2 - 8
          from £883.63
          from £883.63
          CONSOLE, CENTRE PANEL ASSEMBLY Genuine Aston Martin - New (to order)
          # 2
          MPN: 701157
          SCREW, ST4X16
          from £0.47
          from £0.47
          SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
          # 3
          MPN: 6G33-7Z289-AB
          COVER, TRANS GEARSHIFT LEVER
          from £159.67
          from £159.67
          Genuine Aston Martin (no longer available to order)
          COVER, TRANSMISSION GEAR SHIFT LEVER Genuine Aston Martin - Used In stock
          # 3
          MPN: 6G33-7Z289-AE
          COVER, TRANS GEARSHIFT LEVER
          09MY
          COVER, TRANS GEARSHIFT LEVER Genuine Aston Martin - New (to order)
          # 3
          MPN: CD23-7Z289-BA
          COVER, TRANS GEARSHIFT LEVER, CARBON
          13MY
          from £808.20
          from £808.20
          COVER, TRANSMISSION GEAR SHIFT LEVER, CARBON FIBRE Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-047A00-AA
          BRACKET, PANEL GEARSHIFT LEVER
          from £5.67
          from £5.67
          BRACKET PANEL GR SH OPG Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-DB
          PANEL, CONSOLE, CENTRE PANEL
          Anthracite, 4 Hole
          from £184.15
          from £184.15
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - Used In stock
          # 5
          MPN: 6G33-045A66-KB
          PANEL, CONSOLE, CENTRE PANEL
          Platinum, 4 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-NA
          PANEL, CONSOLE, CENTRE PANEL
          Graphite, 4 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-EB
          PANEL, CONSOLE, CENTRE PANEL
          Anthracite, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, HIGH, MANUAL (ANTHRACITE) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-LB
          PANEL, CONSOLE, CENTRE PANEL
          Platinum, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, HIGH, MANUAL (PLATINUM) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-OA
          PANEL, CONSOLE, CENTRE PANEL
          Graphite, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-FB
          PANEL, CONSOLE, CENTRE PANEL
          Anthracite, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, MID, MANUAL (ANTHRACITE) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-MB
          PANEL, CONSOLE, CENTRE PANEL
          Platinum, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, MID, MANUAL (PLATINUM) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A66-PA
          PANEL, CONSOLE, CENTRE PANEL
          Graphite, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-DB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Anthracite, 4 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-KB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Platinum, 4 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-PA
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Graphite, 4 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-EB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Anthracite, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, HIGH, BLUETOOTH, MANUAL (ANTHRACITE) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-LB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Platinum, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, HIGH, BLUETOOTH, MANUAL (PLATINUM) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-RA
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Graphite, 3 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-FB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Anthracite, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, HIGH, BLUETOOTH, MANUAL (ANTHRACITE) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-MB
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Platinum, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, MID, BLUETOOTH, MANUAL (PLATINUM) Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-045A67-SA
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
          Graphite, 2 Hole
          from £368.29
          from £368.29
          PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
          # 5
          MPN: 9G33-045A67-AB
          PANEL, CONSOLE, CENTRE PANEL
          From 09MY, Graphite
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 8D33-045A67-AB
          PANEL, CONSOLE, CENTRE PANEL
          From 07MY, Iridium
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 5
          MPN: 8D33-045A66-AC
          PANEL, CONSOLE, CENTRE PANEL
          From 12MY, Piano Black
          from £640.68
          from £640.68
          PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
          # 6
          MPN: 4G43-80-10595
          ASHTRAY ASSEMBLY
          Platinum
          from £161.78
          from £161.78
          ASHTRAY MAN - PLAT Genuine Aston Martin - New (to order)
          ASHTRAY MAN - PLAT Genuine Aston Martin - Used In stock
          With power outlet
          # 6
          MPN: 4G43-80-10597
          ASHTRAY ASSEMBLY
          ANTHRACITE
          from £323.56
          from £323.56
          ASHTRAY MAN - ANTH Genuine Aston Martin - New (to order)
          # 6
          MPN: 4G43-80-10834
          ASHTRAY ASSEMBLY
          Graphite
          from £323.56
          from £323.56
          ASHTRAY-MANL-GRAPHTE Genuine Aston Martin - New (to order)
          # -
          -
          Utility Tray
          Platinum
          # -
          -
          Utility Tray
          ANTHRACITE
          # -
          -
          Utility Tray
          Graphite
          # 7
          MPN: 4G43-043K78-AC
          DOOR
          Up To 09MY, Platinum
          from £129.50
          from £129.50
          DR UTY TRY Genuine Aston Martin - New (to order)
          # 7
          MPN: 6G33-043K78-AA
          DOOR
          Up To 09MY, Anthracite
          from £142.65
          from £142.65
          DOOR, UTILITY TRAY (ANTHRACITE) Genuine Aston Martin - New (to order)
          # 7
          MPN: 6G33-043K78-BA
          DOOR
          Graphite
          from £501.74
          from £501.74
          DOOR, UTILITY TRAY (GRAPHITE) Genuine Aston Martin - New (to order)
          # 7
          MPN: 8D33-043K78-DA
          DOOR
          From 07MY, Iridium
          from £536.37
          from £536.37
          DOOR Genuine Aston Martin - New (to order)
          # 7
          MPN: 8D33-043K78-GA
          DOOR
          From 10MY, Piano Black
          from £471.42
          from £471.42
          DOOR Genuine Aston Martin - New (to order)
          # 7
          MPN: GG33-043K78-AA
          DOOR
          From 16MY, Ice Mocha
          DOOR Genuine Aston Martin - New (to order)
          # 8
          MPN: 6G33-048A64-AA
          RECEPTICAL (ASHTRAY)
          from £116.52
          from £116.52
          BOX CNSL PANEL REAR ASSEMBLY Genuine Aston Martin - New (to order)
          # 9
          MPN: 701429
          SCREW, M4X6 PAN HD LOBE DRIVE
          BOLT, M4X6 Genuine Aston Martin - New (to order)
