aston martin v8 vantage (2009) front console, asm, 16my parts diagram

011202-B16A - Front Console, ASM, 16MY

Aston Martin V8 Vantage (2009) Front Console, ASM, 16MY Parts Diagram

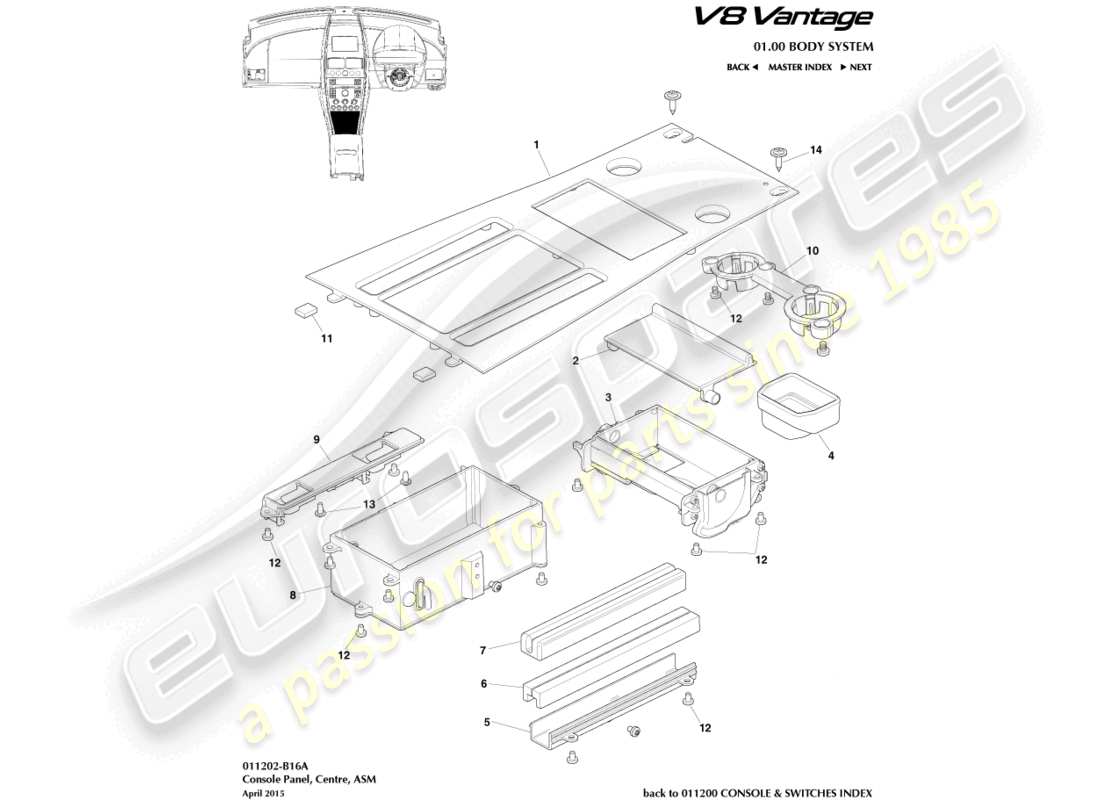

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: GG33-045A67-BBA
                          PANEL, CENTRE CONSOLE
                          From 16MY, Graphite
                          PANEL, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                          # 1
                          MPN: GG33-045A67-CB
                          PANEL, CENTRE CONSOLE
                          From 16MY, Iridium
                          from £890.48
                          from £890.48
                          PANEL, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                          # 1
                          MPN: GG33-045A67-AB
                          PANEL, CENTRE CONSOLE
                          From 16MY, Piano Black
                          from £1,912.98
                          from £1,912.98
                          PANEL, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                          # 1
                          MPN: GG33-045A67-DB
                          PANEL, CENTRE CONSOLE
                          From 16MY, Ice Mocha
                          PANEL, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                          # 1
                          MPN: HG3Y-045A67-BA
                          PANEL, CENTRE CONSOLE
                          GT8, Piano Black
                          PANEL, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-043K78-CA
                          DOOR
                          From 16MY, Graphite
                          DOOR Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-043K78-DA
                          DOOR
                          From 16MY, Iridium
                          from £536.37
                          from £536.37
                          DOOR Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-043K78-GA
                          DOOR
                          From 16MY, Piano Black
                          from £471.42
                          from £471.42
                          DOOR Genuine Aston Martin - New (to order)
                          # 2
                          MPN: GG33-043K78-AA
                          DOOR
                          From 16MY, Ice Mocha
                          DOOR Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-04788-AA
                          ASHTRAY ASSEMBLY
                          from £104.58
                          from £104.58
                          UTILITY COMPARTMENT ASSEMBLY Genuine Aston Martin - New (to order)
                          # -
                          -
                          Utility Tray
                          # 4
                          MPN: 6G33-048A64-AA
                          TRINKET TRAY
                          from £116.52
                          from £116.52
                          BOX CNSL PANEL REAR ASSEMBLY Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 4G43-045J82-AA
                          BRACKET, COIN HOLDER
                          from £8.05
                          from £8.05
                          BRACKET, COIN HOLDER Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 4G43-8678-AA
                          FOAM, COIN HOLDER
                          from £1.84
                          from £1.84
                          FOAM, COIN HOLDER Genuine Aston Martin - New (to order)
                          # 7
                          MPN: AG43-045N20-AAW
                          MOULDING, COIN HOLDER
                          MOULDING, COIN HOLDER Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 6G33-044J84-ABW
                          CONTAINER ASSEMBLY
                          Includes Phone Strap
                          CONTAINER ASSEMBLY Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-13D720-AA
                          BRACKET, MOUNTING, SWITCHES
                          from £8.96
                          from £8.96
                          BRACKET SW CNSL PANEL Genuine Aston Martin - New (to order)
                          BRACKET SW CNSL PANEL Genuine Aston Martin - Used In stock
                          # 10
                          MPN: GG33-14A462-AA
                          BRACKET, MOUNTING, SWITCHES
                          CARRIER, SWITCHES, UPPER Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 7G43-C2437-AAW
                          ANTI SQUEAK TAPE
                          from £84.73
                          from £84.73
                          VELOUR ANTI-SQUK TPE Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 701429
                          SCREW, M4X6 PAN CLR
                          BOLT, M4X6 Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 701445
                          SCREW, M4X8 PAN CLR
                          from £0.47
                          from £0.47
                          SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 701157
                          SCREW, 4X16
                          from £0.47
                          from £0.47
                          SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
