aston martin v8 vantage (2009) front console, manual, 16my parts diagram

011202-B16M - Front Console, Manual, 16MY

Aston Martin V8 Vantage (2009) Front Console, Manual, 16MY Parts Diagram

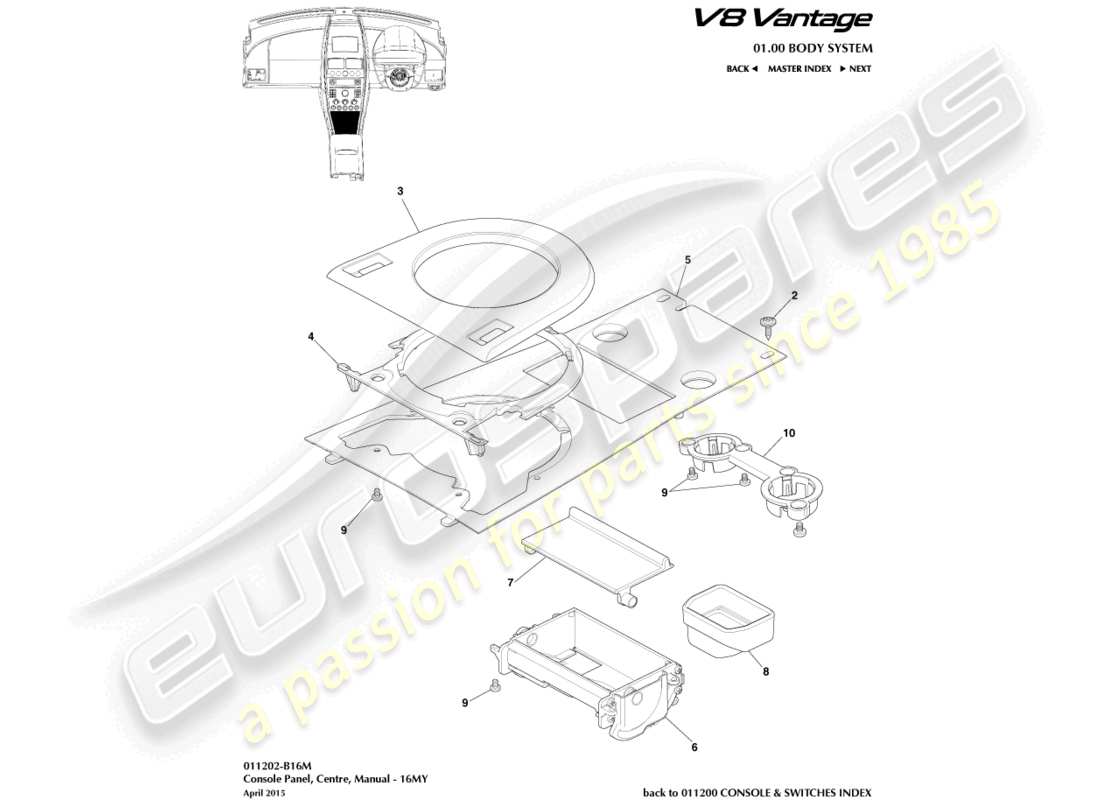

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: GG33-045A76-AAW
              CONSOLE, CENTRE PANEL ASSEMBLY
              Includes Items 2 - 8
              CONSOLE, CENTRE PANEL ASSEMBLY Genuine Aston Martin - New (to order)
              # 2
              MPN: 701157
              SCREW, ST4X16
              from £0.47
              from £0.47
              SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
              # 3
              MPN: 8D33-7Z289-BA
              COVER, TRANS GEARSHIFT LEVER
              from £318.40
              from £318.40
              This part replaces part number 6G33-7Z289-AB which we have in stock
              COVER, TRANS GEARSHIFT LEVER Genuine Aston Martin - New (to order)
              # 4
              MPN: 6G33-047A00-AA
              BRACKET, PANEL GEARSHIFT LEVER
              from £5.67
              from £5.67
              BRACKET PANEL GR SH OPG Genuine Aston Martin - New (to order)
              # 5
              MPN: GG33-045A67-JB
              PANEL, CONSOLE, CENTRE PANEL
              From 16MY, Piano Black
              from £890.47
              from £890.47
              PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
              # 5
              MPN: GG33-045A67-KB
              PANEL, CONSOLE, CENTRE PANEL
              From 16MY, Graphite
              PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
              # 5
              MPN: GG33-045A67-LB
              PANEL, CONSOLE, CENTRE PANEL
              From 16MY, Iridium
              PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
              # 5
              MPN: GG33-045A67-MB
              PANEL, CONSOLE, CENTRE PANEL
              From 16MY, Ice Mocha
              PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
              # 5
              MPN: HG3Y-045A67-AA
              PANEL, CONSOLE, CENTRE PANEL
              GT8, Piano Black
              PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
              # 6
              MPN: 4G43-80-10834
              ASHTRAY ASSEMBLY
              Graphite
              from £323.56
              from £323.56
              ASHTRAY-MANL-GRAPHTE Genuine Aston Martin - New (to order)
              # -
              -
              Utility Tray
              Graphite
              # 7
              MPN: 8D33-043K78-CA
              DOOR
              From 16MY, Graphite
              DOOR Genuine Aston Martin - New (to order)
              # 7
              MPN: 8D33-043K78-DA
              DOOR
              From 16MY, Iridium
              from £536.37
              from £536.37
              DOOR Genuine Aston Martin - New (to order)
              # 7
              MPN: 8D33-043K78-GA
              DOOR
              From 16MY, Piano Black
              from £471.42
              from £471.42
              DOOR Genuine Aston Martin - New (to order)
              # 7
              MPN: GG33-043K78-AA
              DOOR
              From 16MY, Ice Mocha
              DOOR Genuine Aston Martin - New (to order)
              # 8
              MPN: 6G33-048A64-AA
              TRINKET TRAY
              from £116.52
              from £116.52
              BOX CNSL PANEL REAR ASSEMBLY Genuine Aston Martin - New (to order)
              # 9
              MPN: 703176-PK
              SCREW, M4X6 PAN HEAD
              from £13.71
              from £13.71
              SCREW-M4X6 (PACK 10) Genuine Aston Martin - New (to order)
              # 10
              MPN: GG33-14A462-DA
              SWITCH CARRIER, DOUBLE
              SWITCH CARRIER, DOUBLE Genuine Aston Martin - New (to order)
