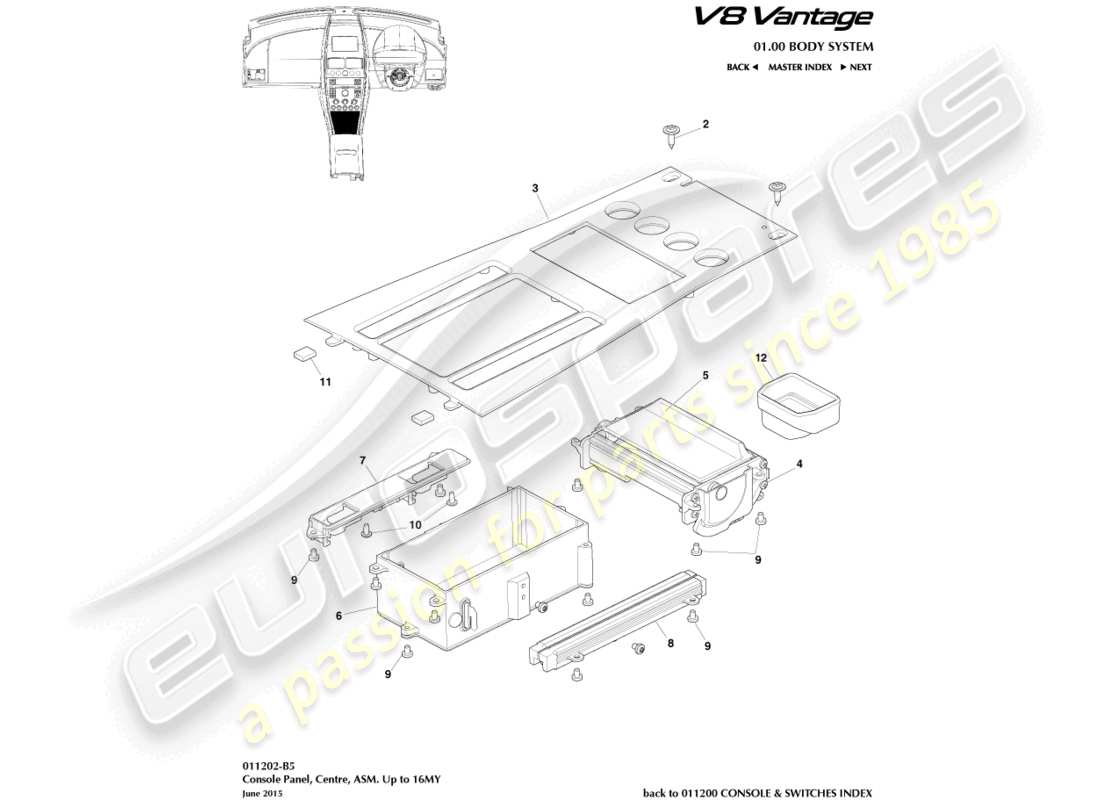

011202-B5 - Front Console, ASM, to 16MY

Aston Martin V8 Vantage (2009) Front Console, ASM, to 16MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-045A66-AAW
                  PANEL ASSEMBLY, CENTRE CONSOLE
                  Includes Items 2 - 10
                  PANEL ASSEMBLY, CENTRE CONSOLE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 701157
                  SCREW, ST4X16
                  from £0.47
                  from £0.47
                  SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-HB
                  PANEL, CONSOLE, CENTRE PANEL
                  Anthracite, 4 Hole
                  PANEL, CONSOLE, MID, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-AF
                  PANEL, CONSOLE, CENTRE PANEL
                  Platinum, 4 Hole
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-KA
                  PANEL, CONSOLE, CENTRE PANEL
                  Graphite, 4 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-AB
                  PANEL, CONSOLE, CENTRE PANEL
                  Anthracite, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, HIGH, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-GB
                  PANEL, CONSOLE, CENTRE PANEL
                  Platinum, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, HIGH, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-RA
                  PANEL, CONSOLE, CENTRE PANEL
                  Graphite, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-BB
                  PANEL, CONSOLE, CENTRE PANEL
                  Anthracite, 2 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, MID, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-HB
                  PANEL, CONSOLE, CENTRE PANEL
                  Platinum, 2 Hole
                  PANEL, CONSOLE, MID, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-SA
                  PANEL, CONSOLE, CENTRE PANEL
                  Graphite, 2 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-CA
                  PANEL, CONSOLE, CENTRE PANEL
                  Anthracite, 1 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, LOW, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A66-JA
                  PANEL, CONSOLE, CENTRE PANEL
                  Platinum, 1 Hole
                  PANEL, CONSOLE, LOW, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-HB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Anthracite, 4 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, MID, BLUETOOTH, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-AB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Platinum, 4 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, HIGH, BLUETOOTH, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-KA
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Graphite, 4 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-AB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Anthracite, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, HIGH, BLUETOOTH, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-GB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Platinum, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, HIGH, BLUETOOTH, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-NA
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Graphite, 3 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-BB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Anthracite, 2 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, MID, BLUETOOTH, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-HB
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Platinum, 2 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, MID, BLUETOOTH, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-OA
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Graphite, 2 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-CA
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Anthracite, 1 Hole
                  PANEL, CONSOLE, LOW, BLUETOOTH, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-045A67-JA
                  PANEL, CONSOLE, CENTRE PANEL, BLUETOOTH
                  Platinum, 1 Hole
                  from £368.29
                  from £368.29
                  PANEL, CONSOLE, LOW, BLUETOOTH, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 9G33-045A67-BB
                  PANEL, CONSOLE, CENTRE PANEL
                  From 09MY, Graphite
                  from £1,912.98
                  from £1,912.98
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 9G43-045A67-BC
                  PANEL, CONSOLE, CENTRE PANEL
                  From 07MY, Iridium
                  from £1,912.98
                  from £1,912.98
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: BG33-045A67-BA
                  PANEL, CONSOLE, CENTRE PANEL
                  From 12MY, Piano Black
                  PANEL, CONSOLE, CENTRE PANEL Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-80-10594
                  ASHTRAY ASSEMBLY
                  Platinum
                  from £142.36
                  from £142.36
                  ASHTRAY ASSEMBLY, AUTO (PLATINUM) Genuine Aston Martin - New (to order)
                  ASHTRAY ASSEMBLY, AUTO (PLATINUM) Genuine Aston Martin - Used In stock
                  # 4
                  MPN: 4G43-80-10596
                  ASHTRAY ASSEMBLY
                  ANTHRACITE
                  ASHTRAY ASSEMBLY, AUTO (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-80-10833
                  ASHTRAY ASSEMBLY
                  Graphite
                  ASHTRAY ASSEMBLY, AUTO (GRAPHITE) Genuine Aston Martin - New (to order)
                  # -
                  -
                  Utility Tray
                  Platinum
                  # -
                  -
                  Utility Tray
                  ANTHRACITE
                  # -
                  -
                  Utility Tray
                  Graphite
                  # 5
                  MPN: 4G43-043K78-AC
                  DOOR
                  Up To 09MY, Platinum
                  from £129.50
                  from £129.50
                  DR UTY TRY Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 6G33-043K78-AA
                  DOOR
                  Up To 09MY, Anthracite
                  from £142.65
                  from £142.65
                  DOOR, UTILITY TRAY (ANTHRACITE) Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 6G33-043K78-BA
                  DOOR
                  Graphite
                  from £501.74
                  from £501.74
                  DOOR, UTILITY TRAY (GRAPHITE) Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 8D33-043K78-DA
                  DOOR
                  From 07MY, Iridium
                  from £536.37
                  from £536.37
                  DOOR Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 8D33-043K78-GA
                  DOOR
                  From 10MY, Piano Black
                  from £471.42
                  from £471.42
                  DOOR Genuine Aston Martin - New (to order)
                  # 5
                  MPN: GG33-043K78-AA
                  DOOR
                  From 16MY, Ice Mocha
                  DOOR Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-044J84-ABW
                  CONTAINER ASSEMBLY, CONSOLE
                  CONTAINER ASSEMBLY Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-13D720-AA
                  BRACKET, SWITCH CONSOLE PANEL
                  from £8.96
                  from £8.96
                  BRACKET SW CNSL PANEL Genuine Aston Martin - New (to order)
                  BRACKET SW CNSL PANEL Genuine Aston Martin - Used In stock
                  # 8
                  MPN: 4G43-045J82-AA
                  BRACKET, COIN HOLDER
                  from £8.05
                  from £8.05
                  BRACKET, COIN HOLDER Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 701445
                  SCREW, M4X8 PAN CLR
                  from £0.47
                  from £0.47
                  SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 7G43-C2437-AAW
                  ANTI SQUEAK TAPE
                  from £84.73
                  from £84.73
                  VELOUR ANTI-SQUK TPE Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 6G33-048A64-AA
                  RECEPTICAL (ASHTRAY)
                  from £116.52
                  from £116.52
                  BOX CNSL PANEL REAR ASSEMBLY Genuine Aston Martin - New (to order)
