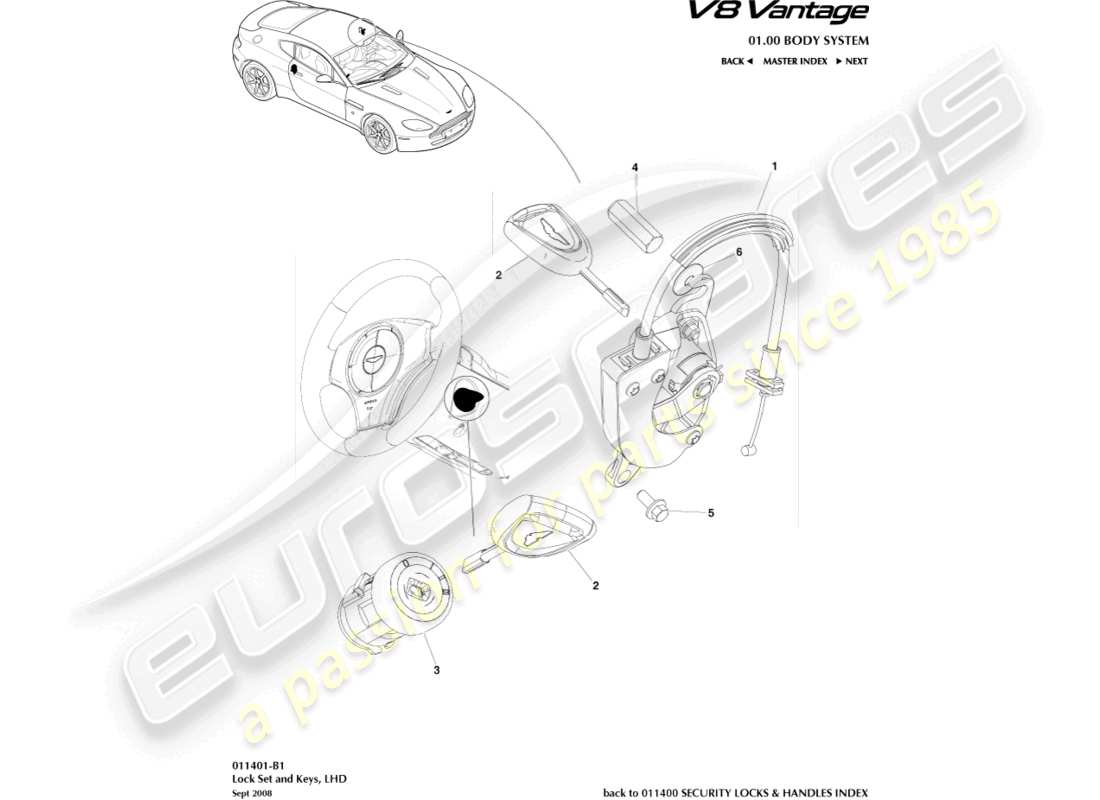

aston martin v8 vantage (2009) lock set and keys, lhd parts diagram

011401-B1 - Lock Set and Keys, LHD

Aston Martin V8 Vantage (2009) Lock Set and Keys, LHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # -
          MPN: 6G33-F22050-AB
          LOCKSET
          from £327.46
          from £327.46
          Genuine Aston Martin (no longer available to order)
          LOCKSET Genuine Aston Martin - Used In stock
          Door key and ignition barrel
          # -
          MPN: 9G33-F22050-AB
          LOCKSET
          -09MY
          LOCKSET Genuine Aston Martin - New (to order)
          # 1
          MPN: 6G33-F21990-AB
          LOCK, DOOR CYLINDER, RH
          LOCK, DOOR CYLINDER, RH Genuine Aston Martin - New (to order)
          # 1
          MPN: 6G33-F21991-AB
          LOCK, DOOR CYLINDER, LH
          LOCK, DOOR CYLINDER, LH Genuine Aston Martin - New (to order)
          # 2
          MPN: 4G43-654024-AA
          Key, door and ignition
          Key, door and ignition Genuine Aston Martin - New (to order)
          # 2
          MPN: 4G43-654024-AA/B
          KEY ASSY, BLANK
          from £113.56
          from £113.56
          KEY ASSEMBLY, BLANK Genuine Aston Martin - New (to order)
          # 2
          MPN: 4G43-654024-AA/N
          KEY ASSY, TO NUMBER
          from £118.77
          from £118.77
          KEY ASSEMBLY, TO NUMBER Genuine Aston Martin - New (to order)
          # 2
          MPN: 8D33-654024-AA/B
          KEY ASSY, BLANK, CHROME
          09MY
          from £143.00
          from £143.00
          KEY ASSEMBLY, BLANK, CHROME Genuine Aston Martin - New (to order)
          # 2
          MPN: 8D33-654024-AA/N
          KEY ASSY, TO NUMBER, CHROME
          09MY
          from £152.15
          from £152.15
          KEY ASSY-TO NMBR CHR Genuine Aston Martin - New (to order)
          # 3
          MPN: 1S71-F3677-AC
          LOCK, CYLINDER, IGNITION
          Supersession
          Supersession
          Genuine Aston Martin (no longer available to order)
          # 4
          MPN: 4G43-43183-AB
          RETAINER, KEY CYLINDER
          from £1.66
          from £1.66
          RET LK KEY CYLINDER Genuine Aston Martin - New (to order)
          # 5
          MPN: 703264
          SCREW, M5X12, ONE EACH SIDE
          SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
          # 6
          MPN: 697452
          WASHER M8X24X1.8, BLACK
          14MY
          from £4.39
          from £4.39
          WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
