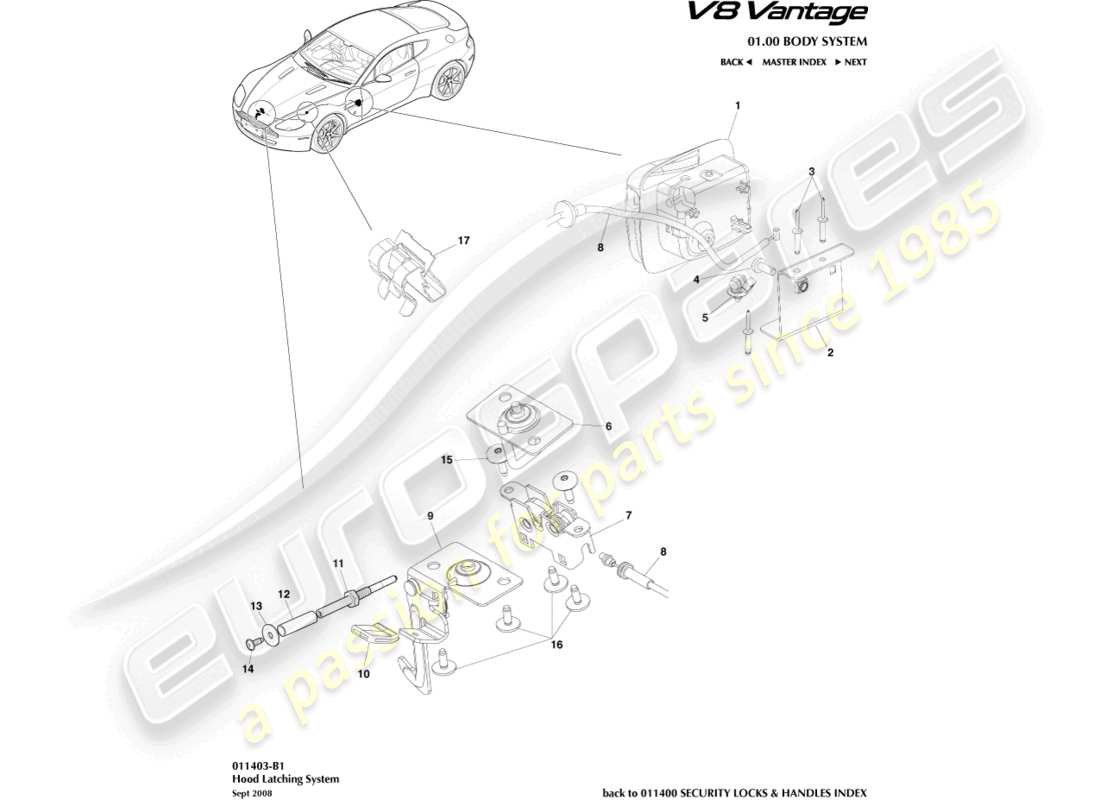

011403-B1 - Hood Latch System

Aston Martin V8 Vantage (2009) Hood Latch System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 9G43-64-11062
                                    LEVER, HOOD RELEASE
                                    from £55.18
                                    from £55.18
                                    LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
                                    LEVER-BONNET RELEASE Genuine Aston Martin - Used In stock
                                    # 2
                                    MPN: 4G43-16C730-AB
                                    LEVER, HOOD RELEASE
                                    from £8.93
                                    from £8.93
                                    HOOD REL HNDL MOUNTING BR Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 701580
                                    RIVET, BLIND 4X1-7
                                    from £0.68
                                    from £0.68
                                    RIVET, BLIND Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 701553
                                    SCREW, M6X16
                                    from £0.47
                                    from £0.47
                                    SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 4G43-65-10059
                                    CLIP
                                    from £0.47
                                    from £0.47
                                    CLIP, FIRTREE Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 6G43-64-10121
                                    STRIKER ASSEMBLY, HOOD
                                    from £89.35
                                    from £89.35
                                    STRIKER ASSEMBLY, HOOD Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 8G33-16700-AA
                                    LATCH ASSEMBLY, HOOD
                                    LATCH ASSEMBLY, HOOD Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 6G33-16C656-AD
                                    CABLE ASSEMBLY, HOOD RELEASE
                                    from £13.32
                                    from £13.32
                                    CABLE ASSEMBLY, HOOD RELEASE Genuine Aston Martin - New (to order)
                                    CABLE ASSEMBLY, HOOD RELEASE Genuine Aston Martin - Used In stock
                                    # 9
                                    MPN: 6G33-16B768-AE
                                    LATCH ASSEMBLY, HOOD, SECONDARY
                                    from £107.17
                                    from £107.17
                                    LATCH ASSEMBLY, HOOD, SECONDARY Genuine Aston Martin - New (to order)
                                    LATCH ASSEMBLY, HOOD, SECONDARY Genuine Aston Martin - Used In stock
                                    # 10
                                    MPN: 4G43-16C774-AB
                                    SLEEVE, RELEASE LEVER
                                    from £0.88
                                    from £0.88
                                    SLEEVE, RELEASE LEVER Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 6G33-16A788-AC
                                    PIN, HOOD LATCH
                                    from £18.58
                                    from £18.58
                                    PIN, HOOD LATCH Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 6G33-16C774-AA
                                    SLEEVE, HOOD LATCH STRIKER PIN
                                    from £29.32
                                    from £29.32
                                    SLEEVE, HOOD LATCH STRIKER PIN Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 700384
                                    WASHER, M5 X 19 X 1.5 THICK
                                    WASHER, M5 (PT OF FIXING KIT) Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 6G33-51756-AA
                                    WASHER, M5 X 19 X 1.5 THICK
                                    SCREW, M5X13 Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 6G33-FA0115-AB
                                    SCREW AND WASHER, M6X21
                                    Supersession
                                    Supersession
                                    Genuine Aston Martin (no longer available to order)
                                    # 16
                                    MPN: 702514
                                    SCREW, M6 X 14
                                    from £0.56
                                    from £0.56
                                    SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
                                    FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
                                    # 17
                                    MPN: 702515
                                    CLIP
                                    from £0.47
                                    from £0.47
                                    CLIP Genuine Aston Martin - New (to order)
