aston martin v8 vantage (2009) front door latch parts diagram

011404-B1 - Front Door Latch

Aston Martin V8 Vantage (2009) Front Door Latch Parts Diagram

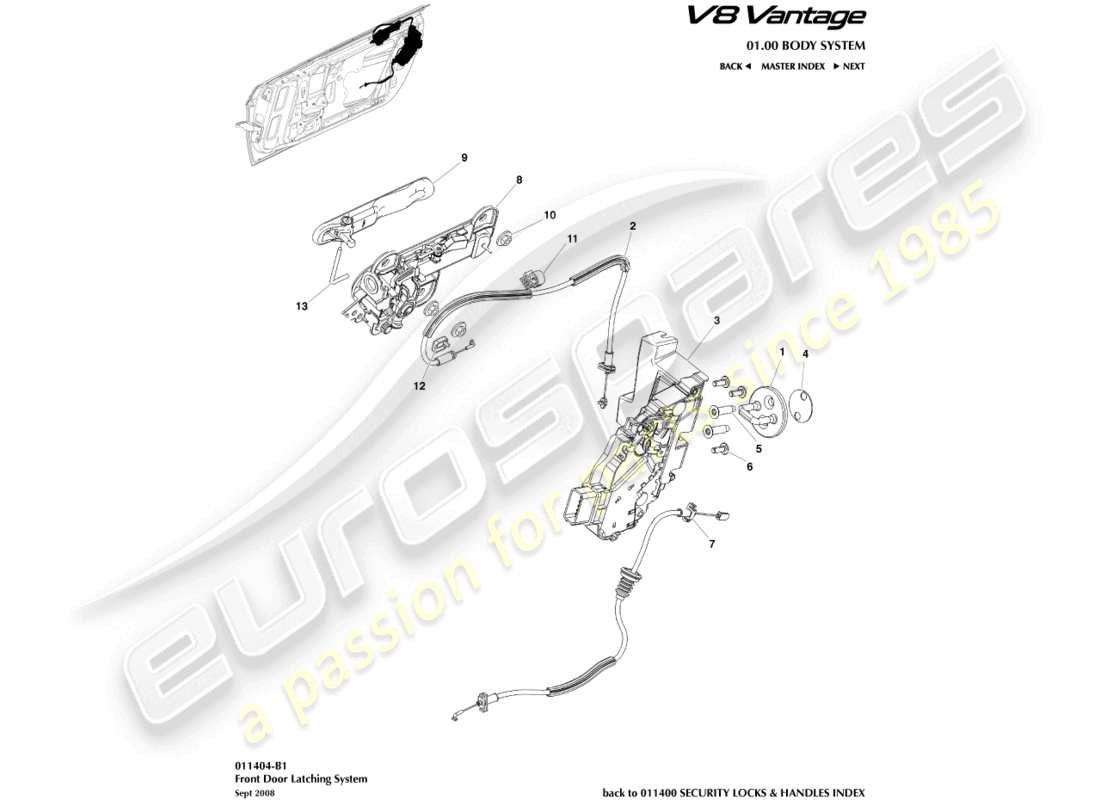

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 8D33-F21982-BA
                        STRIKER, DOOR, OFFSET
                        from £25.18
                        from £25.18
                        STRIKER, DOOR, OFFSET Genuine Aston Martin - New (to order)
                        STRIKER, DOOR, OFFSET Genuine Aston Martin - Used In stock
                        # 2
                        MPN: 6G33-221A00-CB
                        CABLE ASSY, DOOR LATCH
                        from £27.80
                        from £27.80
                        Genuine Aston Martin (no longer available to order)
                        CABLE ASSEMBLY, DOOR LATCH Genuine Aston Martin - Used In stock
                        # 3
                        MPN: 6G43-65-10233
                        LATCH ASSY, FRONT DOOR, RH
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 3
                        MPN: 6G43-65-10234
                        LATCH ASSY, FRONT DOOR, LH
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 4
                        MPN: 4G43-22058-AB
                        SHIM, DOOR LATCH STRIKER PLATE
                        from £14.97
                        from £14.97
                        SHIM, DOOR LATCH STRIKER PLATE Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 700610
                        SCREW, M8X25, CSK
                        from £0.47
                        from £0.47
                        SCREW M8X25 FLAT COUNTERSUNK Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 4G43-F218A01-CB
                        CABLE ASSY, FRONT DOOR
                        from £20.00
                        from £20.00
                        Genuine Aston Martin (no longer available to order)
                        CABLE ASSEMBLY Genuine Aston Martin - Used In stock
                        # 8
                        MPN: 4G43-226A28-AE
                        HANDLE, DOOR, EXTERNAL, FRONT
                        Genuine Aston Martin (no longer available to order)
                        HANDLE, DOOR, EXTERNAL, FRONT Genuine Aston Martin - Used In stock
                        # 8
                        MPN: 7G43-226A28-AD
                        HANDLE, DOOR, EXTERNAL, FRONT
                        07MY/08MY
                        from £71.92
                        from £71.92
                        DOOR MECHANISM, OUTER Genuine Aston Martin - New (to order)
                        DOOR MECHANISM, OUTER Genuine Aston Martin - Used In stock
                        # 9
                        MPN: 4G43-22404-AE
                        HANDLE BLADE
                        STANDARD
                        from £21.96
                        from £21.96
                        HANDLE BLADE Genuine Aston Martin - New (to order)
                        HANDLE BLADE Genuine Aston Martin - Used In stock
                        # 9
                        MPN: CD33-22405-AC
                        HANDLE BLADE, LH
                        CARBON
                        from £1,152.77
                        from £1,152.77
                        HANDLE BLADE, LH Genuine Aston Martin - New (to order)
                        # 9
                        MPN: CD33-22404-AC
                        HANDLE BLADE, RH
                        CARBON
                        from £1,152.77
                        from £1,152.77
                        HANDLE BLADE, RH Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 703612
                        NUT AND WASHER, M6
                        from £0.47
                        from £0.47
                        NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 702516
                        CLIP, 5-8, 5X
                        from £0.47
                        from £0.47
                        CLIP, 5-8, 5X Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 4G43-224A72-AG
                        DUMMY LIGHT LENS
                        Up To VIN C21325
                        LENS, DUMMY LIGHT, DOOR HANDLE Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 4G43-224A72-AH
                        DUMMY LIGHT LENS
                        FROM VIN C21326
                        from £2.42
                        from £2.42
                        DUMMY LIGHT LENS Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 4G43-224A68-AA
                        PIN, DOOR
                        from £2.79
                        from £2.79
                        PIVOT PIN OUTSIDE HN Genuine Aston Martin - New (to order)
                        # -
                        -
                        STRAP, CABLE HANDLE TIE
