aston martin v8 vantage (2009) fuel filler mechanism, coupe parts diagram

011410-B1 - Fuel Filler Mechanism, Coupe

Aston Martin V8 Vantage (2009) Fuel Filler Mechanism, Coupe Parts Diagram

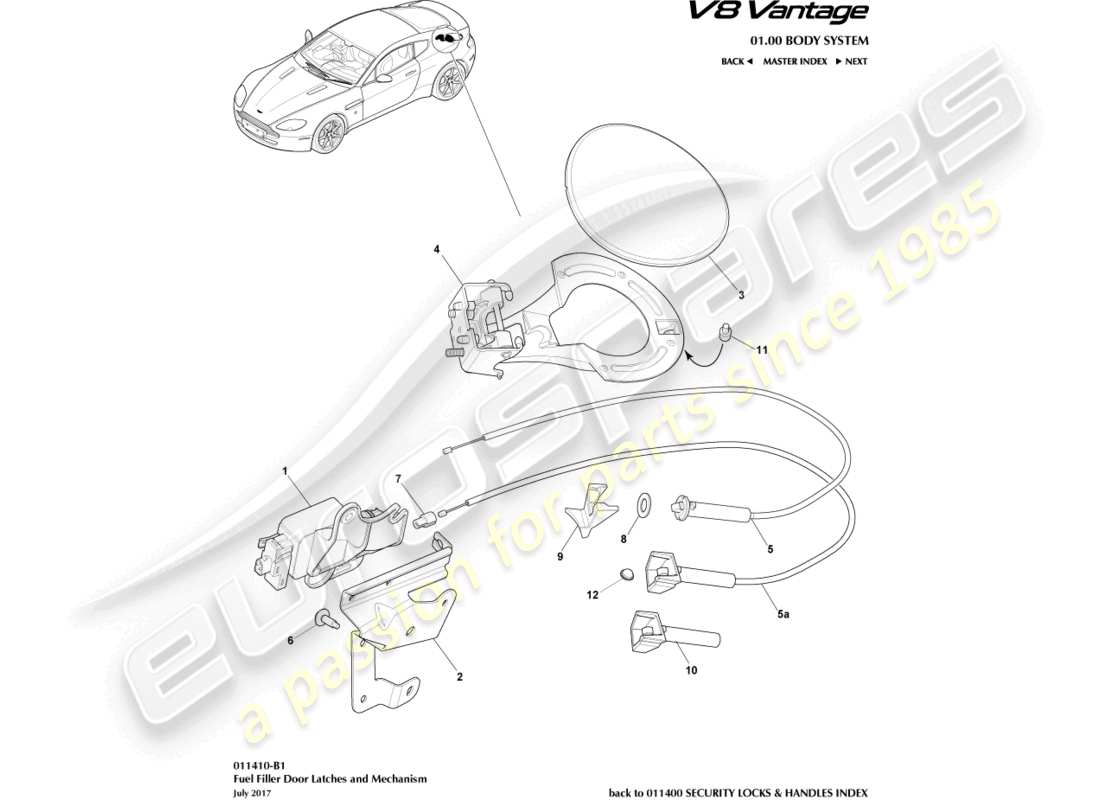

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 6G33-F9C070-AA
                      Actuator Assembly, Fuel Filler
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 2
                      MPN: 6G33-405B46-BB
                      BRACKET ASSEMBLY, FUEL FILLER
                      from £10.78
                      from £10.78
                      BRACKET ASSEMBLY, FUEL FILLER Genuine Aston Martin - New (to order)
                      BRACKET ASSEMBLY, FUEL FILLER Genuine Aston Martin - Used In stock
                      # 3
                      MPN: 6G33-C405A02-BA
                      DOOR, FUEL FILLER
                      from £25.96
                      from £25.96
                      FUEL FILLER DOOR OPENING Genuine Aston Martin - New (to order)
                      # 3
                      MPN: GD2Y-C405A02-BA
                      DOOR, FUEL FILLER
                      GT8
                      from £2,529.35
                      from £2,529.35
                      DOOR, FUEL FILLER Genuine Aston Martin - New (to order)
                      # 4
                      MPN: EG33-C405B96-AA
                      HINGE ASSEMBLY, FUEL FILLER
                      from £265.72
                      from £265.72
                      HINGE ASSEMBLY, FUEL FILLER Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 6G33-40180-BA
                      CABLE, FUEL FILLER CAP RELEASE
                      from £13.76
                      from £13.76
                      CABLE, FUEL FILLER CAP RELEASE Genuine Aston Martin - New (to order)
                      CABLE, FUEL FILLER CAP RELEASE Genuine Aston Martin - Used In stock
                      # 5a
                      MPN: EG33-40180-AA
                      CABLE, FUEL FILLER CAP RELEASE
                      FROM VIN C19214
                      from £29.48
                      from £29.48
                      CABLE, FUEL FILLER CAP RELEASE Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 701350
                      SCREW AND WASHER, M6X20
                      SCREW, M6X20 Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-2K625-AA
                      ABUTMENT, FUEL FILLER CABLE
                      from £10.37
                      from £10.37
                      ABUTMENT CABLE G/C Genuine Aston Martin - New (to order)
                      ABUTMENT CABLE G/C Genuine Aston Martin - Used In stock
                      # 8
                      MPN: 6G33-28614-AA
                      SEAL, FUEL FILLER CAP CABLE
                      from £0.73
                      from £0.73
                      SE CABLE FU/FILL FLP Genuine Aston Martin - New (to order)
                      # 9
                      MPN: EG33-9C294-AA
                      GUIDE, FUEL FILLER DOOR, BLACK
                      GUIDE, FUEL FILLER DOOR, BLACK Genuine Aston Martin - New (to order)
                      # 10
                      MPN: EG33-9C294-AB
                      GUIDE, FUEL FILLER DOOR, BLACK
                      FROM 2014
                      from £28.26
                      from £28.26
                      GUIDE, FUEL FILLER DOOR, BLACK Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 4G43-72027-AA
                      BUMP STOP, FUEL FILLER
                      from £2.70
                      from £2.70
                      BUMP STOP, FUEL FILLER Genuine Aston Martin - New (to order)
                      # -
                      -
                      FUEL FILLER DOOR BRACKET KIT
                      Service Kit for item 4
                      # 12
                      MPN: XR8T-F03836-AA
                      11.1X5MM BUMPON
                      from £1.04
                      from £1.04
                      BUMPON Genuine Aston Martin - New (to order)
