aston martin v8 vantage (2009) tonneau latching system parts diagram

011411-B1 - Tonneau Latching System

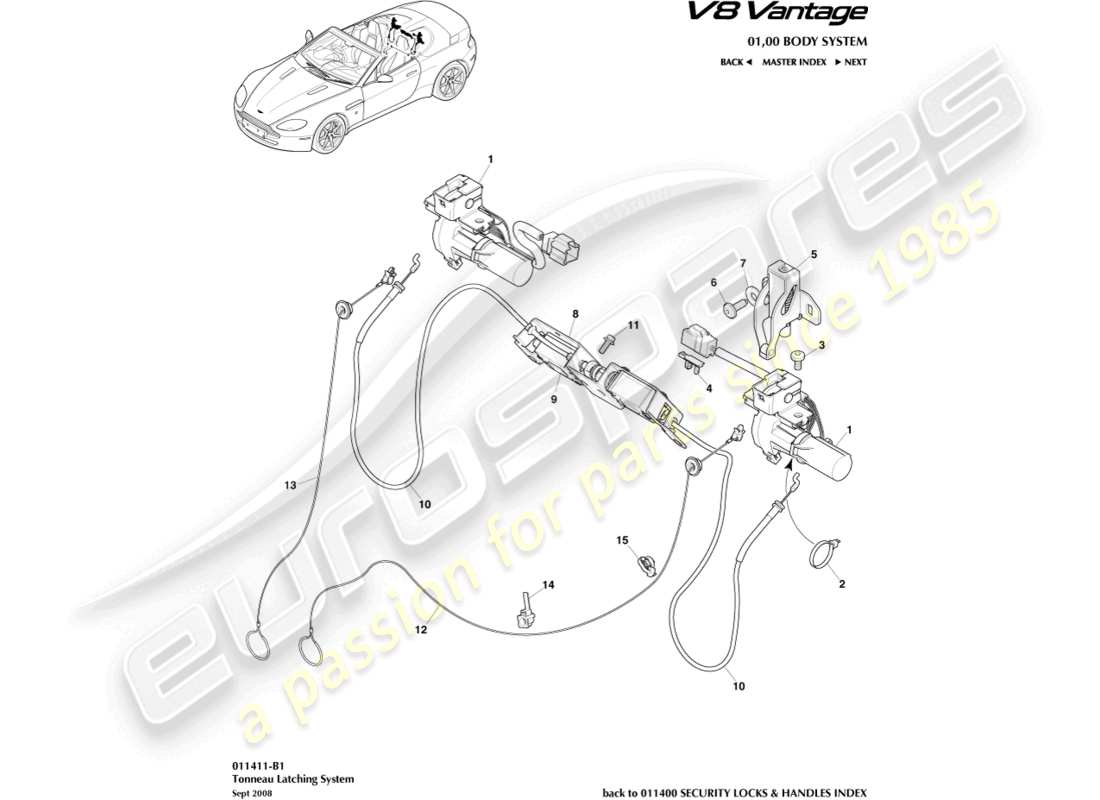

Aston Martin V8 Vantage (2009) Tonneau Latching System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 6G43-93-10421
                                  LATCH ASSY LCD
                                  from £379.81
                                  from £379.81
                                  LATCH LCD Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 37-90075
                                  TIE STRAP
                                  from £0.47
                                  from £0.47
                                  TIE STRAP-290MM Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 703173
                                  SCREW, M8 X 16, PAN HEAD
                                  from £0.47
                                  from £0.47
                                  SCREW, M8 X 16, PAN HEAD Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: E9DB-14A163-CA
                                  RETAINER, WIRE HARNESS
                                  RETAINER, WIRE HARNESS UPPER Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 6G33-53974-BB
                                  STRIKER ASSY, TONNEAU
                                  from £111.76
                                  from £111.76
                                  STRIKER ASSEMBLY, TONNEAU Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 703071
                                  SCREW, M8 X 22
                                  from £0.47
                                  from £0.47
                                  SCREW, M8 X 25, TORX HEAD Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 697452
                                  WASHER
                                  from £4.39
                                  from £4.39
                                  WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                  # -
                                  -
                                  ACTUATOR AND BRACKET ASSY
                                  # 8
                                  MPN: 6G33-507B02-AA
                                  BRACKET ACTUATOR
                                  BRACKET ACTUATOR Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 6G33-507B20-AA
                                  ACTUATOR ASSY
                                  ACTUATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: 6G33-514B26-AB
                                  CABLE ASSY
                                  from £706.09
                                  from £706.09
                                  CABLE ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 703265
                                  SCREW, M6 X 16, HEX FLANGE HEAD
                                  from £0.47
                                  from £0.47
                                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 6G33-432B19-AB
                                  CORD ASSY, LHS
                                  from £7.64
                                  from £7.64
                                  CORD TONNEAU RELEASE, LH Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 6G33-432B18-AB
                                  CORD ASSY, RHS
                                  from £6.70
                                  from £6.70
                                  CORD TONNEAU RELEASE, RH Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 700423
                                  TIE WRAP STUD FIXING
                                  from £6.12
                                  from £6.12
                                  TIE WRAP, STUD FIXING Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 4G43-619B00-AA
                                  TIE WRAP FIR TREE
                                  from £0.47
                                  from £0.47
                                  TIE WRAP, FIR TREE, 200MM X 4.6MM Genuine Aston Martin - New (to order)
