aston martin v8 vantage (2009) windscreen wash parts diagram

011604-20 - Windscreen Wash

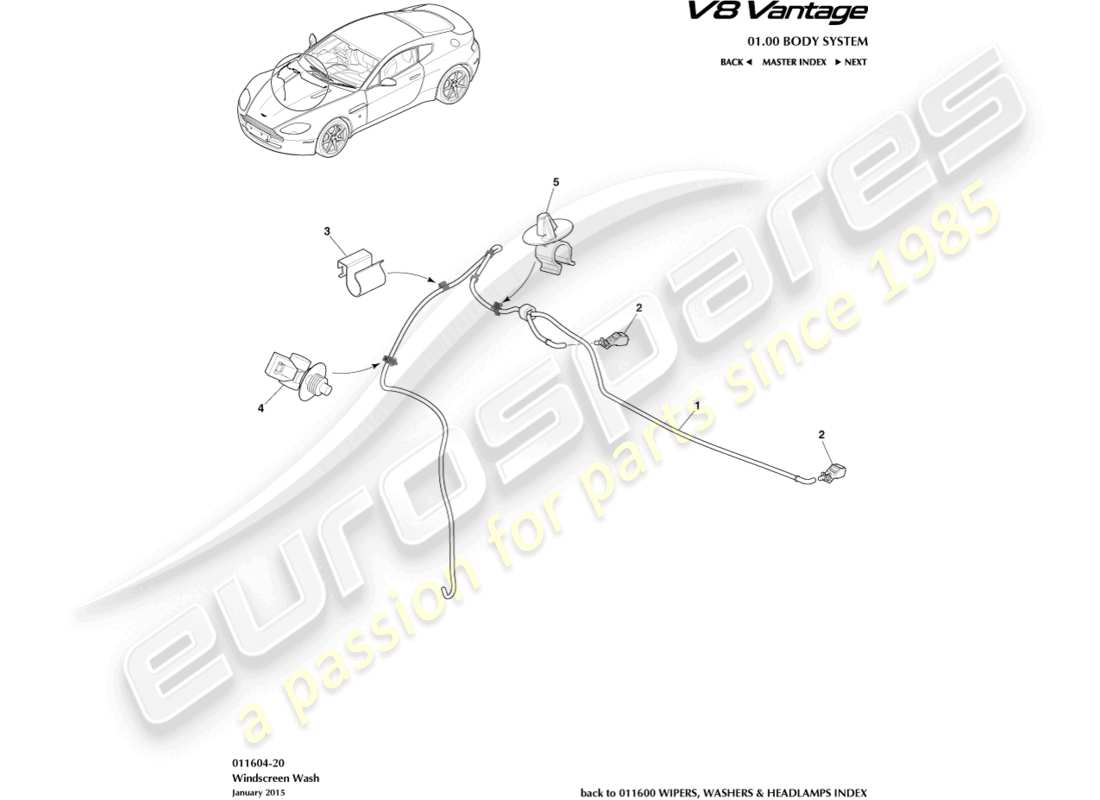

Aston Martin V8 Vantage (2009) Windscreen Wash Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-17Z605-BA
          TUBE ASSEMBLY, WINDSCREEN WASH FRONT
          from £38.13
          from £38.13
          TUBE ASSEMBLY, WINDSCREEN WASH FRONT Genuine Aston Martin - New (to order)
          TUBE ASSEMBLY, WINDSCREEN WASH FRONT Genuine Aston Martin - Used In stock
          # 3
          MPN: 702518
          CLIP, 8.0X11 PIPE EDGE
          from £0.48
          from £0.48
          CLIP, 8X11 Genuine Aston Martin - New (to order)
          # 4
          MPN: 4G43-65-10059-PK
          CLIP, FIRTREE 5X6.5X2
          Pack of 100
          from £39.48
          from £39.48
          CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
          # 5
          MPN: 701617
          CLIP, 7X6X2
          from £0.48
          from £0.48
          CLIP, 7X6X2 Genuine Aston Martin - New (to order)
