011604-30 - Headlamp Wash

Aston Martin V8 Vantage (2009) Headlamp Wash Parts Diagram

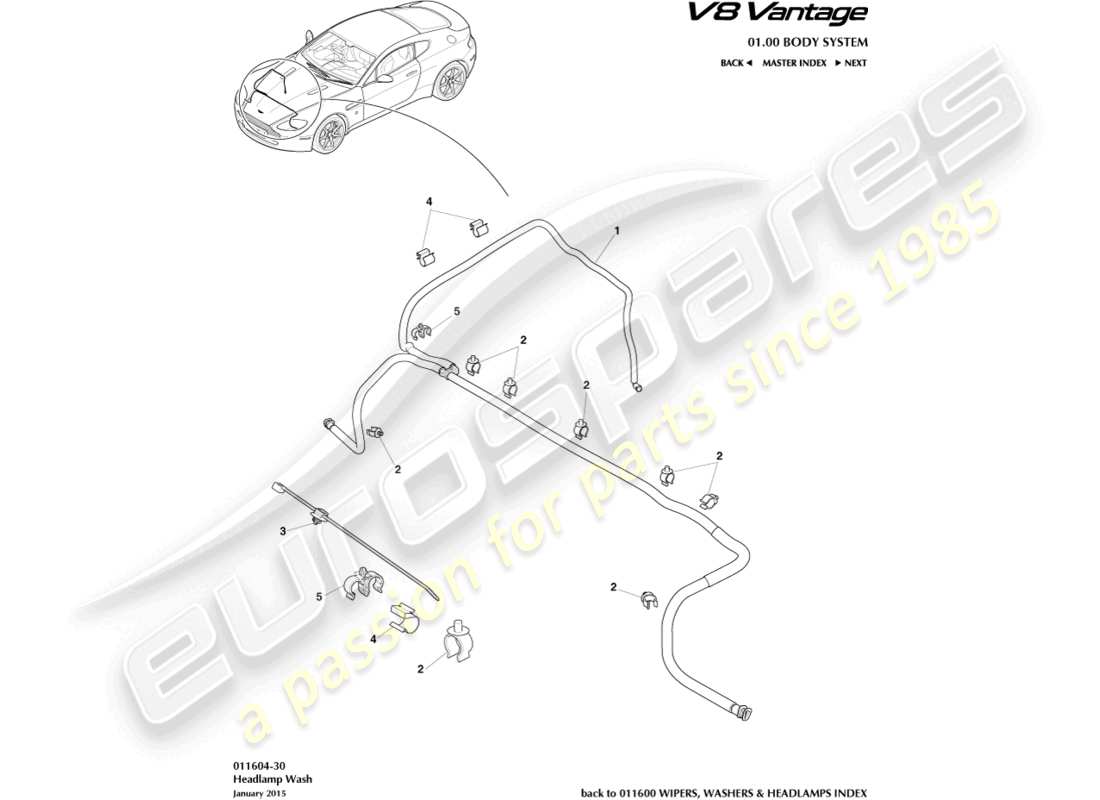

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-13C100-AC
          TUBE ASSEMBLY, HEADLAMP WASH
          Up to 10MY
          TUBE ASSEMBLY, HEADLAMP WASH Genuine Aston Martin - New (to order)
          # 1
          MPN: 6G33-13C100-BA
          TUBE ASSEMBLY, HEADLAMP WASH
          FROM 10MY
          from £94.12
          from £94.12
          TUBE ASSEMBLY, HEADLAMP WASH Genuine Aston Martin - New (to order)
          # 2
          MPN: 701572
          CLIP, TUBE, 14MM DIA
          from £0.72
          from £0.72
          CLIP TUBE DIAMETER 14MM Genuine Aston Martin - New (to order)
          # 2
          MPN: 701181
          CLIP, 16 X 6.5 X 1.5-6
          from £1.85
          from £1.85
          CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
          # 3
          MPN: 4G43-619B00-AA
          TIE WRAP, FIR TREE, 200MM X 4.6MM
          from £0.47
          from £0.47
          TIE WRAP, FIR TREE, 200MM X 4.6MM Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-17Z606-AA
          CLIP
          from £0.47
          from £0.47
          CLIP 13.5X15 Genuine Aston Martin - New (to order)
          # 5
          MPN: 702519
          DOUBLE CLIP - 13.5/13.5X6.5
          from £1.60
          from £1.60
          DOUBLE CLIP - 13.5/13.5X6.5 Genuine Aston Martin - New (to order)
