aston martin v8 vantage (2009) roof opening trim parts diagram

011703-B3 - Roof Opening Trim

Aston Martin V8 Vantage (2009) Roof Opening Trim Parts Diagram

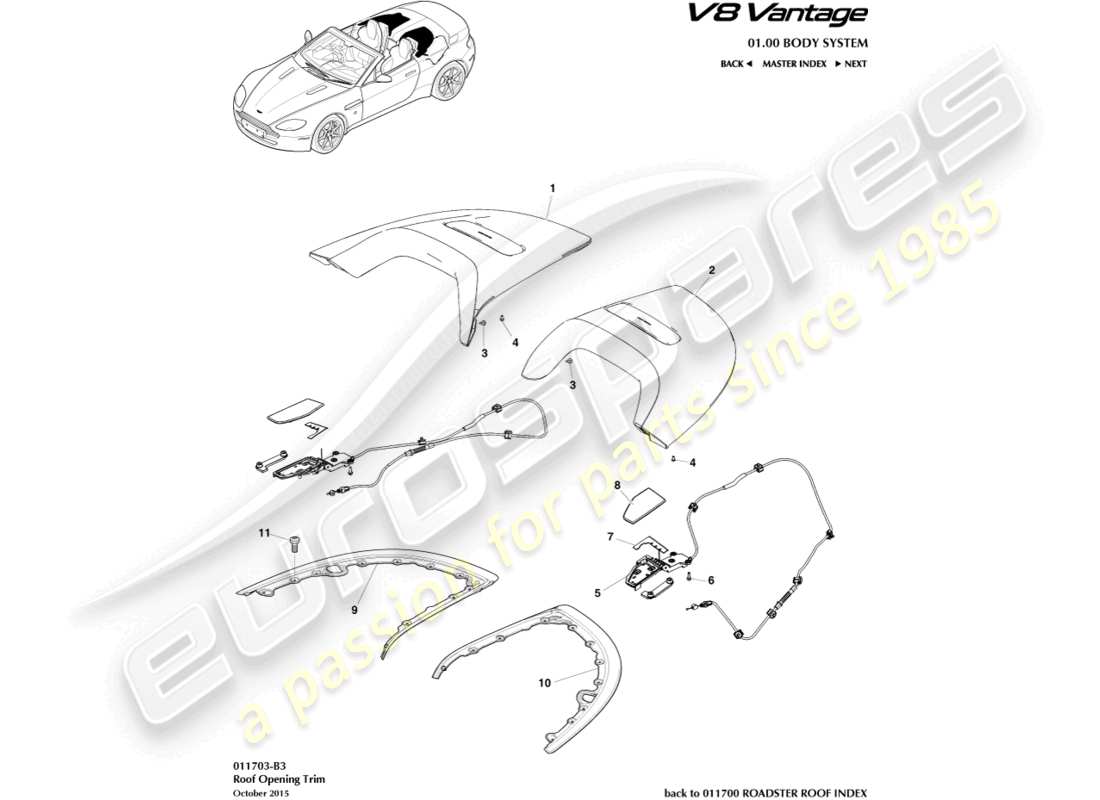

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 6G33-L546A54-ALW
                        COVER ASSY, FOLDING ROOF STOWAGE RH
                        from £932.87
                        from £932.87
                        COVER ASSEMBLY, FOLDING ROOF STOWAGE, RH Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 6G33-L546A55-ALW
                        COVER ASSY, FOLDING ROOF STOWAGE LH
                        from £932.87
                        from £932.87
                        COVER ASSEMBLY, FOLDING ROOF STOWAGE, LH Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 701157
                        SCREW, ST4X16 LRG WSHR HD
                        from £0.47
                        from £0.47
                        SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 6G33-L290E09-BB
                        FLAP ASSY, LH
                        from £157.73
                        from £157.73
                        FLAP ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 6G33-L290E08-BB
                        FLAP ASSY, RH
                        from £157.73
                        from £157.73
                        FLAP ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 700109
                        SCREW, M5X16 HEX FLG HD
                        from £0.79
                        from £0.79
                        SCREW M5 X 16 HEX Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 6G33-L519C65-AC
                        SEAL, B FLAP LH
                        from £20.69
                        from £20.69
                        SEAL, FLAP, LH Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 6G33-L519C64-AC
                        SEAL, B FLAP RH
                        from £20.69
                        from £20.69
                        SEAL, FLAP, RH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 6G33-L21284-ADW
                        COVER, FLAP ASSY, LH
                        from £733.89
                        from £733.89
                        COVER, FLAP ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 6G33-L21285-ADW
                        COVER, FLAP ASSY, RH
                        from £733.89
                        from £733.89
                        COVER, FLAP ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 6G33-L53984-AC
                        MOULDING, TONNEAU, RH, ROADSTER
                        from £390.17
                        from £390.17
                        MOULDING, TONNEAU, RH, ROADSTER Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 6G33-L53985-AC
                        MOULDING, TONNEAU, LH, ROADSTER
                        from £390.17
                        from £390.17
                        MOULDING, TONNEAU, LH, ROADSTER Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 702084
                        SCREW, M5X12MM
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
