aston martin v8 vantage (2009) front bumper armature parts diagram

011901-30 - Front Bumper Armature

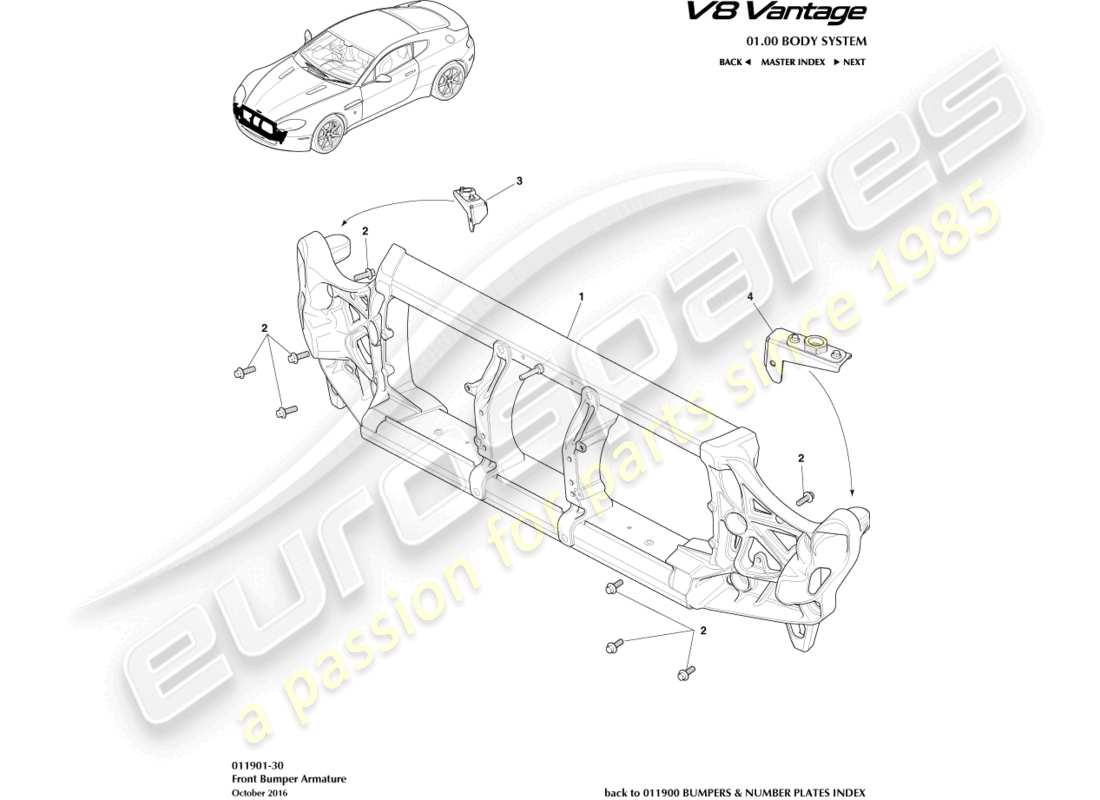

Aston Martin V8 Vantage (2009) Front Bumper Armature Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: P0BG33-17757-BA
    BUMPER BEAM ASSEMBLY, FRONT
    from £1,419.09
    from £1,419.09
    BUMPER BEAM, FRONT ASSEMBLY Genuine Aston Martin - New (to order)
    # 1
    MPN: HG3Y-17757-AA
    BUMPER BEAM ASSEMBLY, FRONT
    GT8
    from £2,142.82
    from £2,142.82
    BUMPER BEAM ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
    # 2
    MPN: 703120
    SCREW, M8X25
    from £3.45
    from £3.45
    SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
    INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
    # 3
    MPN: GD2Y-13068-AA
    BRACKET, HEADLAMP MOUNT
    RH, GT8
    from £257.85
    from £257.85
    BRACKET, HEADLAMP MOUNT Genuine Aston Martin - New (to order)
    # 4
    MPN: GD2Y-13069-AA
    BRACKET, HEADLAMP MOUNT
    LH, GT8
    from £257.85
    from £257.85
    BRACKET, HEADLAMP MOUNT Genuine Aston Martin - New (to order)
