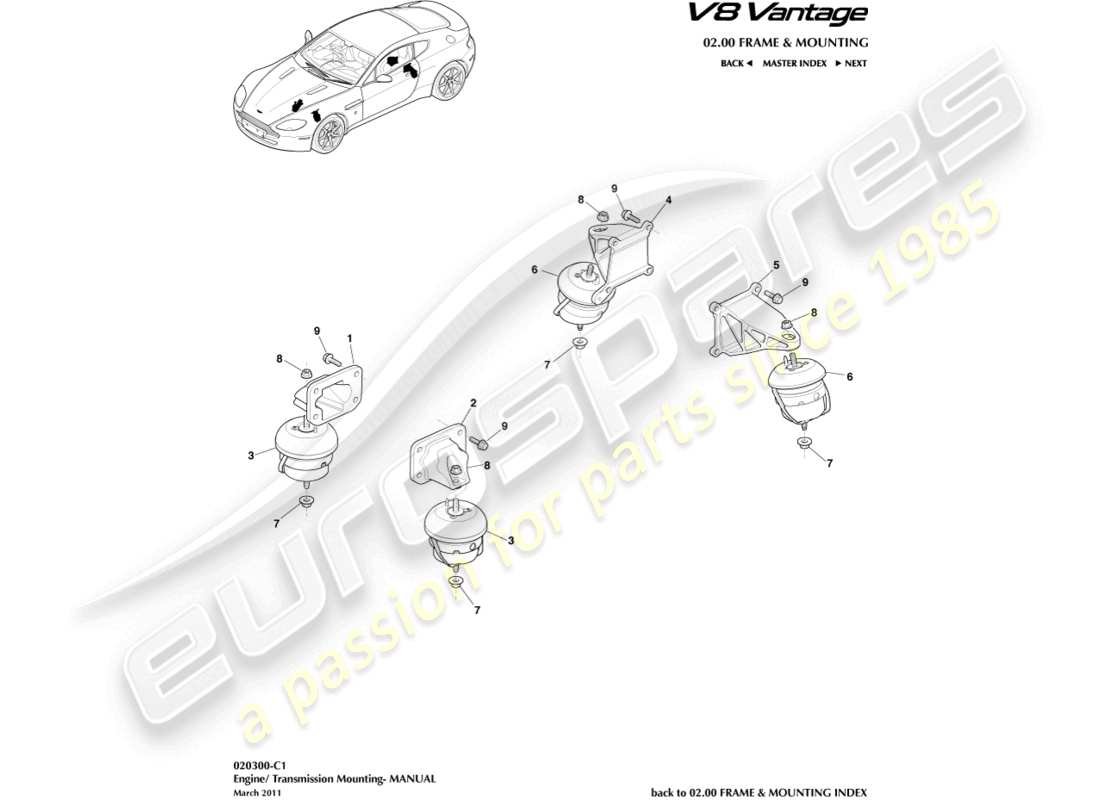

020300-C1 - Engine Mountings

Aston Martin V8 Vantage (2009) Engine Mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-6030-AC
          BRACKET, ENG MOUNT, RHS
          from £52.39
          from £52.39
          BRACKET, ENG MOUNT, RHS Genuine Aston Martin - New (to order)
          BRACKET, ENG MOUNT, RHS Genuine Aston Martin - Used In stock
          # 2
          MPN: 6G33-6031-AB
          BRACKET, ENG MOUNT, LHS
          from £42.71
          from £42.71
          BRACKET, ENG MOUNT, LHS Genuine Aston Martin - New (to order)
          BRACKET, ENG MOUNT, LHS Genuine Aston Martin - Used In stock
          # 3
          MPN: 6G33-6A003-AD
          ISOLATOR ASSY, ENGINE HYDRAMOUNT
          Coupe, 12.25MY MANUAL Coupe
          from £431.83
          from £431.83
          ISOLATOR ASSEMBLY, ENGINE HYDRAMOUNT Genuine Aston Martin - New (to order)
          ISOLATOR ASSEMBLY, ENGINE HYDRAMOUNT Genuine Aston Martin - Used In stock
          # 3
          MPN: 6G33-6A003-BC
          ISOLATOR ASSY, ENGINE HYDRAMOUNT
          Roadster, V8S/ 12.25MY ASM / 12.25MY MANUAL Roadster
          from £203.24
          from £203.24
          ISOLATOR ASSEMBLY, ENGINE HYDRAMOUNT Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-7M125-EA
          BRACKET, TO TRANSMISSION LH
          from £50.09
          from £50.09
          Genuine Aston Martin (no longer available to order)
          BRACKET, TO TRANSMISSION LH Genuine Aston Martin - Used In stock
          # 5
          MPN: 6G33-7M125-FA
          BRACKET, TO TRANSMISSION RH
          from £50.09
          from £50.09
          Genuine Aston Martin (no longer available to order)
          BRACKET, TO TRANSMISSION RH Genuine Aston Martin - Used In stock
          # 6
          MPN: BG33-6068-AA
          ISOLATOR ASSY, TRANS, REAR, HYDRAMOUNT
          V8S/ 12.25MY
          from £171.04
          from £171.04
          ISOLATOR ASSEMBLY, TRANS, REAR, HYDRAMOUNT Genuine Aston Martin - New (to order)
          # 6
          MPN: 6G33-6068-AD
          ISOLATOR ASSY, TRANS, REAR, HYDRAMOUNT
          V8 Coupe upto 12.25MY
          from £772.36
          from £772.36
          ISOLATOR ASSEMBLY, TRANS, REAR, HYDRAMOUNT Genuine Aston Martin - New (to order)
          # 6
          MPN: 6G33-6068-BB
          ISOLATOR ASSY, TRANS, REAR, HYDRAMOUNT
          V8 Roadster upto 12.25MY
          from £321.01
          from £321.01
          ISOLATOR ASSEMBLY, TRANS, REAR, HYDRAMOUNT Genuine Aston Martin - New (to order)
          # 7
          MPN: 703751
          NUT AND WASHER, M10
          1 per isolator
          from £1.55
          from £1.55
          NUT AND WASHER, M10 Genuine Aston Martin - New (to order)
          # 8
          MPN: 703167
          NUT, M10, MOUNTING TO BRACKET
          1 per isolator
          from £1.00
          from £1.00
          NUT M10 HEX FLNG Genuine Aston Martin - New (to order)
          WASHER Genuine Ferrari Part - New (to order)
          # 9
          MPN: 702210
          BOLT, M10X30, BRACKET TO ENGINE
          4 per bracket
          Supersession
          Supersession
          Genuine Aston Martin (no longer available to order)
          # 9
          MPN: 705355
          BOLT, M10X25, BRACKET TO TRANSMISSION
          4 per bracket
          from £0.47
          from £0.47
          BOLT, M10X25, BRACKET TO TRANSMISSION Genuine Aston Martin - New (to order)
