aston martin v8 vantage (2009) engine structure parts diagram

030100-E1-1 - Engine Structure

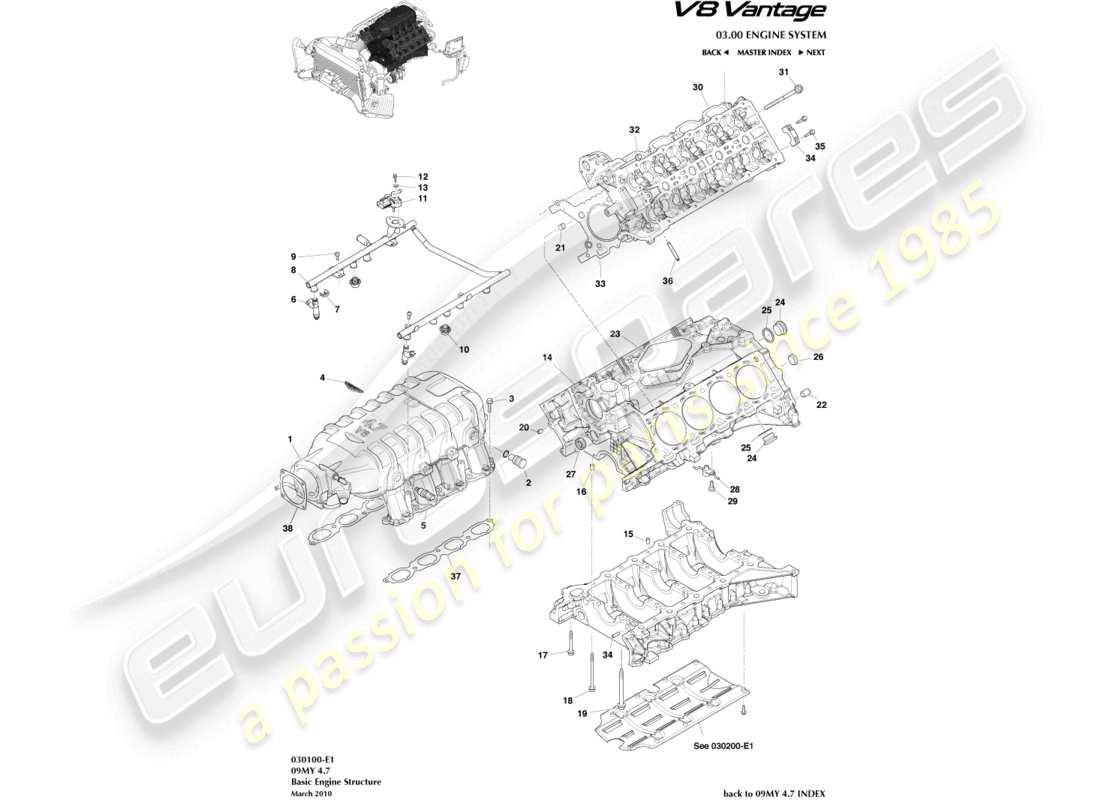

Aston Martin V8 Vantage (2009) Engine Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Key
                                                                      Price
                                                                      # -
                                                                      MPN: 9G33-6L084-AA
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW
                                                                      Up to 11MY
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW Genuine Aston Martin - New (to order)
                                                                      # -
                                                                      MPN: BG33-6L084-BA
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW
                                                                      From 11MY Except V8S/N430/GT
                                                                      from £18,426.27
                                                                      from £18,426.27
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW Genuine Aston Martin - New (to order)
                                                                      # -
                                                                      MPN: BG33-6L084-AA
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW
                                                                      V8S/N430/GT
                                                                      from £19,592.77
                                                                      from £19,592.77
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW Genuine Aston Martin - New (to order)
                                                                      # -
                                                                      MPN: HG33-6L084-AA
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW
                                                                      V8 and GT8. 17MY on
                                                                      from £17,836.79
                                                                      from £17,836.79
                                                                      ENGINE ASSEMBLY, 4.7 V8, NEW Genuine Aston Martin - New (to order)
                                                                      # -
                                                                      MPN: 091911
                                                                      ENGINE ASSEMBLY, 4.7 V8, REMANUFACTURED
                                                                      From 09MY Please refer to SPL-03-1088_EN-GB for more details
                                                                      ENGINE ASSEMBLY, 4.7 V8, REMANUFACTURED Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: 9G33-9424-AA
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7
                                                                      Up to 11MY, with EGR Connection, Incl Parts 5 to 13
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7 Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: BG33-9424-DA
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7
                                                                      From 11MY, AM14 (420BHP/Plain Airbox), Incl Parts 5 to 13
                                                                      from £2,404.06
                                                                      from £2,404.06
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7 Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: BG33-9424-CA
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7
                                                                      From 11MY, AM15 (430BHP/Valved Airbox). Incl Parts 5 to 13
                                                                      MANIFOLD ASSEMBLY, INTAKE, 4.7 Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: 9G33-9C663-CB
                                                                      MANIFOLD, INTAKE, UPPER 4.7
                                                                      Up to 11MY
                                                                      MANIFOLD, INTAKE, UPPER 4.7 Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: BG33-9C663-DA
                                                                      MANIFOLD, INTAKE, UPPER 4.7
                                                                      From 11MY, AM14 (420BHP/Plain Airbox)
                                                                      from £2,400.17
                                                                      from £2,400.17
                                                                      MANIFOLD, INTAKE, UPPER 4.7 Genuine Aston Martin - New (to order)
                                                                      # 1
                                                                      MPN: BG33-9C663-CB
                                                                      MANIFOLD, INTAKE, UPPER 4.7
                                                                      From 11MY, AM15 (430BHP/Valved Airbox)
                                                                      from £2,200.84
                                                                      from £2,200.84
                                                                      MANIFOLD, INTAKE, UPPER 4.7 Genuine Aston Martin - New (to order)
                                                                      # 2
                                                                      MPN: 6G43-12-10060
                                                                      PIPE, STUB, MANIFOLD UPPER 15MM
                                                                      from £24.94
                                                                      from £24.94
                                                                      PCV BREATHER STUB Genuine Aston Martin - New (to order)
                                                                      # 3
                                                                      MPN: 702687
                                                                      SCREW, M8X30
                                                                      BOLT M8 X 30 Genuine Aston Martin - New (to order)
                                                                      # 4
                                                                      MPN: 4G43-001B46-BB
                                                                      BADGE, ASTON WINGS
                                                                      from £67.89
                                                                      from £67.89
                                                                      MANIFOLD BADGE Genuine Aston Martin - New (to order)
                                                                      # 5
                                                                      MPN: 6G43-08-10064
                                                                      SENSOR, AIR CHARGE TEMPERATURE
                                                                      SENSOR, AIR CHARGING TEMPERATURE Genuine Aston Martin - New (to order)
                                                                      # 6
                                                                      MPN: 6G33-9F593-AA
                                                                      INJECTOR ASSY, FUEL
                                                                      from £40.41
                                                                      from £40.41
                                                                      INJECTOR ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                                                      # 6
                                                                      MPN: 6G43-08-11260-PK
                                                                      O-RING, INJECTOR, FUEL, LOWER
                                                                      Packs of 8
                                                                      from £5.84
                                                                      from £5.84
                                                                      O-RING, INJECTOR, FUEL, LOWER (GREEN - Pack of 8) Genuine Aston Martin - New In stock
                                                                      Alternative (#6G43-08-11260) O-RING, FUEL INJECTOR TO MANIFOLD (GREEN - Single) Genuine Aston Martin - New In stock
                                                                      # 7
                                                                      MPN: 6G43-34-10062
                                                                      CLIP, FUEL INJECTOR
                                                                      from £7.93
                                                                      from £7.93
                                                                      This part replaces part number 6R83-9N976-AA
                                                                      CLIP, FUEL INJECTOR Genuine Aston Martin - New (to order)
                                                                      # 8
                                                                      MPN: 6G33-9S441-AF
                                                                      MANIFOLD ASSY, FUEL INJECTION (FUEL RAIL)
                                                                      from £1,991.45
                                                                      from £1,991.45
                                                                      This part replaces part number 2W93-9F775-AA
                                                                      MANIFOLD ASSEMBLY, FUEL INJECTION (FUEL RAIL) Genuine Aston Martin - New (to order)
                                                                      # 9
                                                                      MPN: 701553
                                                                      SCREW, M6 X 16, FUEL RAIL TO MANIFOLD
                                                                      from £0.47
                                                                      from £0.47
                                                                      SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                                                      # 10
                                                                      MPN: 2W93-9F775-AA
                                                                      DAMPENER ASSY, INJECTION PULSE
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Aston Martin (no longer available to order)
                                                                      # 11
                                                                      MPN: 6G43-34-10063
                                                                      SENSOR, FUEL PRESSURE
                                                                      from £166.09
                                                                      from £166.09
                                                                      SNSOR ASSEMBLY TEM/PRESS Genuine Aston Martin - New (to order)
                                                                      # 12
                                                                      MPN: 700107
                                                                      SCREW, FLG, M5X20, FUEL PRESSURE SENSOR
                                                                      from £1.42
                                                                      from £1.42
                                                                      SCREW, FLANGE , M5X20, FUEL PRESSURE SENSOR Genuine Aston Martin - New (to order)
                                                                      # 13
                                                                      MPN: 700384
                                                                      WASHER, M5, FUEL PRESSURE SENSOR
                                                                      WASHER, M5 (PT OF FIXING KIT) Genuine Aston Martin - New (to order)
                                                                      # 14
                                                                      MPN: 9G33-6L074-AC
                                                                      CYLINDER BLOCK, CAP AND BEDPLATE ASSY
                                                                      from £8,699.53
                                                                      from £8,699.53
                                                                      CYLINDER BLOCK, CAP AND BEDPLATE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                      # 14
                                                                      MPN: 9G33-6055-AB
                                                                      SLEEVE, CYLINDER BORE
                                                                      SLEEVE, CYLINDER BORE Genuine Aston Martin - New (to order)
                                                                      # 15
                                                                      MPN: 6G43-01-10070
                                                                      DOWEL, BEDPLATE TO CYL. BLOCK
                                                                      from £0.47
                                                                      from £0.47
                                                                      DWL CYLINDER BLK TO FRONT Genuine Aston Martin - New (to order)
                                                                      # 16
                                                                      MPN: 6G43-01-10113
                                                                      DOWEL, RING
                                                                      from £12.66
                                                                      from £12.66
                                                                      DOWEL, RING Genuine Aston Martin - New (to order)
                                                                      # 17
                                                                      MPN: 6G43-01-10114
                                                                      BOLT, M8X60, BEDPLATE TO CYL. BLOCK
                                                                      from £1.54
                                                                      from £1.54
                                                                      BOLT, M8X60, BEDPLATE TO CYLINDER BLOCK Genuine Aston Martin - New (to order)
                                                                      # 18
                                                                      MPN: 6G43-01-10075
                                                                      BOLT, M8X110, OUTER BHD TO CYL. BLOCK
                                                                      from £9.65
                                                                      from £9.65
                                                                      BOLT, M8X110, OUTER BULKHEAD Genuine Aston Martin - New (to order)
                                                                      # 19
                                                                      MPN: 6G43-01-10112
                                                                      BOLT, M10X114, INNER BHD TO CYL. BLOCK
                                                                      from £7.09
                                                                      from £7.09
                                                                      BOLT, M10X114, INNER BULKHEAD Genuine Aston Martin - New (to order)
                                                                      # 20
                                                                      MPN: 6G43-01-10070
                                                                      DOWEL, CYLINDER BLOCK TO FRONT COVER
                                                                      from £0.47
                                                                      from £0.47
                                                                      DWL CYLINDER BLK TO FRONT Genuine Aston Martin - New (to order)
                                                                      # 21
                                                                      MPN: 6G43-01-10067
                                                                      DOWEL, CYLINDER HEAD LOCATION
                                                                      from £0.47
                                                                      from £0.47
                                                                      DOWEL, CYLINDER HEAD LOCATION Genuine Aston Martin - New (to order)
                                                                      # 22
                                                                      MPN: 6G43-01-10118
                                                                      DOWEL
                                                                      from £18.78
                                                                      from £18.78
                                                                      DOWEL Genuine Aston Martin - New (to order)
                                                                      # 23
                                                                      MPN: 6G43-01-10068
                                                                      COVER, BLOCK VALLEY
                                                                      from £14.03
                                                                      from £14.03
                                                                      COVER, BLOCK VALLEY Genuine Aston Martin - New (to order)
                                                                      # 24
                                                                      MPN: 702529
                                                                      PLUG, FLG, M30
                                                                      from £2.87
                                                                      from £2.87
                                                                      PLUG, FLANGE , M30 Genuine Aston Martin - New (to order)
                                                                      # 25
                                                                      MPN: 702530
                                                                      SEAL, ENG BLOCK TO PLUG
                                                                      SEAL, ENG BLOCK TO PLUG Genuine Aston Martin - New (to order)
                                                                      # 26
                                                                      MPN: 702531
                                                                      PLUG, CORE, DIA 28
                                                                      from £0.47
                                                                      from £0.47
                                                                      PLUG, CORE, DIAMETER 28 Genuine Aston Martin - New (to order)
                                                                      # 27
                                                                      MPN: 702528
                                                                      PLUG, M30X1.5
                                                                      from £1.16
                                                                      from £1.16
                                                                      PLUG, M30X1.5 Genuine Aston Martin - New (to order)
                                                                      # 28
                                                                      MPN: 6G43-04-10077
                                                                      JET, PISTON COOLING
                                                                      from £11.60
                                                                      from £11.60
                                                                      Valve Assembly, Engine Oil Cool Genuine Aston Martin - New (to order)
                                                                      # 29
                                                                      MPN: 702536
                                                                      SCREW, PAN HD
                                                                      from £0.47
                                                                      from £0.47
                                                                      SCREW, PAN HD Genuine Aston Martin - New (to order)
                                                                      # 29
                                                                      MPN: 9G33-6049-AA
                                                                      CYLINDER HEAD, RH
                                                                      Includes valve seats, valve guides and camshaft caps only
                                                                      from £5,707.15
                                                                      from £5,707.15
                                                                      CYLINDER HEAD, RH Genuine Aston Martin - New (to order)
                                                                      # 30
                                                                      MPN: 9G33-6050-AA
                                                                      CYLINDER HEAD, LH
                                                                      Includes valve seats, valve guides and camshaft caps only
                                                                      from £5,707.15
                                                                      from £5,707.15
                                                                      CYLINDER HEAD, LH Genuine Aston Martin - New (to order)
                                                                      # 31
                                                                      MPN: 6G43-06-10353
                                                                      BOLT, CYLINDER HEAD
                                                                      from £1.68
                                                                      from £1.68
                                                                      BOLT, CYLINDER HEAD Genuine Aston Martin - New (to order)
                                                                      # 32
                                                                      MPN: 702683
                                                                      BOLT, M8X90 HEX FLG
                                                                      from £4.94
                                                                      from £4.94
                                                                      BOLT, M8X90 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                      # 33
                                                                      MPN: 9G33-6083-AC
                                                                      GASKET, CYLINDER HEAD, LH
                                                                      from £171.04
                                                                      from £171.04
                                                                      GASKET, CYLINDER HEAD, LH Genuine Aston Martin - New (to order)
                                                                      # 33
                                                                      MPN: 9G33-6051-AC
                                                                      GASKET, CYLINDER HEAD, RH
                                                                      from £171.04
                                                                      from £171.04
                                                                      GASKET, CYLINDER HEAD, RH Genuine Aston Martin - New (to order)
                                                                      # 34
                                                                      MPN: 6G43-06-10065
                                                                      BEARING, CAP, CAMSHAFT
                                                                      from £2.85
                                                                      from £2.85
                                                                      BEARING, CAP, CAMSHAFT, LH Genuine Aston Martin - New (to order)
                                                                      # 35
                                                                      MPN: 702525
                                                                      BOLT, M6X35
                                                                      BOLT, M6X35 Genuine Aston Martin - New (to order)
                                                                      # 36
                                                                      MPN: 702527
                                                                      STUD, M8X16, M8X20 EXHAUST MANIFOLD
                                                                      from £2.55
                                                                      from £2.55
                                                                      STUD - EX MAN Genuine Aston Martin - New (to order)
                                                                      # 37
                                                                      MPN: 6G33-9P851-AB-PK
                                                                      GASKET, INTAKE MANIFOLD
                                                                      Pack of 2
                                                                      from £16.13
                                                                      from £16.13
                                                                      GASKET, INTAKE MANIFOLD Genuine Aston Martin - New (to order)
                                                                      # 38
                                                                      MPN: 6G33-9F809-AA
                                                                      GASKET, THROTTLE BODY AIR INLET
                                                                      from £4.67
                                                                      from £4.67
                                                                      GASKET, THROTTLE BODY AIR INLET Genuine Aston Martin - New (to order)
                                                                      # 39
                                                                      MPN: 702681
                                                                      PIN, SPRING SLOT
                                                                      from £0.47
                                                                      from £0.47
                                                                      PIN, SPRING SLOT Genuine Aston Martin - New (to order)
