aston martin v8 vantage (2009) engine lubrication, line fit parts diagram

030200-S1-1 - Engine Lubrication, Line Fit

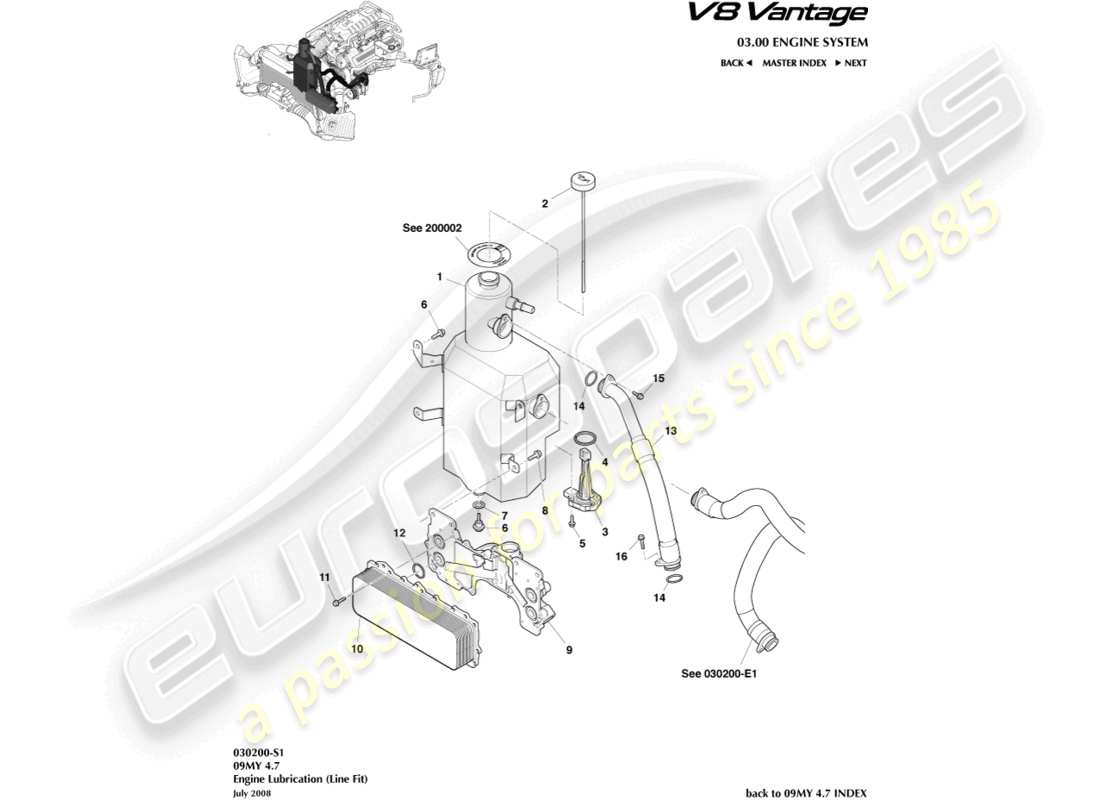

Aston Martin V8 Vantage (2009) Engine Lubrication, Line Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 9G33-6C702-BC
                TANK ASSEMBLY, OIL COOLER
                Includes items 2, 6 and 7
                TANK ASSEMBLY, OIL COOLER Genuine Aston Martin - New (to order)
                # 2
                MPN: 9G33-6766-BC
                CAP ASSEMBLY, OIL COOLER TANK
                from £122.48
                from £122.48
                CAP ASSEMBLY, OIL COOLER TANK Genuine Aston Martin - New (to order)
                # 3
                MPN: 4G43-04-10972
                SENSOR ASSEMBLY, ENGINE LOW OIL
                from £60.66
                from £60.66
                SNSR ASSY-ENG LOWOIL Genuine Aston Martin - New (to order)
                # 5
                MPN: 700607
                SCREW, FLG, M6X20MM
                from £0.47
                from £0.47
                SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                # 6
                MPN: 6G33-6730-AA
                PLUG, OIL DRAIN
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 7
                MPN: 6G33-9N228-AA-PK
                WASHER, DRAIN, OIL PLUG
                Pack of 10
                from £18.15
                from £18.15
                WASHER, DRAIN, OIL PLUG Genuine Aston Martin - New (to order)
                # 8
                MPN: 703120
                SCREW M8X25MM HEX FLG HD
                from £3.45
                from £3.45
                SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                # 9
                MPN: 9G33-8C656-CC
                ADAPTOR, OIL COOLER
                When replacing this part, also order 15x item 11 as these have self-cutting threads.
                from £461.89
                from £461.89
                ADAPTOR, OIL COOLER Genuine Aston Martin - New (to order)
                # 10
                MPN: 9G33-6A642-AB
                OIL COOLER ASSEMBLY
                from £1,064.34
                from £1,064.34
                OIL COOLER ASSEMBLY Genuine Aston Martin - New (to order)
                # 11
                MPN: 704075
                SCREW, FLG, M6X25MM
                OIL COOLER
                from £0.47
                from £0.47
                SCREW M6X25 HEX FLNG Genuine Aston Martin - New (to order)
                # 12
                MPN: 9G33-61J05-AA
                SEAL, O RING
                OIL COOLER
                from £3.86
                from £3.86
                SEAL, OIL SCAVENGE PUMP OUTLET Genuine Aston Martin - New (to order)
                # 13
                MPN: 9G33-6B748-AC
                PIPE ASSEMBLY, OIL COOLER OUTLET
                from £498.96
                from £498.96
                PIPE ASSEMBLY, OIL COOLER OUTLET Genuine Aston Martin - New (to order)
                # 14
                MPN: 9G33-61J05-AA
                SEAL, O RING
                Oil Cooler Outlet Pipe
                from £3.86
                from £3.86
                SEAL, OIL SCAVENGE PUMP OUTLET Genuine Aston Martin - New (to order)
                # 15
                MPN: W500014-S442
                SCREW, FLG, M6X20MM
                Outlet Tube to oil tank
                SCREW, FLANGE , M6X20MM Genuine Aston Martin - New (to order)
                # 16
                MPN: W505256-S442
                SCREW, FLG, M6X25MM
                Outlet Tube to Diverter
                SCREW, FLANGE , M6X25MM Genuine Aston Martin - New (to order)
