aston martin v8 vantage (2009) engine lubrication, line fit parts diagram

030200-S1 - Engine Lubrication, Line Fit

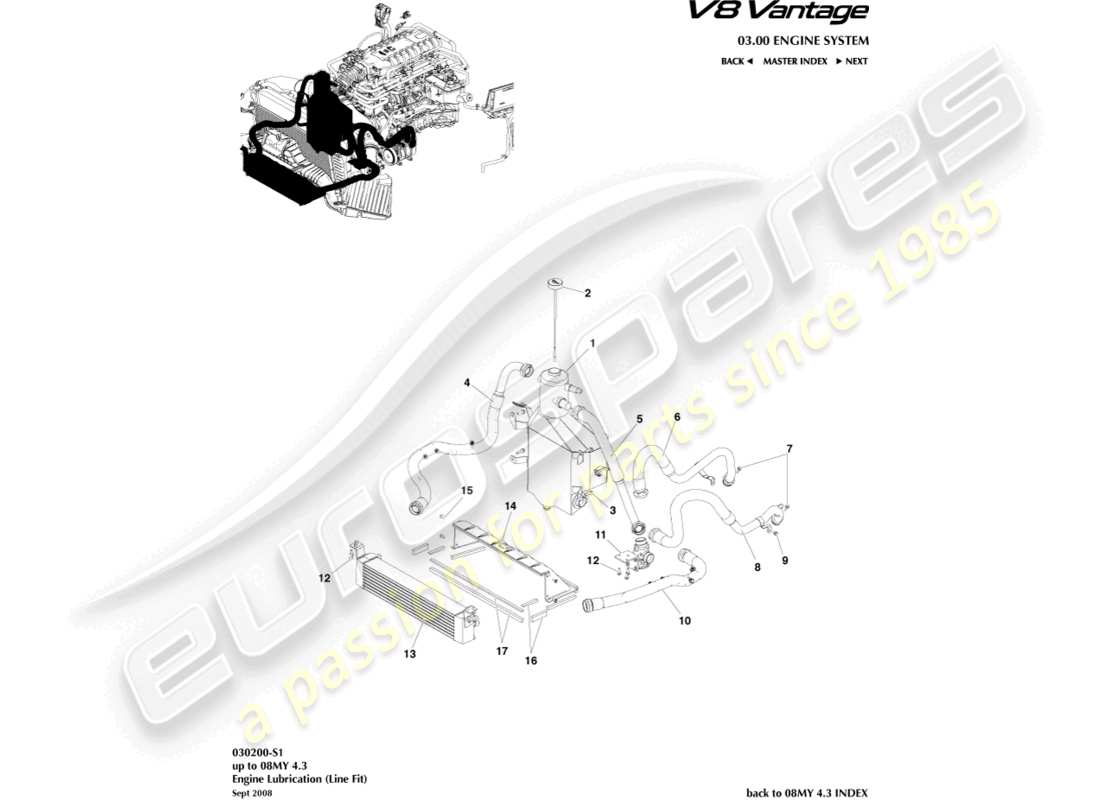

Aston Martin V8 Vantage (2009) Engine Lubrication, Line Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 6G33-6C702-AC
                                      TANK ASSY, OIL COOLER
                                      from £1,121.49
                                      from £1,121.49
                                      TANK ASSEMBLY, OIL COOLER Genuine Aston Martin - New (to order)
                                      TANK ASSEMBLY, OIL COOLER Genuine Aston Martin - Used In stock
                                      # 1
                                      MPN: 6G33-6L688-AC
                                      TANK BODY, OIL COOLER
                                      TANK BODY, OIL COOLER Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 6G33-6766-AB
                                      CAP ASSY, OIL COOLER TANK
                                      from £52.46
                                      from £52.46
                                      CAP ASSEMBLY, OIL COOLER TANK Genuine Aston Martin - New (to order)
                                      CAP ASSEMBLY, OIL COOLER TANK Genuine Aston Martin - Used In stock
                                      # -
                                      -
                                      DRAIN PLUG, OIL TANK
                                      # -
                                      -
                                      WASHER, DRAIN PLUG
                                      # 3
                                      MPN: 703120
                                      SCREW, M8 X 25
                                      from £3.45
                                      from £3.45
                                      SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                      INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                                      # 4
                                      MPN: 6G33-6B748-AB
                                      PIPE ASSY, OIL COOLER TANK
                                      from £275.47
                                      from £275.47
                                      PIPE ASSEMBLY, OIL COOLER TANK Genuine Aston Martin - New (to order)
                                      PIPE ASSEMBLY, OIL COOLER TANK Genuine Aston Martin - Used In stock
                                      # 5
                                      MPN: 6G33-6K622-AB
                                      TUBE ASSY, OIL THERMOSTAT TO TANK
                                      from £94.19
                                      from £94.19
                                      TUBE ASSEMBLY, OIL THERMOSTAT TO TANK Genuine Aston Martin - New (to order)
                                      TUBE ASSEMBLY, OIL THERMOSTAT TO TANK Genuine Aston Martin - Used In stock
                                      # 6
                                      MPN: 6G33-9N778-AC
                                      TUBE ASSY, OIL PUMP OUTLET
                                      from £618.04
                                      from £618.04
                                      TUBE ASSEMBLY, OIL PUMP OUTLET Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 702542
                                      SCREW, M6 X 20
                                      from £0.77
                                      from £0.77
                                      BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 6G33-6617-AC
                                      TUBE ASSY, OIL PUMP INLET
                                      from £391.95
                                      from £391.95
                                      TUBE ASSEMBLY, OIL PUMP INLET Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 702535
                                      SCREW, M6 X 12
                                      from £1.27
                                      from £1.27
                                      BOLT M6X12 HF 8 Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 6G33-6B747-AB
                                      PIPE ASSY, OIL THERMO COOLER
                                      from £260.53
                                      from £260.53
                                      PIPE ASSEMBLY, OIL THERMO COOLER Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 6G33-6L635-AA
                                      THERMOSTAT, OIL TEMPERATURE
                                      from £741.63
                                      from £741.63
                                      THERMOSTAT, OIL TEMPERATURE Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 703025
                                      SCREW, M6 X 25
                                      from £0.47
                                      from £0.47
                                      SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 6G33-6A642-AB
                                      OIL COOLER ASSY
                                      from £1,089.24
                                      from £1,089.24
                                      Genuine Aston Martin (no longer available to order)
                                      OIL COOLER ASSEMBLY Genuine Aston Martin - Used In stock
                                      # 14
                                      MPN: 6G33-7H460-AC
                                      DUCT, OIL COOLER AIR
                                      from £77.14
                                      from £77.14
                                      DUCT, OIL COOLER AIR Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 4G43-2705-AA
                                      RIVET
                                      from £0.47
                                      from £0.47
                                      RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 6G33-6L654-AA
                                      FOAM
                                      from £0.72
                                      from £0.72
                                      FOAM Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 6G33-6L654-BA
                                      FOAM
                                      from £2.67
                                      from £2.67
                                      FOAM Genuine Aston Martin - New (to order)
