aston martin v8 vantage (2009) engine cooling parts diagram

030300-E1-1 - engine cooling

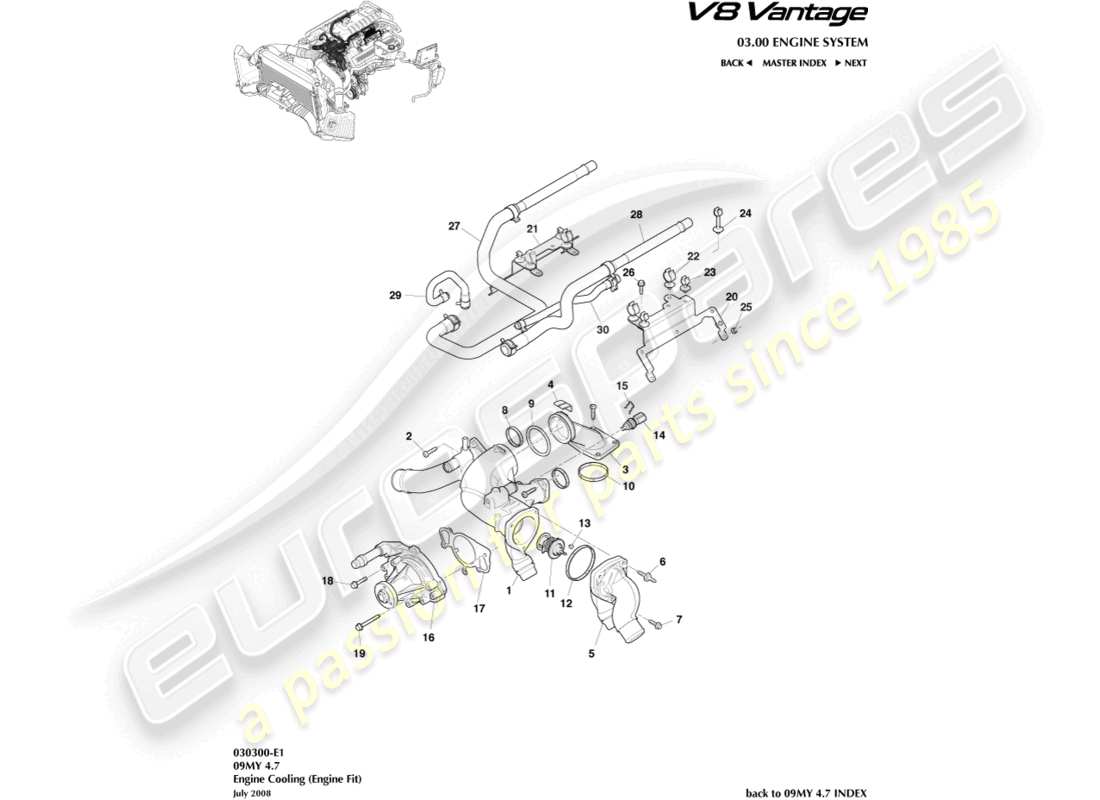

Aston Martin V8 Vantage (2009) Engine Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 6G33-8A520-AK
                                                    MANIFOLD, WATER INLET/OUTLET
                                                    from £503.68
                                                    from £503.68
                                                    MANIFOLD, WATER INLET/OUTLET Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: 702543
                                                    SCREW, M6 X 25
                                                    from £0.47
                                                    from £0.47
                                                    SCREW, M6X25 Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: 6G43-32-10450
                                                    DUCT, WATER
                                                    from £103.36
                                                    from £103.36
                                                    DUCT, WATER Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 6G43-32-10448
                                                    CONNECTOR WATER OUTLET, UPPER
                                                    from £51.19
                                                    from £51.19
                                                    CONNECTOR WATER OUTLET, UPPER Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 702545
                                                    STUD M6 X 15/M6 X 22
                                                    from £17.04
                                                    from £17.04
                                                    STUD, M6X15+M6X22 Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: 702542
                                                    BOLT, M6 X 20
                                                    from £0.77
                                                    from £0.77
                                                    BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                    # 8
                                                    MPN: 6G43-32-10366-PK
                                                    GASKET KIT, WATER OUTLET
                                                    from £38.44
                                                    from £38.44
                                                    GASKET KIT, WATER OUTLET Genuine Aston Martin - New (to order)
                                                    # 9
                                                    MPN: 702730
                                                    O RING
                                                    from £50.51
                                                    from £50.51
                                                    O RING Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: 6G43-32-10451
                                                    GASKET, THERMO HOUSING, FRONT
                                                    from £5.15
                                                    from £5.15
                                                    GASKET, THERMOSTAT HOUSING, FRONT Genuine Aston Martin - New (to order)
                                                    # 11
                                                    MPN: 6G43-32-10449
                                                    THERMOSTAT ASSY, WATER
                                                    from £97.60
                                                    from £97.60
                                                    THERMOSTAT ASSEMBLY, WATER Genuine Aston Martin - New (to order)
                                                    # 12
                                                    MPN: 6G43-32-10310
                                                    SEAL, THERMOSTAT COVER
                                                    from £12.42
                                                    from £12.42
                                                    SEAL, THERMOSTAT COVER Genuine Aston Martin - New (to order)
                                                    # 13
                                                    MPN: 6R83-8594-AA
                                                    VALVE, VENT
                                                    THERMOSTAT COVER
                                                    VALVE, VENT Genuine Aston Martin - New (to order)
                                                    # 14
                                                    MPN: 6G43-37-10447
                                                    Sensor, engine cntrl cool temp
                                                    Sensor, engine cntrl cool temp Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: YL8E-14197-AA
                                                    CLIP, WIRE
                                                    SENSOR
                                                    CLIP, WIRE Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: 9G33-8501-AB
                                                    PUMP ASSY, WATER
                                                    09MY
                                                    Supersession
                                                    Supersession
                                                    Genuine Aston Martin (no longer available to order)
                                                    # 17
                                                    MPN: 6G43-05-10149
                                                    GASKET, WATER PUMP TO BLOCK
                                                    from £1.23
                                                    from £1.23
                                                    GASKET, WATER PUMP TO BLOCK Genuine Aston Martin - New (to order)
                                                    # -
                                                    -
                                                    GASKET, SANDWICH GASKET WITHIN PUMP ASSY
                                                    # 18
                                                    MPN: 702544
                                                    BOLT, FLG, M6 X 50
                                                    from £0.47
                                                    from £0.47
                                                    BOLT, M6X50 Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: 703903
                                                    BOLT, FLG, M6 X 30
                                                    BOLT-M6X30 HF 8 FLANGE Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: 6G33-18N348-AB
                                                    Bracket, heater hose, LH
                                                    Includes items 22, 23, 24
                                                    from £376.77
                                                    from £376.77
                                                    Bracket, heater hose, LH Genuine Aston Martin - New (to order)
                                                    # 21
                                                    MPN: 6G33-18N348-BB
                                                    Bracket, heater hose, RH
                                                    from £19.32
                                                    from £19.32
                                                    Bracket, heater hose, RH Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: 701181
                                                    CLIP
                                                    from £1.85
                                                    from £1.85
                                                    CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: 702569
                                                    CLIP
                                                    from £1.20
                                                    from £1.20
                                                    CLIP, C Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: 702295
                                                    NUT, FLG, M5
                                                    from £0.47
                                                    from £0.47
                                                    NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: 702542
                                                    BOLT, M6 X 20
                                                    from £0.77
                                                    from £0.77
                                                    BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: 6G33-18K579-AD
                                                    HOSE ASSY, HEATER FEED
                                                    from £23.61
                                                    from £23.61
                                                    HOSE, HEATER FEED Genuine Aston Martin - New (to order)
                                                    # -
                                                    -
                                                    CLAMP, 27 X 12 HEAVY DUTY
                                                    # -
                                                    -
                                                    CLAMP, 25 X 12 HEAVY DUTY
                                                    # 28
                                                    MPN: 6G33-18K580-AC
                                                    HOSE ASSY, HEATER RETURN
                                                    from £19.31
                                                    from £19.31
                                                    HOSE ASSEMBLY, HEATER RETURN Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: 6G33-9F813-AC
                                                    HOSE ASSY, THROTTLE FEED
                                                    from £6.04
                                                    from £6.04
                                                    HOSE ASSEMBLY, THROTTLE FEED Genuine Aston Martin - New (to order)
                                                    # -
                                                    -
                                                    CLAMP, 17 X 12 HVY DTY SPR BND
                                                    # -
                                                    -
                                                    CLAMP, 15 X 12 HVY DTY SPR BND
                                                    # 30
                                                    MPN: 6G33-8C362-AA
                                                    HOSE ASSY, ENGINE VENT
                                                    from £6.92
                                                    from £6.92
                                                    HOSE ASSEMBLY, ENGINE VENT Genuine Aston Martin - New (to order)
                                                    # -
                                                    -
                                                    CLAMP, 17 X 15 HVY DTY SPR BND
