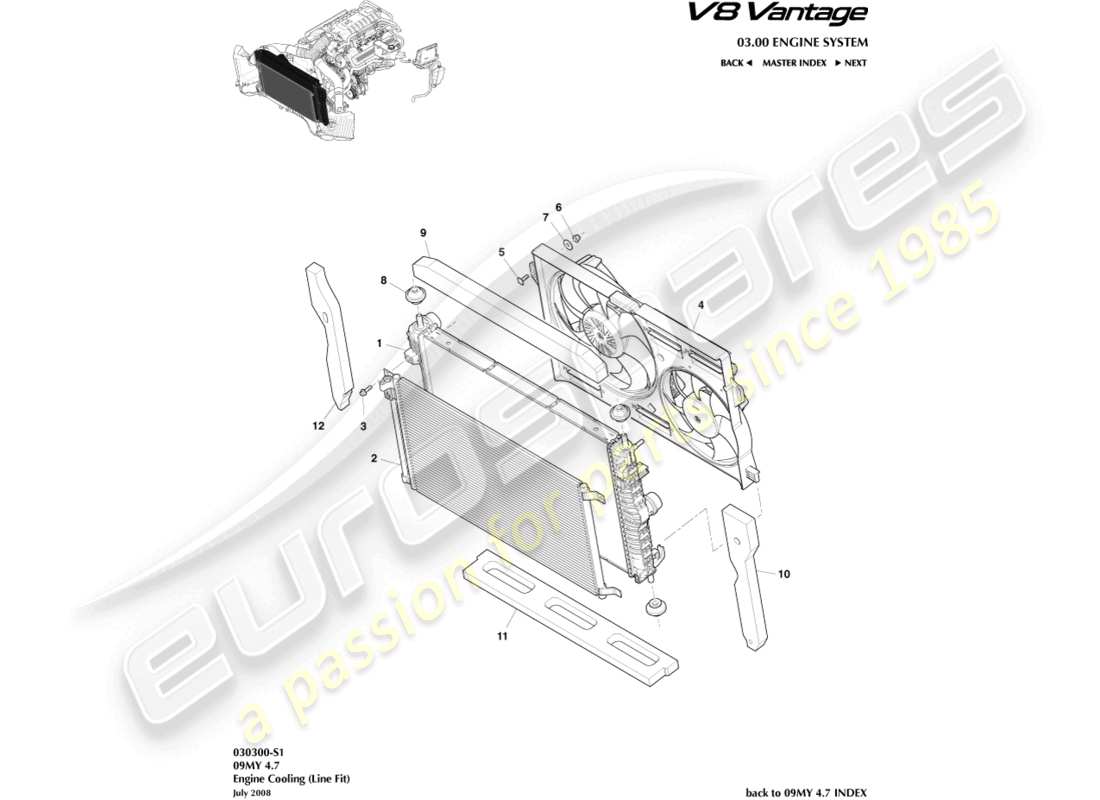

aston martin v8 vantage (2009) engine cooling (line fit) parts diagram

030300-S1-1 - Engine Cooling (Line Fit)

Aston Martin V8 Vantage (2009) Engine Cooling (Line Fit) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 8D33-8005-AB
                    RADIATOR MODULE ASSY
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 2
                    MPN: 9G43-19710-AA
                    CONDENSER ASSY
                    from £414.31
                    from £414.31
                    CONDENSER ASSEMBLY Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 703750
                    SCREW, M6 X 20, COND TO RAD
                    from £1.73
                    from £1.73
                    SCREW-M6X20 HEX FLD Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 8D33-8C607-AC
                    FAN AND MOTOR ASSY, RADIATOR
                    FAN AND MOTOR ASSEMBLY, RADIATOR Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 703728
                    BOLT, M6 X 19 SQUARE
                    Fan/ motor assy
                    from £7.59
                    from £7.59
                    SCREW-M6X19 SQUAREHD Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 703168
                    NUT, M6 HEX FLG
                    Fan/ motor assy
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 7
                    MPN: 699614
                    WASHER, PLAIN 22 X 6.8 X 2
                    Fan/ motor assy
                    from £10.77
                    from £10.77
                    WASHER 22X6.8X2 ST Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 32-85101
                    BUSH, MOUNTING
                    Fan/ motor assy
                    BUSH, MOUNTING Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 9G33-8N301-AB
                    SEAL, FOAM RADIATOR UPPER
                    from £12.42
                    from £12.42
                    SEAL, FOAM RADIATOR UPPER Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 9G33-F8B171-AB
                    SEAL, FOAM RADIATOR LH
                    from £14.42
                    from £14.42
                    SEAL, FOAM RADIATOR LH Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 8D33-8C477-AA
                    SEAL, FOAM RADIATOR LOWER
                    from £13.73
                    from £13.73
                    FOAM SEAL - LOWER Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 9G33-F8B170-AB
                    SEAL, FOAM RADIATOR RH
                    from £14.42
                    from £14.42
                    SEAL, FOAM RADIATOR RH Genuine Aston Martin - New (to order)
                    # -
                    -
                    MODULATOR, COOLING FAN
