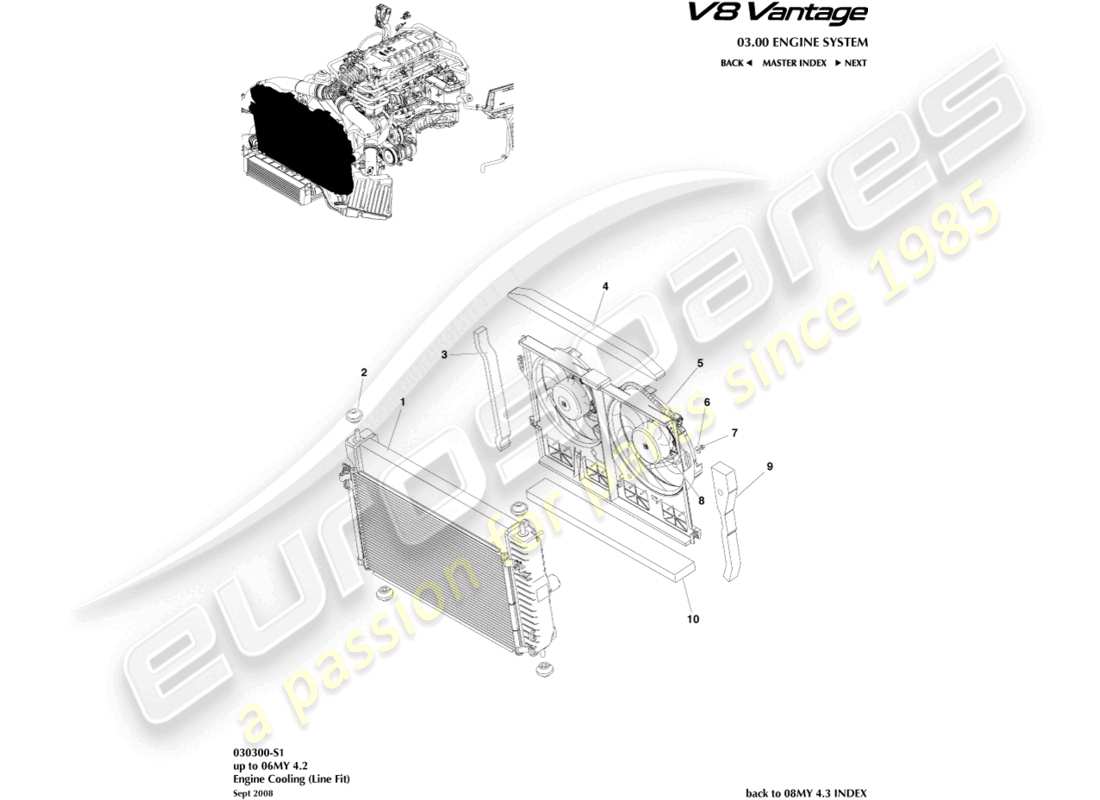

030300-S1 - Engine Cooling (Line Fit)

Aston Martin V8 Vantage (2009) Engine Cooling (Line Fit) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # -
                        MPN: 4G43-8C342-AD
                        RADIATOR AND CONDENSOR ASSY
                        RADIATOR AND CONDENSOR ASSEMBLY Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 32-121574-AD
                        RADIATOR ASSY
                        from £1,097.84
                        from £1,097.84
                        Radiator assembly Genuine Aston Martin - New (to order)
                        # -
                        -
                        CONDENSER
                        # 2
                        MPN: 32-85101
                        BUSH, MOUNTING
                        BUSH, MOUNTING Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 4G43-F8B171-AA
                        SEAL, FOAM, RADIATOR, RH
                        from £26.49
                        from £26.49
                        SEAL RADIATOR -LH/RH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 6G33-8N301-AA
                        SEAL, FOAM, RADIATOR UPPER
                        from £23.27
                        from £23.27
                        SEAL, FOAM, RADIATOR UPPER Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 4G43-8C607-AA
                        FAN AND MOTOR ASSY, RADIATOR
                        from £781.89
                        from £781.89
                        FAN AND MOTOR ASSEMBLY, RADIATOR Genuine Aston Martin - New (to order)
                        FAN AND MOTOR ASSEMBLY, RADIATOR Genuine Aston Martin - Used In stock
                        # 6
                        MPN: 699614
                        WASHER, 22 X 6.8 X 2
                        from £10.77
                        from £10.77
                        WASHER 22X6.8X2 ST Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 703168
                        NUT, NYLOC, M6
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 8
                        MPN: 703728
                        BOLT, M6 X 19 SQUARE HEAD
                        from £7.59
                        from £7.59
                        SCREW-M6X19 SQUAREHD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 6G33-F8B171-AA
                        SEAL, FOAM, RADIATOR, LH
                        from £69.31
                        from £69.31
                        SEAL, FOAM, RADIATOR, LH Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 4G43-8C477-AB
                        SEAL, FOAM, RADIATOR LOWER
                        from £24.07
                        from £24.07
                        SEAL, RADIATOR LOWER Genuine Aston Martin - New (to order)
                        # -
                        -
                        MODULATOR, COOLING FAN
