aston martin v8 vantage (2009) accessory drive parts diagram

030500-E1-1 - Accessory Drive

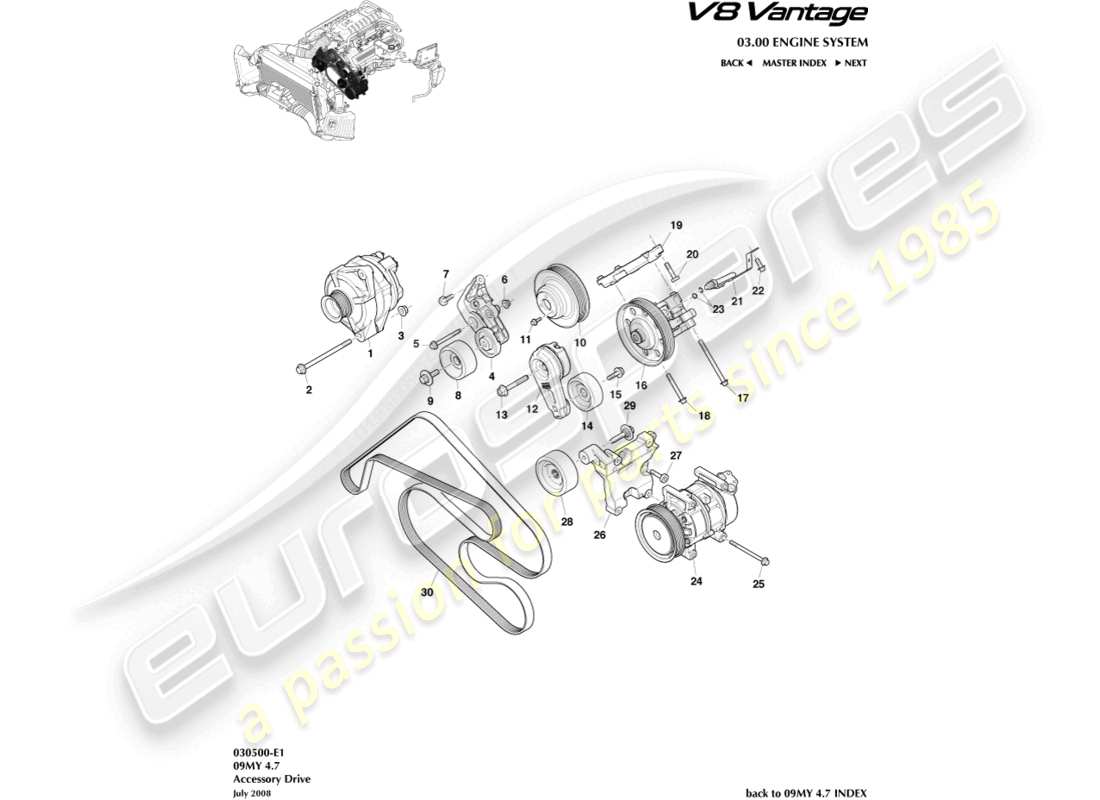

Aston Martin V8 Vantage (2009) Accessory Drive Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 6G43-09-10481
                                            ALTERNATOR ASSY
                                            from £577.79
                                            from £577.79
                                            ALTERNATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 702554
                                            BOLT, M10X140 HEX FLG
                                            from £28.96
                                            from £28.96
                                            BOLT M10 X 140 Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 6G33-10239-AC
                                            BRACKET ASSY, ALTERNATOR
                                            from £444.96
                                            from £444.96
                                            BRACKET ASSEMBLY, ALTERNATOR Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 702552
                                            BOLT, M8X70 HEX FLG
                                            from £0.71
                                            from £0.71
                                            BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 702553
                                            NUT, M8 HEX FLG
                                            from £0.47
                                            from £0.47
                                            NUT, M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: 702551
                                            BOLT, M8X35 PAN HD
                                            from £1.00
                                            from £1.00
                                            SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 6G33-19A216-BA
                                            IDLER ASSY, DRIVE BELT
                                            from £28.33
                                            from £28.33
                                            IDLER ASSEMBLY, DRIVE BELT Genuine Aston Martin - New In stock
                                            # 10
                                            MPN: 6G43-05-10085
                                            PULLEY, WATER PUMP
                                            from £13.42
                                            from £13.42
                                            PULLEY, WATER PUMP Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 6G43-05-10175
                                            BOLT AND WASHER, M6X18 HEX FLG
                                            from £0.47
                                            from £0.47
                                            BOLT AND WASHER, M6X18 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: 6G33-6B209-AC

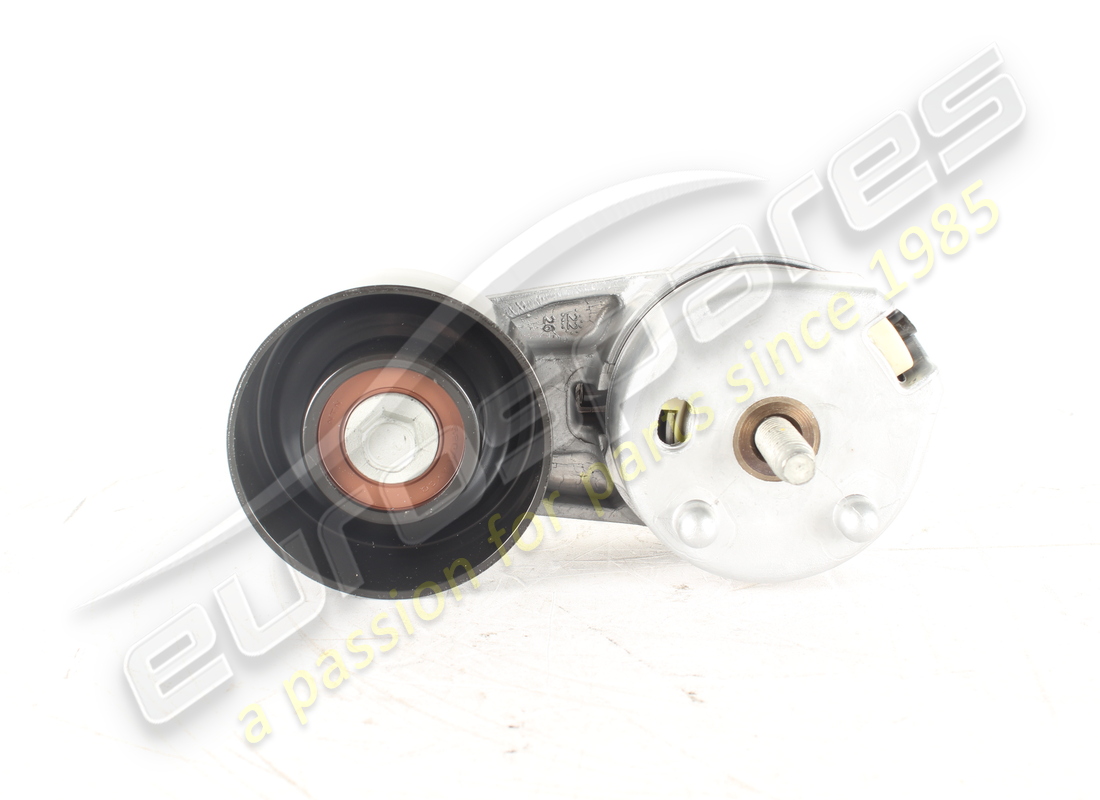

                                            TENSIONER ASSY, ENGINE DRIVE BELT
                                            from £54.97
                                            from £54.97
                                            TENSIONER ASSEMBLY, ENGINE DRIVE BELT Genuine Aston Martin - New In stock
                                            # 16
                                            MPN: 6G33-3A696-AC
                                            PUMP AND PULLEY, PWR STEERING
                                            from £469.70
                                            from £469.70
                                            Genuine Aston Martin (no longer available to order)
                                            PUMP AND PULLEY, POWER STEERING Genuine Aston Martin - Used In stock
                                            # 17
                                            MPN: 702557
                                            BOLT, M8X100 HEX FLG
                                            from £15.04
                                            from £15.04
                                            BOLT M8 X 100 Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 702558
                                            BOLT, M8X60 HEX FLG
                                            from £9.32
                                            from £9.32
                                            BOLT, M8X60 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 6G33-3K738-AA
                                            BRACKET ASSY, POWER STEERING PUMP
                                            from £74.42
                                            from £74.42
                                            BRACKET ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 702551
                                            BOLT, M8X35 PAN INT. LOB 8
                                            from £1.00
                                            from £1.00
                                            SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 6G33-3494-AB
                                            TUBE ASSY, POWER STEERING PUMP
                                            from £39.20
                                            from £39.20
                                            TUBE ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - New (to order)
                                            TUBE ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - Used In stock
                                            # 22
                                            MPN: 702556
                                            SCREW, M8X20 HEX FLG
                                            from £0.47
                                            from £0.47
                                            SCREW, M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: 6G33-19D629-AB
                                            COMPRESSOR ASSY, AIR CON
                                            With R134 refrigerant
                                            from £793.67
                                            from £793.67
                                            This part replaces part number 6G33-19D629-AA
                                            COMPRESSOR ASSEMBLY, AIR CONDITIONING Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: HG33-19D629-AA
                                            COMPRESSOR ASSY, AIR CON
                                            From 17MY, With HFO1234yf refrigerant
                                            from £957.72
                                            from £957.72
                                            COMPRESSOR ASSEMBLY, AIR CON Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: 702557
                                            BOLT, M8X100 HEX FLG
                                            from £15.04
                                            from £15.04
                                            BOLT M8 X 100 Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 6G33-19N586-AC
                                            BRACKET ASSY, AIR CON PUMP
                                            09MY on
                                            from £91.23
                                            from £91.23
                                            BRACKET ASSEMBLY, AIR CON PUMP Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: 702551
                                            BOLT, M8X35
                                            from £1.00
                                            from £1.00
                                            SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 9G33-19A216-AA

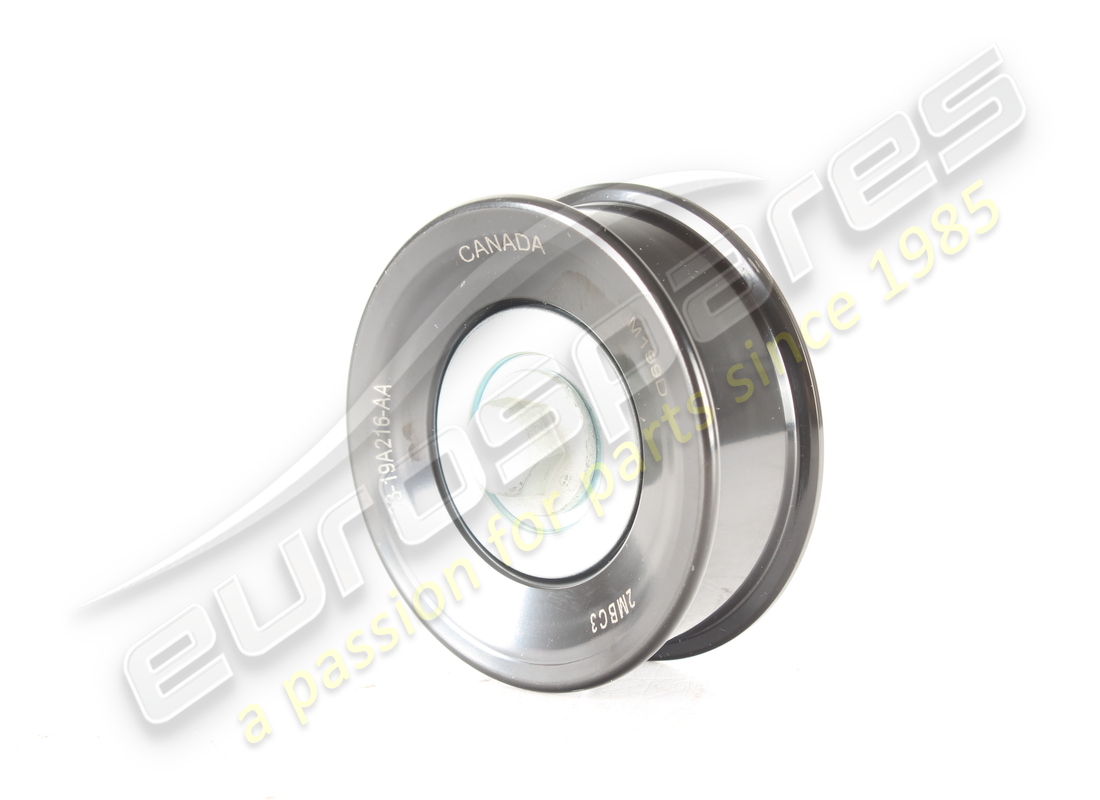

                                            IDLER ASSY, ENGINE DRIVE BELT
                                            from £35.43
                                            from £35.43
                                            IDLER ASSEMBLY, ENGINE DRIVE BELT Genuine Aston Martin - New In stock
                                            # 30
                                            MPN: 9G33-8620-AB

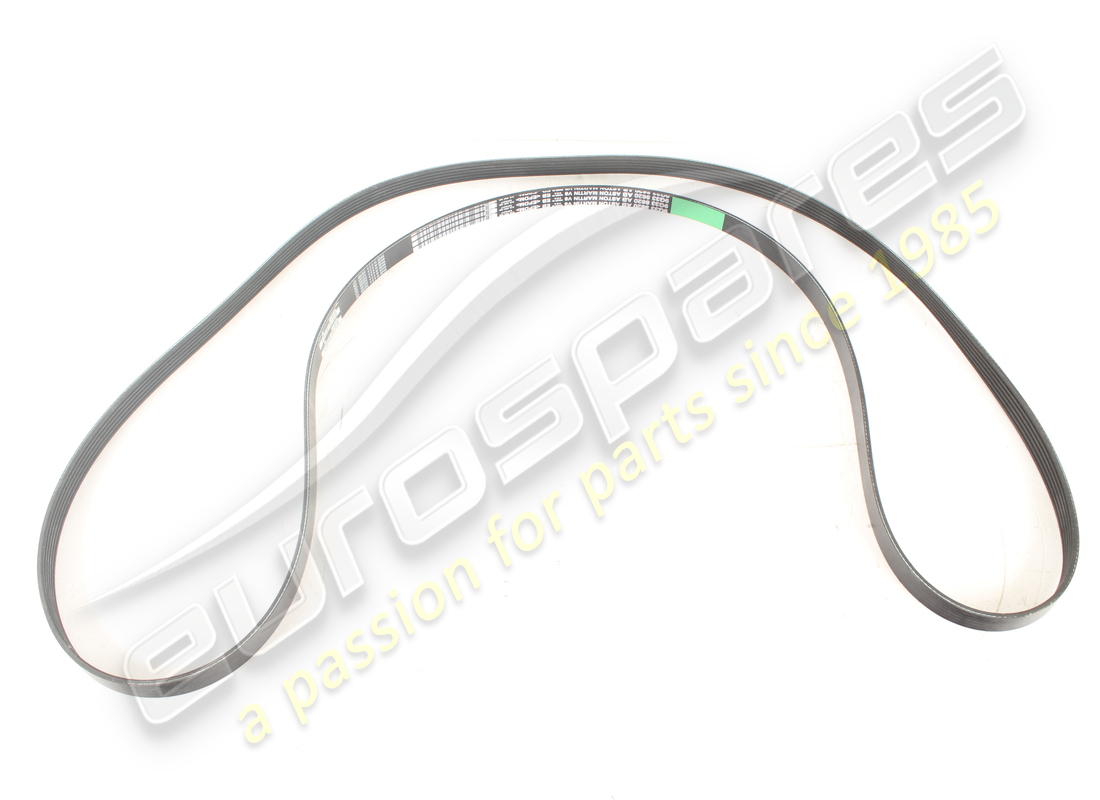

                                            BELT, DRIVE
                                            Before Ordering, Please see Bulletin PSB.2017.402
                                            from £87.63
                                            from £87.63
                                            This part replaces part number 9G33-8620-AA
                                            BELT, DRIVE Genuine Aston Martin - New In stock
