aston martin v8 vantage (2009) engine sealing parts diagram

031000-E1-1 - Engine Sealing

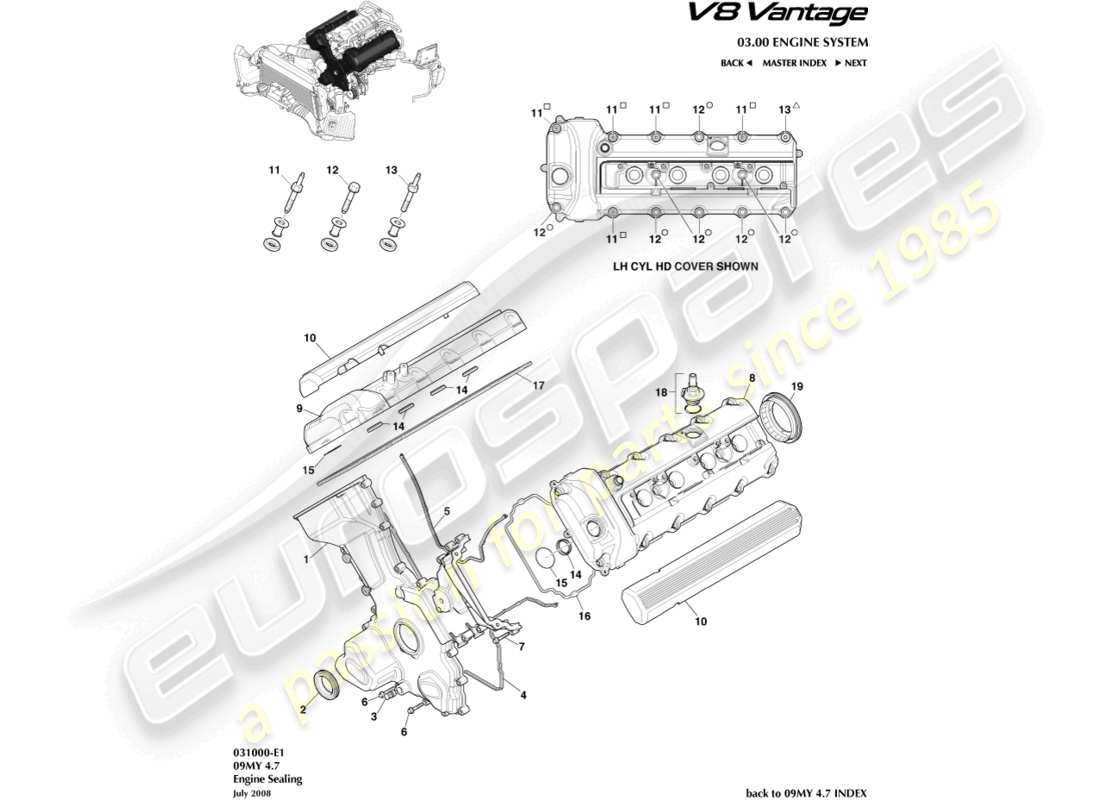

Aston Martin V8 Vantage (2009) Engine Sealing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 6G33-6019-BA
                                    TIMING COVER
                                    TIMING COVER Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 6G43-03-10020
                                    SEAL, CRANKSHAFT, FRONT
                                    from £21.90
                                    from £21.90
                                    SEAL, CRANKSHAFT, FRONT Genuine Aston Martin - New In stock
                                    # 3
                                    MPN: 6G33-9H490-AA
                                    JOHN GUEST CARTRIDGE ASSY
                                    from £10.78
                                    from £10.78
                                    JOHN GUEST CARTRIDGE ASSEMBLY Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 6G33-6E009-AA
                                    GASKET, OUTER
                                    from £78.42
                                    from £78.42
                                    GASKET, OUTER Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 6G43-03-10022
                                    GASKET, INNER
                                    from £23.94
                                    from £23.94
                                    GASKET, INNER Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 702946
                                    BOLT, M6 X 35, FLANGE HEAD
                                    All 27 are the same
                                    from £0.47
                                    from £0.47
                                    BOLT M6X35 HEX Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 702946
                                    BOLT, M6 X 35, FLANGE HEAD
                                    All 27 are the same
                                    from £0.47
                                    from £0.47
                                    BOLT M6X35 HEX Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 6G43-07-10482
                                    COVER, CYLINDER HEAD LH
                                    from £100.21
                                    from £100.21
                                    COVER, CYLINDER HEAD LH Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 6G43-06-10483
                                    COVER, CYLINDER HEAD RH
                                    from £125.90
                                    from £125.90
                                    COVER, CYLINDER HEAD RH Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 6G33-12025-AD
                                    COVER, COIL
                                    from £15.93
                                    from £15.93
                                    COVER, COIL Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 6G43-03-10027
                                    GROMMET, VALVE ROCKER ARM COVER
                                    from £1.55
                                    from £1.55
                                    GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 6G43-03-10025
                                    GROMMET, VALVE ROCKER ARM COVER
                                    from £1.07
                                    from £1.07
                                    GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 6G33-6A548-BA
                                    BOLT, M6 X 31.5
                                    from £2.62
                                    from £2.62
                                    BOLT, M6 X 31.5 Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 6G43-03-10017-PK
                                    SEAL, SP/PLG SLV
                                    from £10.27
                                    from £10.27
                                    SEAL, SP/PLG SLV Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 6G43-03-10021
                                    SEAL, VALVE ROCKER ARM COVER
                                    from £14.03
                                    from £14.03
                                    SEAL, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 9G33-07-10494
                                    GASKET, CAMSHAFT COVER, LH
                                    from £19.67
                                    from £19.67
                                    This part replaces part number 6G43-03-10031
                                    GASKET, CAMSHAFT COVER, LH Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 9G33-07-10487
                                    GASKET, CAMSHAFT COVER, RH
                                    from £21.30
                                    from £21.30
                                    GASKET, CAMSHAFT COVER, RH Genuine Aston Martin - New (to order)
                                    # 18
                                    MPN: 6G33-6C729-BA
                                    TUBE ASSY, ENGINE VENT BREATHER
                                    from £28.55
                                    from £28.55
                                    TUBE ASSEMBLY, ENGINE VENT BREATHER Genuine Aston Martin - New (to order)
                                    # 19
                                    MPN: 6G43-03-10033
                                    SEAL, CRANKSHAFT REAR
                                    from £51.34
                                    from £51.34
                                    SEAL, CRANKSHAFT REAR Genuine Aston Martin - New (to order)
