aston martin v8 vantage (2009) engine sealing parts diagram

031000-E1 - Engine Sealing

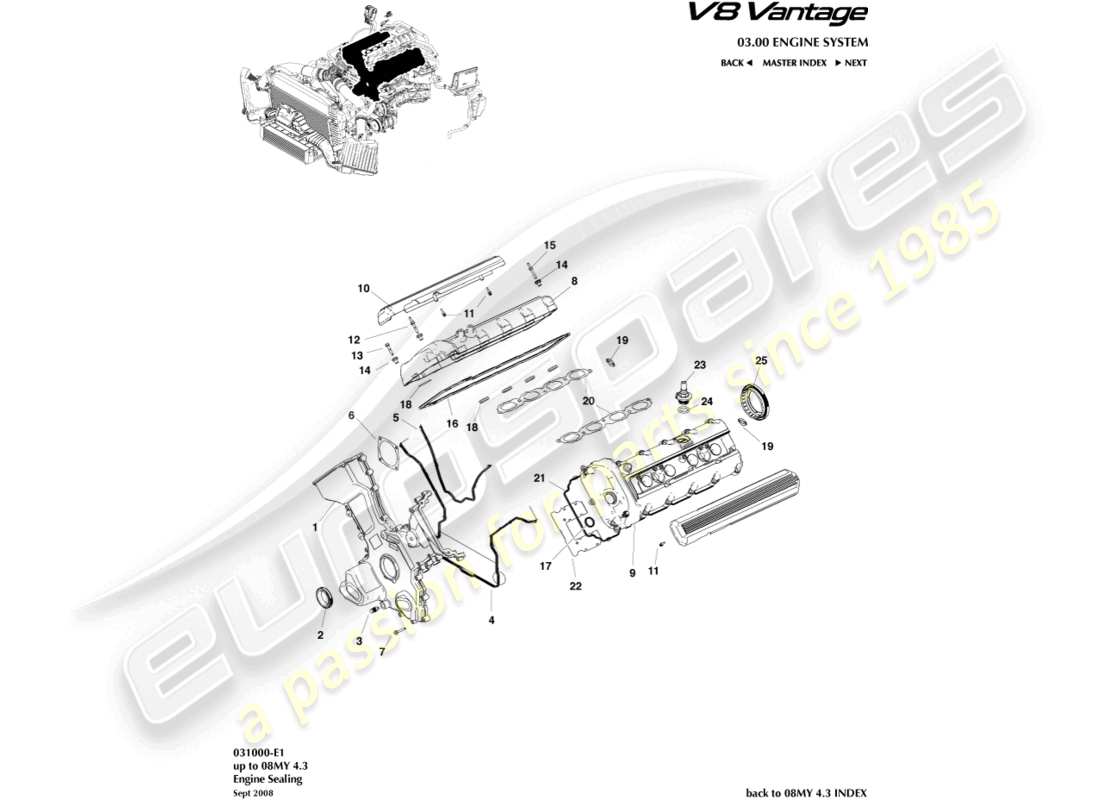

Aston Martin V8 Vantage (2009) Engine Sealing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 6G33-6019-BA
                                              TIMING COVER
                                              TIMING COVER Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: 6G43-03-10020
                                              SEAL, CRANKSHAFT, FRONT
                                              from £21.90
                                              from £21.90
                                              SEAL, CRANKSHAFT, FRONT Genuine Aston Martin - New In stock
                                              # 3
                                              MPN: 6G33-9H490-AA
                                              JOHN GUEST CARTRIDGE ASSY
                                              from £10.78
                                              from £10.78
                                              JOHN GUEST CARTRIDGE ASSEMBLY Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 6G33-6E009-AA
                                              GASKET, OUTER
                                              from £78.42
                                              from £78.42
                                              GASKET, OUTER Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: 6G43-03-10022
                                              GASKET, INNER
                                              from £23.94
                                              from £23.94
                                              GASKET, INNER Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 6G33-9F809-AA
                                              GASKET, THROTTLE BODY AIR INLET
                                              from £4.67
                                              from £4.67
                                              GASKET, THROTTLE BODY AIR INLET Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: 702946
                                              BOLT, HEX FLANGED, M6 X 35
                                              from £0.47
                                              from £0.47
                                              BOLT M6X35 HEX Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 6G43-03-10028
                                              COVER, CYLINDER HEAD RH
                                              from £95.25
                                              from £95.25
                                              COVER, CYLINDER HEAD RH Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 6G43-03-10029
                                              COVER, CYLINDER HEAD LH
                                              COVER, CYLINDER HEAD LH Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: 6G33-12025-AD
                                              COVER, COIL
                                              from £15.93
                                              from £15.93
                                              COVER, COIL Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: 6G33-6A548-BA
                                              BOLT M6 X 31.5, COIL COVER
                                              from £2.62
                                              from £2.62
                                              BOLT, M6 X 31.5 Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: 6G43-03-10027
                                              GROMMET, VALVE ROCKER ARM COVER
                                              from £1.55
                                              from £1.55
                                              GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 6G43-03-10025
                                              BOLT AND GROMMET ASSY
                                              from £1.07
                                              from £1.07
                                              GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: 6G43-07-10416
                                              GROMMET ASSY
                                              from £0.73
                                              from £0.73
                                              GROMMET ASSEMBLY Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 6G33-6A548-AB
                                              BOLT M6 X 31.5, CAM COVER
                                              from £3.36
                                              from £3.36
                                              BOLT M6 X 31.5, CAM COVER Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: 2W93-6K260-BB
                                              GASKET, CAMSHAFT COVER, RH
                                              GASKET, CAMSHAFT COVER, RH Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 6G43-03-10021
                                              SEAL, VALVE ROCKER ARM COVER
                                              from £14.03
                                              from £14.03
                                              SEAL, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 6G43-03-10017
                                              SEAL, SP/PLG SLV
                                              SEAL, SP/PLG SLV Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 6G33-9P435-AB
                                              GASKET, SECONDARY AIR
                                              from £10.42
                                              from £10.42
                                              GASKET, SECONDARY AIR Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 6G33-9P851-AB-PK
                                              GASKET, INTAKE MANIFOLD
                                              Pack of 2
                                              from £16.13
                                              from £16.13
                                              GASKET, INTAKE MANIFOLD Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: 6G43-03-10031
                                              GASKET, CAMSHAFT COVER, LH
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 22
                                              MPN: 6G43-07-10107
                                              BAFFLE, VALVE ROCKER ARM
                                              from £98.86
                                              from £98.86
                                              BAFFLE, VALVE ROCKER ARM Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: 6G33-6C729-BA
                                              TUBE ASSY, ENGINE VENT BREATHER
                                              Includes O ring
                                              from £28.55
                                              from £28.55
                                              TUBE ASSEMBLY, ENGINE VENT BREATHER Genuine Aston Martin - New (to order)
                                              # 25
                                              MPN: 6G43-03-10033
                                              SEAL, CRANKSHAFT REAR
                                              from £51.34
                                              from £51.34
                                              SEAL, CRANKSHAFT REAR Genuine Aston Martin - New (to order)
