aston martin v8 vantage (2009) air charging, v8s parts diagram

031200-1 - Air Charging, V8S

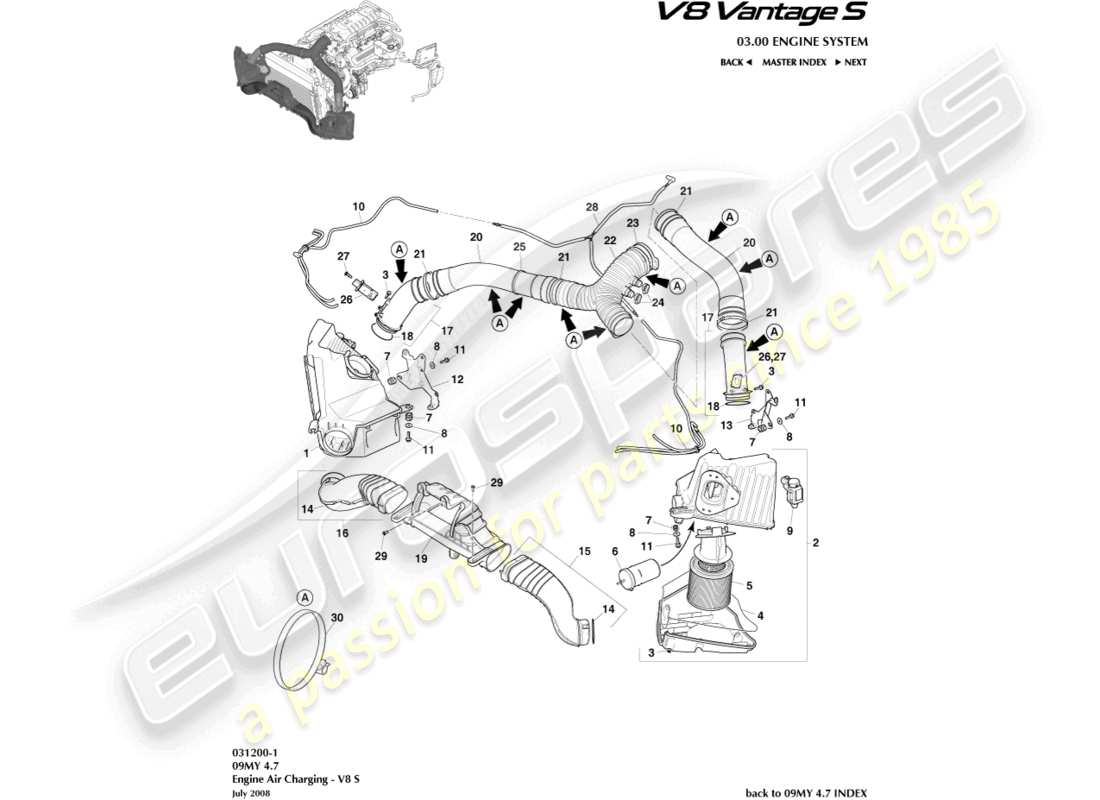

Aston Martin V8 Vantage (2009) Air Charging, V8S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 8D33-9600-BA
                                          AIRBOX ASSEMBLY, RHS
                                          Includes Items 3 - 10
                                          from £698.58
                                          from £698.58
                                          AIRBOX ASSY-RHS Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 8D33-9600-CA
                                          AIRBOX ASSEMBLY, LHS
                                          Includes Items 3 - 10
                                          from £698.60
                                          from £698.60
                                          AIRBOX ASSY-LHS Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 4G43-0410-AA
                                          SCREW, SELF TAP
                                          7 per Airbox Assy
                                          from £1.40
                                          from £1.40
                                          SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: 4G43-9C664-AB
                                          SCREW, SELF TAP
                                          1 per Airbox Assy
                                          from £11.60
                                          from £11.60
                                          GSKT-A/CLNR ELEM Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 4G43-9601-AB-PK
                                          FILTER, AIR CLEANER
                                          1 per Airbox Assy, 2 per Pack
                                          from £49.95
                                          from £49.95
                                          This part replaces part number A4G43-9601-AB
                                          Genuine Aston Martin (no longer available to order)
                                          Alternative (#4G43-9601-AB) AIR FILTER (single) Genuine Aston Martin - New In stock
                                          # 6
                                          MPN: 8D33-2K061-AA
                                          VACUUM RESERVOIR
                                          1 per Airbox Assy
                                          from £96.94
                                          from £96.94
                                          VACUUM RESERVOIR Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 4G43-9697-CA
                                          GROMMET
                                          2 per Airbox Assy
                                          from £8.04
                                          from £8.04
                                          GROMMET Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 4G43-5144-AA
                                          SPACER
                                          2 per Airbox Assy
                                          from £8.67
                                          from £8.67
                                          SPACER Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: 6L34-9H465-BA
                                          VACUUM SOLENOID
                                          1 per Airbox Assy
                                          from £59.27
                                          from £59.27
                                          SOLENOID VAC Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 8D33-43836-AA
                                          VACUUM HOSE ASSEMBLY
                                          1 per Airbox Assy
                                          from £114.73
                                          from £114.73
                                          VACUUM HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 703025
                                          SCREW, HEX FLG, M6 X 25
                                          from £0.47
                                          from £0.47
                                          SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 6G33-9B609-BC
                                          BRACKET, AIR CLEANER, RH
                                          from £96.91
                                          from £96.91
                                          BRACKET, AIR CLEANER, RH Genuine Aston Martin - New (to order)
                                          BRACKET, AIR CLEANER, RH Genuine Aston Martin - Used In stock
                                          # 13
                                          MPN: 6G33-9B609-CC
                                          BRACKET, AIR CLEANER, LH
                                          from £96.91
                                          from £96.91
                                          BRACKET, AIR CLEANER, LH Genuine Aston Martin - New (to order)
                                          BRACKET, AIR CLEANER, LH Genuine Aston Martin - Used In stock
                                          # 14
                                          MPN: 4G43-6C704-BA
                                          O RING
                                          from £14.92
                                          from £14.92
                                          O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: 6G33-9A675-HA
                                          AIR CLEANER INTAKE ASSEMBLY, LH
                                          from £28.35
                                          from £28.35
                                          DUCT ASSEMBLY, AIR INTAKE LH Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 6G33-9A675-GA
                                          AIR CLEANER INTAKE ASSEMBLY, RH
                                          from £28.35
                                          from £28.35
                                          DUCT ASSEMBLY, AIR INTAKE RH Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 6G33-12B612-AD
                                          BODY ASSEMBLY, MASS AIRFLOW SENSOR
                                          from £21.63
                                          from £21.63
                                          This part replaces part number 6G33-12B612-AB which we have in stock
                                          BODY ASSEMBLY, MASS AIRFLOW SENSOR Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 4G43-6C704-BA
                                          O RING
                                          from £14.92
                                          from £14.92
                                          O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 6G33-9P866-CB
                                          DUCT ASSEMBLY,AIR INTAKE
                                          from £148.13
                                          from £148.13
                                          DUCT ASSEMBLY, CENTRE AIR INTAKE Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: 6G33-9C623-EA
                                          DUCT ASSEMBLY, AIR OUTLET
                                          from £112.52
                                          from £112.52
                                          This part replaces part number 6G33-9C623-DA which we have in stock
                                          DUCT ASSEMBLY, AIR OUTLET Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: 6G33-6N811-CA
                                          CLAMP, HERBIE 85MM
                                          from £3.82
                                          from £3.82
                                          CLAMP, HERBIE 85MM Genuine Aston Martin - New (to order)
                                          CLAMP, HERBIE 85MM Genuine Aston Martin - Used In stock
                                          # 22
                                          MPN: 6G33-9D609-BD
                                          Y PIECE ASSEMBLY, THROTTLE BODY
                                          from £227.59
                                          from £227.59
                                          ADPT-DCT-THROT-BDY Genuine Aston Martin - New (to order)
                                          ADPT-DCT-THROT-BDY Genuine Aston Martin - Used In stock
                                          # 23
                                          MPN: 6G33-6N811-DA
                                          CLAMP, HERBIE 96MM
                                          from £3.98
                                          from £3.98
                                          CLAMP, HERBIE 96MM Genuine Aston Martin - New (to order)
                                          # 24
                                          MPN: 6G33-6N811-BA
                                          CLAMP, HERBIE 26MM
                                          from £3.04
                                          from £3.04
                                          CLAMP, HERBIE 26MM Genuine Aston Martin - New (to order)
                                          # 25
                                          MPN: 6G33-14A169-AB
                                          CABLE TIE
                                          from £3.07
                                          from £3.07
                                          CLIP Genuine Aston Martin - New (to order)
                                          # 26
                                          MPN: 4G43-08-10933
                                          AIR MASS SENSOR
                                          from £86.47
                                          from £86.47
                                          SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                          # 27
                                          MPN: 4G43-0410-BB
                                          SCREW, SELF TAP
                                          from £3.98
                                          from £3.98
                                          SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                          # 28
                                          MPN: BG33-43836-AA
                                          VACUUM HOSE ASSEMBLY
                                          from £63.88
                                          from £63.88
                                          VACUUM HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 29
                                          MPN: 4G43-2705-AA
                                          RIVET
                                          from £0.47
                                          from £0.47
                                          RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                          # 30
                                          MPN: 8D33-ANR1350-AA
                                          HOSE CLIP, CABLE TIE
                                          from £4.49
                                          from £4.49
                                          TIE CABLE HOS CLIP A Genuine Aston Martin - New (to order)
