aston martin v8 vantage (2009) air charging parts diagram

031200-S1-1 - Air Charging

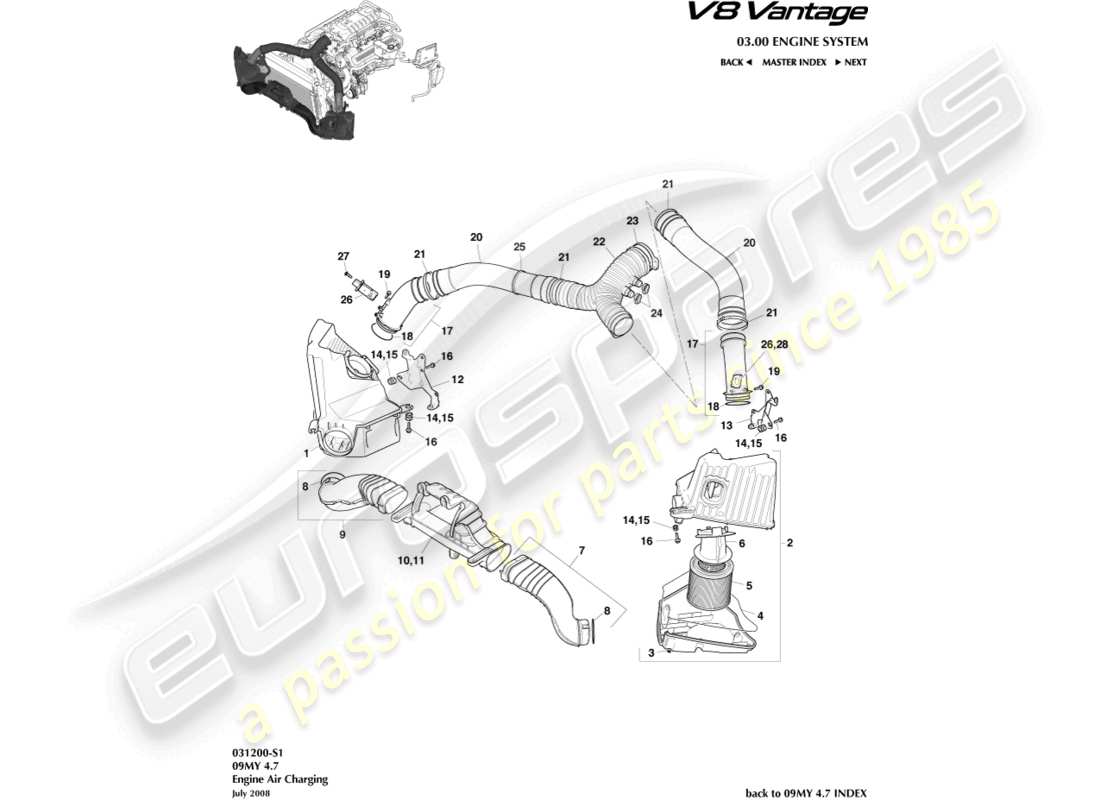

Aston Martin V8 Vantage (2009) Air Charging Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 4G43-9600-BD
                                                      AIRBOX ASSY, ENGINE AIR RH
                                                      from £228.07
                                                      from £228.07
                                                      AIRBOX ASSY-RHS Genuine Aston Martin - New (to order)
                                                      # 2
                                                      MPN: 4G43-9600-CD
                                                      AIRBOX ASSY, ENGINE AIR LH
                                                      from £228.07
                                                      from £228.07
                                                      AIRBOX ASSY-LHS Genuine Aston Martin - New (to order)
                                                      # 3
                                                      MPN: 4G43-0410-AA
                                                      SCREW, SELF TAP
                                                      from £1.40
                                                      from £1.40
                                                      SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                      # 4
                                                      MPN: 4G43-9C664-AB
                                                      GASKET, AIR CLEANER ELEMENT
                                                      from £11.60
                                                      from £11.60
                                                      GSKT-A/CLNR ELEM Genuine Aston Martin - New (to order)
                                                      # 5
                                                      MPN: 4G43-9601-AB
                                                      FILTER, ENGINE AIR
                                                      from £49.95
                                                      from £49.95
                                                      This part replaces part number 4G43-9601-AB-PK
                                                      AIR FILTER (single) Genuine Aston Martin - New In stock
                                                      Genuine Aston Martin (no longer available to order)
                                                      # 7
                                                      MPN: 6G33-9A675-HA
                                                      DUCT ASSY, AIR INTAKE LH
                                                      from £28.35
                                                      from £28.35
                                                      DUCT ASSEMBLY, AIR INTAKE LH Genuine Aston Martin - New (to order)
                                                      # 8
                                                      MPN: 4G43-6C704-AA
                                                      O RING
                                                      from £13.42
                                                      from £13.42
                                                      O-RING ENG DUCT Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: 6G33-9A675-GA
                                                      DUCT ASSY, AIR INTAKE RH
                                                      from £28.35
                                                      from £28.35
                                                      DUCT ASSEMBLY, AIR INTAKE RH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 6G33-9P866-CB
                                                      DUCT ASSY, CENTRE AIR INTAKE
                                                      from £148.13
                                                      from £148.13
                                                      DUCT ASSEMBLY, CENTRE AIR INTAKE Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: 4G43-2705-AA
                                                      RIVET
                                                      from £0.47
                                                      from £0.47
                                                      RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                                      # 12
                                                      MPN: 6G33-9B609-BB
                                                      BRACKET, AIR CLEANER RH
                                                      BRACKET, AIR CLEANER RH Genuine Aston Martin - New (to order)
                                                      # 13
                                                      MPN: 6G33-9B609-CB
                                                      BRACKET, AIR CLEANER LH
                                                      BRACKET, AIR CLEANER LH Genuine Aston Martin - New (to order)
                                                      # 14
                                                      MPN: 4G43-9697-CA
                                                      GROMMET
                                                      from £8.04
                                                      from £8.04
                                                      GROMMET Genuine Aston Martin - New (to order)
                                                      # 15
                                                      MPN: 4G43-5144-AA
                                                      SPACER
                                                      from £8.67
                                                      from £8.67
                                                      SPACER Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: 703025
                                                      SCREW, FLG, M6 X 25
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: 4G43-6C704-BA
                                                      O RING
                                                      from £14.92
                                                      from £14.92
                                                      O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: 4G43-0410-AA
                                                      SCREW, SELF TAP
                                                      from £1.40
                                                      from £1.40
                                                      SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                      # 20
                                                      MPN: 6G33-9C623-DA
                                                      DUCT, CLEAN AIR R/LH
                                                      from £82.32
                                                      from £82.32
                                                      Genuine Aston Martin (no longer available to order)
                                                      DUCT, CLEAN AIR R/LH Genuine Aston Martin - Used In stock
                                                      # 21
                                                      MPN: 6G33-6N811-CA

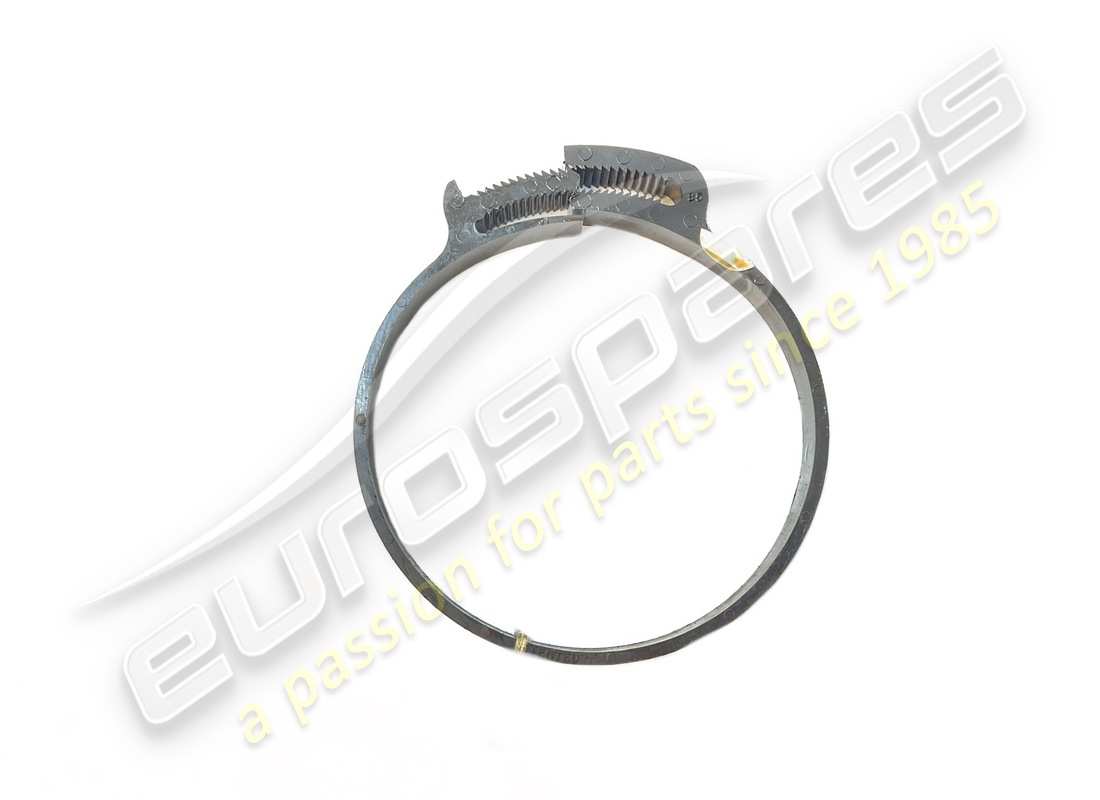

                                                      CLAMP, HERBIE 85MM
                                                      from £3.82
                                                      from £3.82
                                                      CLAMP, HERBIE 85MM Genuine Aston Martin - New (to order)
                                                      CLAMP, HERBIE 85MM Genuine Aston Martin - Used In stock
                                                      # 22
                                                      MPN: 6G33-9D609-BD
                                                      ADAPTOR ASSY, THROTTLE BODY
                                                      from £227.59
                                                      from £227.59
                                                      ADPT-DCT-THROT-BDY Genuine Aston Martin - New (to order)
                                                      ADPT-DCT-THROT-BDY Genuine Aston Martin - Used In stock
                                                      # 23
                                                      MPN: 6G33-6N811-DA
                                                      CLAMP, HERBIE 96MM
                                                      from £3.98
                                                      from £3.98
                                                      CLAMP, HERBIE 96MM Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 6G33-6N811-BA
                                                      CLAMP, HERBIE 26MM
                                                      from £3.04
                                                      from £3.04
                                                      CLAMP, HERBIE 26MM Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: 6G33-14A169-AB
                                                      CLIP
                                                      from £3.07
                                                      from £3.07
                                                      CLIP Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: 4G43-08-10933
                                                      SENSOR ASSY
                                                      from £86.47
                                                      from £86.47
                                                      SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                                      # 27
                                                      MPN: 4G43-0410-BB
                                                      SCREW, SELF TAP
                                                      from £3.98
                                                      from £3.98
                                                      SCREW, SELF TAP Genuine Aston Martin - New (to order)
