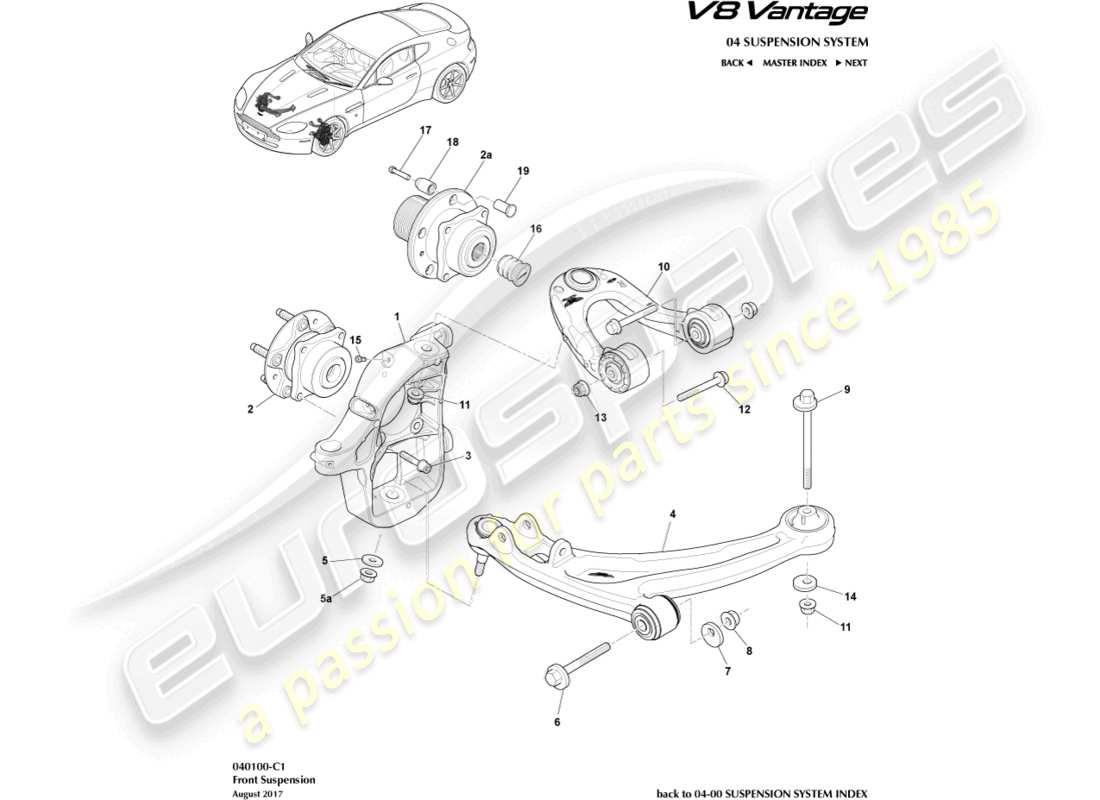

040100-C1 - Front Suspension Assembly

Aston Martin V8 Vantage (2009) Front Suspension Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 7G43-3K185-AB
                          KNUCKLE, FRONT, LH
                          V8 to 12.25MY
                          from £627.34
                          from £627.34
                          KNUCKLE, FRONT, LH Genuine Aston Martin - New (to order)
                          KNUCKLE, FRONT, LH Genuine Aston Martin - Used In stock
                          # 1
                          MPN: BG33-3K185-AA
                          KNUCKLE, FRONT, LH
                          V8 From 12.25MY
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: BG33-3K185-AA
                          KNUCKLE, FRONT, LH
                          V8S From 11MY
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: BG33-3K185-AA
                          KNUCKLE, FRONT, LH
                          GT8
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 7G43-3K186-AB
                          KNUCKLE, FRONT, RH
                          V8 to 12.25MY
                          from £1,254.67
                          from £1,254.67
                          KNUCKLE, FRONT, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: BG33-3K186-AA
                          KNUCKLE, FRONT, RH
                          V8 From 12.25MY
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: BG33-3K186-AA
                          KNUCKLE, FRONT, RH
                          V8S From 11MY
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: BG33-3K186-AA
                          KNUCKLE, FRONT, RH
                          GT8
                          from £1,724.53
                          from £1,724.53
                          KNUCKLE, FRONT, RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-2B663-AD
                          HUB AND BEARING ASSEMBLY
                          from £340.93
                          from £340.93
                          HB & BRG ASSEMBLY FRONT BRK Genuine Aston Martin - New (to order)
                          # 2
                          MPN: AD43-2B663-AA
                          HUB AND BEARING ASSEMBLY
                          GT8, 5 Stud
                          from £529.46
                          from £529.46
                          HB & BRG ASSEMBLY FRONT BRK Genuine Aston Martin - New (to order)
                          # 2a
                          MPN: GD2Y-2B663-AB
                          HUB AND BEARING ASSEMBLY
                          GT8, Centre Lock
                          from £3,507.13
                          from £3,507.13
                          HUB AND BEARING ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-3A053-AD
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH
                          V8/V8S, Coupe
                          from £225.00
                          from £225.00
                          Genuine Aston Martin (no longer available to order)
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH Genuine Aston Martin - Used In stock
                          # 4
                          MPN: 8G33-3A053-AB
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH
                          V8/V8S, Sportpack
                          from £489.65
                          from £489.65
                          FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8G33-3A053-AB
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH
                          GT8
                          from £489.65
                          from £489.65
                          FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-3A053-BC
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH
                          Up To 09MY, Roadster
                          from £458.40
                          from £458.40
                          This part replaces part number 6G33-3A053-AD which we have in stock
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8D33-3A053-AC
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, LH
                          From 09MY, Roadster, Less Sportpack
                          from £458.40
                          from £458.40
                          ARM & BSHG ASSEMBLY LH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-3A052-AD
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH
                          V8/V8S, Coupe
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 4
                          MPN: 8G33-3A052-AB
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH
                          V8/V8S, Sportpack
                          from £489.65
                          from £489.65
                          FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8G33-3A052-AB
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH
                          GT8
                          from £489.65
                          from £489.65
                          FRONT LOWER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 6G33-3A052-BC
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH
                          Up To 09MY, Roadster
                          from £458.40
                          from £458.40
                          This part replaces part number 6G33-3A052-AD
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8D33-3A052-AC
                          ARM ASSEMBLY, SUSPENSION, LOWER FRONT, RH
                          From 09MY, Roadster, Less Sportpack
                          from £458.40
                          from £458.40
                          ARM & BSHG ASSEMBLY RH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: GG33-39078-AA
                          WASHER
                          from £10.49
                          from £10.49
                          WASHER Genuine Aston Martin - New (to order)
                          # 5a
                          MPN: 703565
                          NUT, M12 HEX
                          from £0.74
                          from £0.74
                          This part replaces part number 699876
                          NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 4G43-3B236-CB
                          BOLT M14, ECCENTRIC, LOWER ARM
                          from £16.95
                          from £16.95
                          CAM BOLT M14 Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 4G43-3B237-CA
                          WASHER, CAM, LOWER ARM
                          from £6.54
                          from £6.54
                          CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                          # 8
                          MPN: 701337
                          NUT, M14 HEX FLG
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 9
                          MPN: 4G43-3B236-BB
                          BOLT, ECCENTRIC M12, LOWER ARM
                          from £40.37
                          from £40.37
                          CAM & BOLT ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-3091-BE
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, LH
                          V8/V8S
                          from £311.30
                          from £311.30
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - New (to order)
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - Used In stock
                          # 10
                          MPN: 8D33-3091-AC
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, LH
                          V8/V8S, Sportpack
                          from £409.24
                          from £409.24
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, LH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: DG43-3091-AB
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, LH
                          GT8
                          from £266.27
                          from £266.27
                          ARM ASSEMBLY, FRONT SUSPENSION, UPPER, LH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 6G33-3091-AB
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, LH
                          Up To 12.25MY, Roadster, Less Sportpack
                          from £409.24
                          from £409.24
                          ARM ASSEMBLY FRONT SUSP UPPER Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-3084-BE
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, RH
                          V8/V8S
                          from £311.30
                          from £311.30
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - New (to order)
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - Used In stock
                          # 10
                          MPN: 8D33-3084-AC
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, RH
                          V8/V8S, Sportpack
                          from £409.24
                          from £409.24
                          ARM ASSEMBLY, UPPER, FRONT SUSPEN, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: DG43-3084-AB
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, RH
                          GT8
                          from £247.39
                          from £247.39
                          ARM ASSEMBLY, FRONT SUSPENSION, UPPER, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 6G33-3084-AB
                          ARM ASSEMBLY, SUSPENSION, FRONT UPPER, RH
                          Up To 12.25MY, Roadster, Less Sportpack
                          from £409.24
                          from £409.24
                          ARM ASSEMBLY FRONT SUSP UPPER Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 703565
                          NUT, M12 HEX FLG
                          from £0.74
                          from £0.74
                          This part replaces part number 699876
                          NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 703180
                          BOLT M12X90, UPPER ARM
                          BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 701183
                          NUT, M12 HEX FLG
                          NUT, M12 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-3B237-BB
                          WASHER, M12, LOWER ARM
                          from £6.92
                          from £6.92
                          WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 4G43-13D026-AA
                          SCREW, SHIELD RETAINING
                          from £0.47
                          from £0.47
                          SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                          # 16
                          MPN: GD2Y-1K024-KA
                          SEALING PLUG
                          GT8, Centre Lock Wheel
                          from £38.30
                          from £38.30
                          SEALING PLUG Genuine Aston Martin - New (to order)
                          # 17
                          MPN: GD2Y-2N389-AB
                          SCREW, M8X35, CAP HEAD
                          GT8, Centre Lock Wheel
                          from £1.74
                          from £1.74
                          SCREW, M8X35, CAP HEAD Genuine Aston Martin - New (to order)
                          # 18
                          MPN: GD2Y-2B663-DA
                          COLLAR, DRIVE PEG
                          GT8, Centre Lock Wheel
                          from £88.08
                          from £88.08
                          COLLAR, DRIVE PEG Genuine Aston Martin - New (to order)
                          # 19
                          MPN: GD2Y-2B663-CA
                          SPECIAL NUT, DRIVE PEG
                          GT8, Centre Lock Wheel
                          SPECIAL NUT, DRIVE PEG Genuine Aston Martin - New (to order)
