aston martin v8 vantage (2009) front brake system parts diagram

060300-C1 - Front Brake System

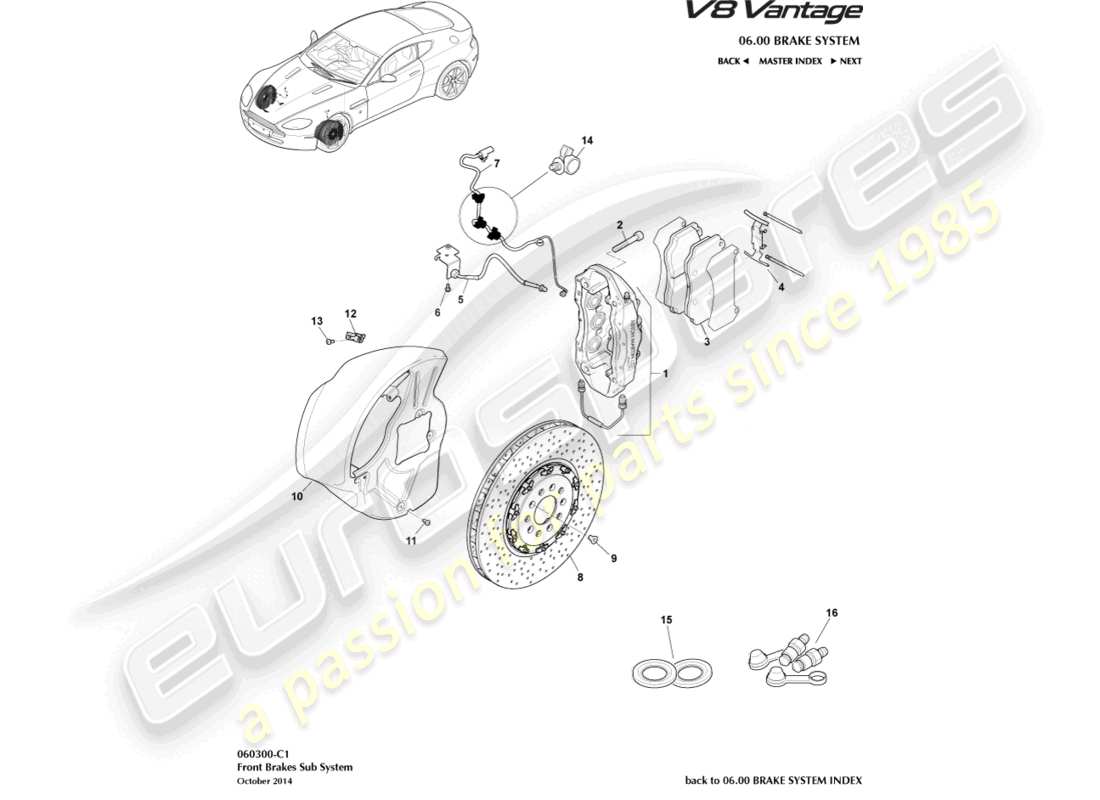

Aston Martin V8 Vantage (2009) Front Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 4G43-2C463-AA
              CALIPER ASSY, LH, LESS PADS
              Grey. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, GREY, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C463-CA
              CALIPER ASSY, LH, LESS PADS
              Black. Up to VIN C16310, 355mm discs, V8
              from £318.19
              from £318.19
              CALIPER, FRONT, BLACK, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C463-DA
              CALIPER ASSY, LH, LESS PADS
              Red. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, RED, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C463-EA
              CALIPER ASSY, LH, LESS PADS
              Silver. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, SILVER, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C463-FA
              CALIPER ASSY, LH, LESS PADS
              Yellow. Up to VIN C16310, 355mm discs, V8
              from £391.60
              from £391.60
              CALIPER, FRONT, YELLOW, LESS PADS, LH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C462-AA
              CALIPER ASSY, RH, ESS PADS
              Grey. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, GREY, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C462-CA
              CALIPER ASSY, RH, LESS PADS
              Black. Up to VIN C16310, 355mm discs, V8
              from £318.19
              from £318.19
              CALIPER, FRONT, BLACK, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C462-DA
              CALIPER ASSY, RH, LESS PADS
              Red. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, RED, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C462-EA
              CALIPER ASSY, RH, LESS PADS
              Silver. Up to VIN C16310, 355mm discs, V8
              from £327.83
              from £327.83
              CALIPER, FRONT, SILVER, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 1
              MPN: 4G43-2C462-FA
              CALIPER ASSY, RH, LESS PADS
              Yellow. Up to VIN C16310, 355mm discs, V8
              from £391.60
              from £391.60
              CALIPER, FRONT, YELLOW, LESS PADS, RH Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-AA
              CALIPER ASSY, LH, LESS PADS
              Grey. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-CA
              CALIPER ASSY, LH, LESS PADS
              Black. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-DA
              CALIPER ASSY, LH, LESS PADS
              Red. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-EA
              CALIPER ASSY, LH, LESS PADS
              Silver. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-FA
              CALIPER ASSY, LH, LESS PADS
              Yellow. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-AA
              CALIPER ASSY, RH, LESS PADS
              Grey. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-CA
              CALIPER ASSY, RH, ESS PADS
              Black. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-DA
              CALIPER ASSY, RH, LESS PADS
              Red. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-EA
              CALIPER ASSY, RH, LESS PADS
              Silver. From 11MY To 12.25MY, 380mm discs, V8S
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-FA
              CALIPER ASSY, RH, LESS PADS
              Yellow. From 11MY To 12.25MY, 380mm discs, V8S
              from £734.32
              from £734.32
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-AA
              CALIPER ASSY, LH, LESS PADS
              Grey. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-CA
              CALIPER ASSY, LH, LESS PADS
              Black. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-DA
              CALIPER ASSY, LH, LESS PADS
              Red. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-EA
              CALIPER ASSY, LH, LESS PADS
              Silver. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG43-2C463-FA
              CALIPER ASSY, LH, LESS PADS
              Yellow. From 12.25MY, VIN D16311, 380mm discs, All V8
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-AA
              CALIPER ASSY, RH, LESS PADS
              Grey. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-CA
              CALIPER ASSY, RH, LESS PADS
              Black. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-DA
              CALIPER ASSY, RH, LESS PADS
              Red. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-EA
              CALIPER ASSY, RH, LESS PADS
              Silver. From 12.25MY, VIN D16311, 380mm discs, All V8
              from £1,085.75
              from £1,085.75
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG43-2C462-FA
              CALIPER ASSY, RH, LESS PADS
              Yellow. From 12.25MY, VIN D16311, 380mm discs, All V8
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-JA
              CALIPER ASSY, LH, LESS PADS
              Black Anodised. From 15MY, 380mm discs, All V8
              from £491.56
              from £491.56
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-JA
              CALIPER ASSY, RH, LESS PADS
              Black Anodised. From 15MY, 380mm discs, All V8
              from £491.56
              from £491.56
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-AA
              CALIPER ASSY, LH, LESS PADS
              GT8 Grey
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-CA
              CALIPER ASSY, LH, LESS PADS
              GT8 BLACK
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-DA
              CALIPER ASSY, LH, LESS PADS
              GT8 red
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-FA
              CALIPER ASSY, LH, LESS PADS
              GT8 YELLOW
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-HA
              CALIPER ASSY, LH, LESS PADS
              GT8 orange
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C463-JA
              CALIPER ASSY, LH, LESS PADS
              GT8 Anodised Black
              from £999.68
              from £999.68
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-AA
              CALIPER ASSY, RH, LESS PADS
              GT8 Grey
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-CA
              CALIPER ASSY, RH, LESS PADS
              GT8 BLACK
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-DA
              CALIPER ASSY, RH, LESS PADS
              GT8 red
              from £947.74
              from £947.74
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-FA
              CALIPER ASSY, RH, LESS PADS
              GT8 YELLOW
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-HA
              CALIPER ASSY, RH, LESS PADS
              GT8 orange
              from £1,062.16
              from £1,062.16
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: HG3Y-2C462-JA
              CALIPER ASSY, RH, LESS PADS
              GT8 Anodised Black
              from £999.68
              from £999.68
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-HA
              CALIPER ASSY, LH, LESS PADS
              AMR Orange
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C463-MA
              CALIPER ASSY, LH, LESS PADS
              AMR Green
              from £1,626.89
              from £1,626.89
              CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-HA
              CALIPER ASSY, RH, LESS PADS
              AMR Orange
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 1
              MPN: BG33-2C462-MA
              CALIPER ASSY, RH, LESS PADS
              AMR Green
              from £1,626.89
              from £1,626.89
              CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
              # 2
              MPN: 4G43-2C564-AB
              BOLT, CALIPER TO KNUCKLE
              V8 Up to VIN C16310. Do Not Re-Use. Always Replace
              from £1.77
              from £1.77
              BOLT-M12 X 1.5 X 80 Genuine Aston Martin - New In stock
              # 2
              MPN: 8D33-2C564-AA
              BOLT, CALIPER TO KNUCKLE
              V8S Up to 12.25MY. Do Not Re-Use. Always Replace
              from £6.43
              from £6.43
              BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
              # 2
              MPN: 8D33-2C564-AA
              BOLT, CALIPER TO KNUCKLE
              All From 12.25MY, VIN D16311.Do Not Re-Use. Always Replace
              from £6.43
              from £6.43
              BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
              # 3
              MPN: 4G43-28-10941
              KIT, BRAKE BAD, FRONT, AXLE SET
              Up to VIN C16310, 355mm discs, V8
              from £397.81
              from £397.81
              KIT, BRAKE PADS & SHIMS, FRONT Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2D007-AB
              KIT, BRAKE BAD, FRONT, AXLE SET
              From 11MY To 12.25MY, 380mm discs, V8S
              from £702.13
              from £702.13
              KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2D007-AB
              KIT, BRAKE BAD, FRONT, AXLE SET
              From 12.25MY, VIN D16311, 380mm discs
              from £702.13
              from £702.13
              KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2D007-AB
              KIT, BRAKE BAD, FRONT, AXLE SET
              GT8
              from £702.13
              from £702.13
              KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
              # 4
              MPN: 4G43-2C588-AA
              KIT, BRAKE PAD, SPRING AND PIN
              1 per caliper, Up to VIN C16310
              from £45.59
              from £45.59
              KIT, PAD SPRING & PIN, FRONT Genuine Aston Martin - New In stock
              # 4
              MPN: AD43-2C588-AA
              KIT, BRAKE PAD, SPRING AND PIN
              1 per caliper, V8S/ All From 12.25MY, VIN D16311
              from £66.53
              from £66.53
              KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
              # 4
              MPN: AD43-2C588-AA
              KIT, BRAKE PAD, SPRING AND PIN
              1 per caliper, GT8
              from £66.53
              from £66.53
              KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
              # 5
              MPN: 4G43-2078-AD
              HOSE ASSY, BRAKE FRONT, LH
              Up To VIN C16310
              from £127.24
              from £127.24
              HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
              HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - Used In stock
              # 5
              MPN: AD43-2078-AD
              HOSE ASSY, BRAKE FRONT, LH
              V8S/ All From 12.25MY, VIN D16311
              from £140.01
              from £140.01
              HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
              # 5
              MPN: 4G43-2078-BD
              HOSE ASSY, BRAKE FRONT, RH
              Up To VIN C16310
              from £254.47
              from £254.47
              HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
              # 5
              MPN: AD43-2078-BD
              HOSE ASSY, BRAKE FRONT, RH
              V8S/ All From 12.25MY, VIN D16311
              from £79.54
              from £79.54
              HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
              # 6
              MPN: 703265
              BOLT, M6X16
              from £0.47
              from £0.47
              SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
              # 7
              MPN: 4G43-2L507-AB
              LEAD, PAD WEAR
              Up To VIN C16310
              from £15.75
              from £15.75
              LEAD, PAD WEAR, FRONT Genuine Aston Martin - New (to order)
              LEAD, PAD WEAR, FRONT Genuine Aston Martin - Used In stock
              # 7
              MPN: 8D33-2L507-AA
              LEAD, PAD WEAR
              V8S/ All From 12.25MY, VIN D16311
              from £40.69
              from £40.69
              PAD WEAR LEAD FRONT Genuine Aston Martin - New (to order)
              # 8
              MPN: 4G43-28-10265
              BRAKE DISC, FRONT, VENTED
              Up to VIN C16310, 355mm, V8
              from £188.73
              from £188.73
              FRONT BRAKE DISC, VENTILATED Genuine Aston Martin - New (to order)
              # 8
              MPN: BG33-1125-AA
              BRAKE DISC, FRONT, VENTED
              From VIN D16311 To VIN C18074, 380mm, V8
              from £1,022.34
              from £1,022.34
              BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
              # 8
              MPN: BG33-1125-AA
              BRAKE DISC, FRONT, VENTED
              Up To C18074, 380mm, V8S
              from £1,022.34
              from £1,022.34
              BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
              # 8
              MPN: BG33-1125-BA
              BRAKE DISC, FRONT, VENTED
              From C18075 (Aluminium/Iron "Co-Cast"), 380mm, All V8
              from £559.32
              from £559.32
              BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
              # 8
              MPN: HG3Y-1125-AA
              BRAKE DISC, FRONT, VENTED
              GT8
              from £1,446.71
              from £1,446.71
              BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
              # 9
              MPN: 4G43-2N389-AA
              SCREW, RETAINING, BRAKE DISC
              from £0.47
              from £0.47
              SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
              # 10
              MPN: 4G43-2K005-AB
              SHIELD ASSY, REAR BRAKE DISC, LH
              Up To VIN C16310
              SHIELD ASSEMBLY, REAR BRAKE DISC, LH Genuine Aston Martin - New (to order)
              # 10
              MPN: AD43-2K005-AB
              SHIELD ASSY, REAR BRAKE DISC, LH
              V8S/ All From 12.25MY, VIN D16311
              from £15.36
              from £15.36
              SHIELD FRONT BRAKE DISC, LH Genuine Aston Martin - New (to order)
              SHIELD FRONT BRAKE DISC, LH Genuine Aston Martin - Used In stock
              # 10
              MPN: 4G43-2K004-AB
              SHIELD ASSY, REAR BRAKE DISC, RH
              Up To VIN C16310
              SHIELD ASSEMBLY, REAR BRAKE DISC, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: AD43-2K004-AB
              SHIELD ASSY, REAR BRAKE DISC, RH
              V8S/ All From 12.25MY, VIN D16311
              from £42.00
              from £42.00
              SHIELD FRONT BRAKE DISC, RH Genuine Aston Martin - New (to order)
              # 11
              MPN: 4G43-13D026-AA
              SCREW, M6, RETAINING, SHIELD
              from £0.47
              from £0.47
              SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
              # 12
              MPN: 4G43-90-10039
              SENSOR, WHEEL SPEED
              from £49.57
              from £49.57
              SENSOR-ABS Genuine Aston Martin - New (to order)
              SENSOR-ABS Genuine Aston Martin - Used In stock
              # 13
              MPN: 4G43-13D026-BA
              SCREW, WHEEL SPEED SENSOR
              from £0.73
              from £0.73
              SCREW M5 Genuine Aston Martin - New (to order)
              # 14
              MPN: 4G43-65-10059
              CLIP, FIRTREE, PAD WEAR LEAD
              from £0.47
              from £0.47
              CLIP, FIRTREE Genuine Aston Martin - New (to order)
              # 15
              MPN: 4G43-32180-AA
              KIT, DUST BOOT, FRONT CALIPER
              per caliper
              from £30.10
              from £30.10
              KIT, DUST BOOT, FRONT CALIPER Genuine Aston Martin - New (to order)
              # 15
              MPN: 4G43-2C563-AA
              KIT, BLEED SCREW
              per caliper
              from £10.30
              from £10.30
              KIT, BLEED SCREW Genuine Aston Martin - New (to order)
              # 15
              MPN: 4G43-33693-AA
              CAP, BLEED SCREW
              from £16.93
              from £16.93
              CAP, BLEED SCREW Genuine Aston Martin - New (to order)
