060600-C1 - Brake Actuator Assembly, Manual

Aston Martin V8 Vantage (2009) Brake Actuator Assembly, Manual Parts Diagram

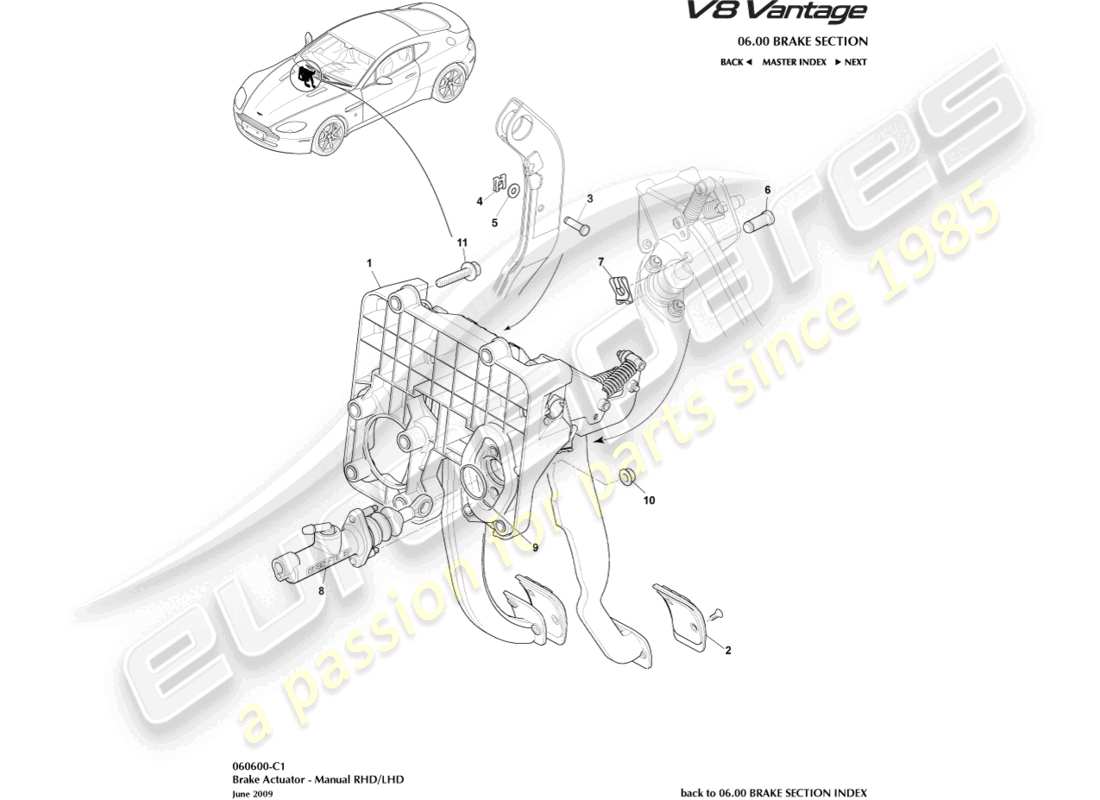

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-2450-AI
                  PEDAL BOX ASSEMBLY, MANUAL, LHD, SILVER
                  from £551.45
                  from £551.45
                  PEDAL BOX ASSEMBLY, MANUAL, LHD, SILVER Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 6G33-2450-EB
                  PEDAL BOX ASSEMBLY, MANUAL, LHD, BLACK
                  13MY
                  from £627.58
                  from £627.58
                  PEDAL BOX ASSEMBLY, MANUAL, LHD, BLACK Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 6G33-2450-CI
                  PEDAL BOX ASSEMBLY, MANUAL, RHD, SILVER
                  from £580.02
                  from £580.02
                  PEDAL BOX ASSEMBLY, MANUAL, RHD, SILVER Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 6G33-2450-GB
                  PEDAL BOX ASSEMBLY, MANUAL, RHD, BLACK
                  13MY
                  from £304.09
                  from £304.09
                  PEDAL BOX ASSEMBLY, MANUAL, RHD, BLACK Genuine Aston Martin - New (to order)
                  PEDAL BOX ASSEMBLY, MANUAL, RHD, BLACK Genuine Aston Martin - Used In stock
                  # 2
                  MPN: 4G43-2D042-AA
                  KIT, MANUAL BRAKE & CLUTCH PEDAL
                  from £298.06
                  from £298.06
                  KIT PAD BRK PDL Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 9G43-2D042-AA
                  PEDAL PAD KIT, SILVER
                  10MY
                  from £102.70
                  from £102.70
                  PEDAL PAD KIT, SILVER Genuine Aston Martin - New (to order)
                  # 2
                  MPN: CD33-2D042-CA
                  PEDAL PAD KIT, BLACK
                  13MY
                  from £314.27
                  from £314.27
                  PEDAL PAD KIT, BLACK Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 29-84879
                  PIN, GROOVE JOINT
                  from £10.11
                  from £10.11
                  JOINT PIN Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-27328-AA
                  CLIP, SAFETY, NOM SHAFT, 5/16"
                  from £0.47
                  from £0.47
                  CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 703273
                  WASHER, WAVE SPRING
                  from £0.47
                  from £0.47
                  WASHER, WAVE SPRING Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 29-84879
                  PIN, PIVOT - MASTER CYLINDER
                  from £10.11
                  from £10.11
                  JOINT PIN Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-27328-AA
                  CLIP, PIVOT PIN
                  from £0.47
                  from £0.47
                  CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 4G43-7578-AA
                  KIT, CLUTCH MASTER CYLINDER
                  from £161.63
                  from £161.63
                  KIT, MASTER CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
                  KIT, MASTER CYLINDER ASSEMBLY Genuine Aston Martin - Used In stock
                  # 9
                  MPN: 33-84098
                  LIP SEAL, MASTER CYLINDER
                  from £5.44
                  from £5.44
                  LIP SEAL, RESERVOIR Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 701342-PK
                  NUT, FLG, M8
                  Pack of 5
                  from £7.87
                  from £7.87
                  NUT M8 HEX PT PLS8(5) Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 703584
                  SCREW, FLG, M8X40
                  from £0.51
                  from £0.51
                  SCREW M8X40 FLANGE HD 8 Genuine Aston Martin - New (to order)
