060700 - Power Brake Assembly

Aston Martin V8 Vantage (2009) Power Brake Assembly Parts Diagram

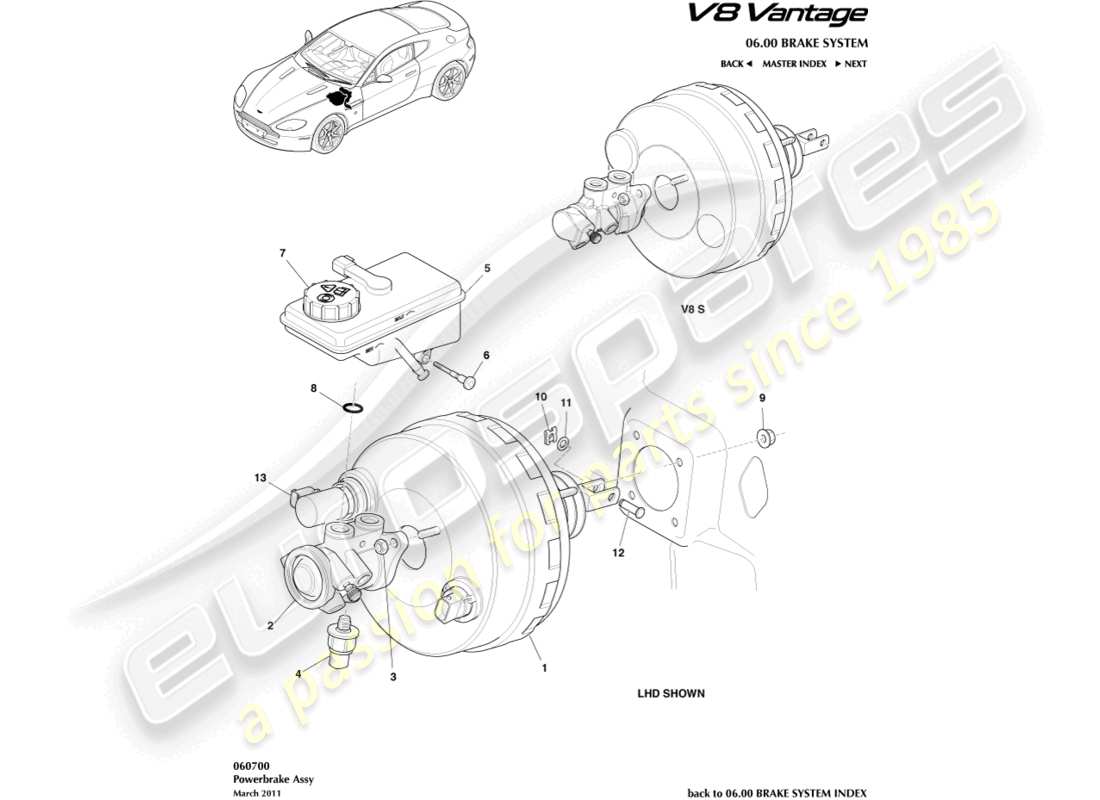

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # -
                      MPN: 4G43-2B195-AB
                      MASTER CYLINDER AND VACUUM BOOSTER
                      Up to (V) C06006
                      from £355.61
                      from £355.61
                      MASTER CYLINDER AND VACUUM BOOSTER Genuine Aston Martin - New (to order)
                      # -
                      MPN: 7G33-2B195-AA
                      MASTER CYLINDER AND VACUUM BOOSTER
                      From (V) C06007
                      MASTER CYLINDER AND VACUUM BOOSTER Genuine Aston Martin - New (to order)
                      # -
                      MPN: AD43-2B195-AB
                      MASTER CYLINDER AND VACUUM BOOSTER
                      V8S/ 12.25MY
                      from £586.91
                      from £586.91
                      MASTER CYLINDER WITH BOOSTER, BRAKE Genuine Aston Martin - New (to order)
                      # 1
                      MPN: 4G43-2005-AA
                      KIT, BOOSTER ASSY
                      Up to (V) C06006
                      Genuine Aston Martin (no longer available to order)
                      KIT, BOOSTER ASSEMBLY Genuine Aston Martin - Used In stock
                      With part 13
                      # 1
                      MPN: 7G33-2005-AA
                      KIT, BOOSTER ASSY
                      From (V) C06007
                      from £311.73
                      from £311.73
                      KIT, BOOSTER ASSEMBLY Genuine Aston Martin - New (to order)
                      # 1
                      MPN: AD43-2005-AA
                      KIT, BOOSTER ASSY
                      V8S/ 12.25MY
                      from £148.25
                      from £148.25
                      KIT, BOOSTER ASSEMBLY Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-33-10211
                      KIT, MASTER CYLINDER ASSY
                      from £213.81
                      from £213.81
                      BR MASTER CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
                      BR MASTER CYLINDER ASSEMBLY Genuine Aston Martin - Used In stock
                      # 2
                      MPN: AD43-2140-AA
                      KIT, MASTER CYLINDER ASSY
                      V8S/ 12.25MY
                      from £114.07
                      from £114.07
                      KIT, MASTER CYLINDER, BRAKE Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 703978
                      NUT, LOCK, M8
                      Mstr Cyl to Booster
                      from £1.82
                      from £1.82
                      LOCKNUT Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 4G43-33-10214
                      TRANSDUCER, PRESSURE
                      from £54.08
                      from £54.08
                      TRANSDUCER, PRESSURE Genuine Aston Martin - New (to order)
                      TRANSDUCER, PRESSURE Genuine Aston Martin - Used In stock
                      # 5
                      MPN: 4G43-33-10212
                      KIT, RESERVOIR AND PLUG
                      from £82.31
                      from £82.31
                      BR RESERVOIR&PLUG KT Genuine Aston Martin - New (to order)
                      BR RESERVOIR&PLUG KT Genuine Aston Martin - Used In stock
                      # 6
                      MPN: 4G43-33-10216
                      SCREW, RESERVOIR RETAINER
                      from £4.64
                      from £4.64
                      SCREW, RESERVOIR RETAINER Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-33-10213
                      CAP, RESERVOIR
                      from £13.77
                      from £13.77
                      CAP, RESERVOIR Genuine Aston Martin - New (to order)
                      CAP, RESERVOIR Genuine Aston Martin - Used In stock
                      # 8
                      MPN: 4G43-33-10215
                      SEAL, RESERVOIR TO M/CYLINDER
                      from £6.26
                      from £6.26
                      BR RESERVOIR PLUG Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 6G33-27328-AA
                      CLIP, SAFETY, NOM SHAFT 5/16"
                      from £0.47
                      from £0.47
                      CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 703273
                      WASHER, WAVE SPRING
                      from £0.47
                      from £0.47
                      WASHER, WAVE SPRING Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 29-84879
                      PIN, JOINT
                      from £10.11
                      from £10.11
                      JOINT PIN Genuine Aston Martin - New (to order)
                      # -
                      -
                      BRAKE FLUID, SUPER DOT 4
                      # 13
                      MPN: 9G43-33-11077
                      PEDAL TRAVEL SENSOR KIT
                      from £87.14
                      from £87.14
                      PEDAL TRAVEL SENSOR KIT Genuine Aston Martin - New (to order)
