aston martin v8 vantage (2009) transmission ecu parts diagram

071111 - Transmission ECU

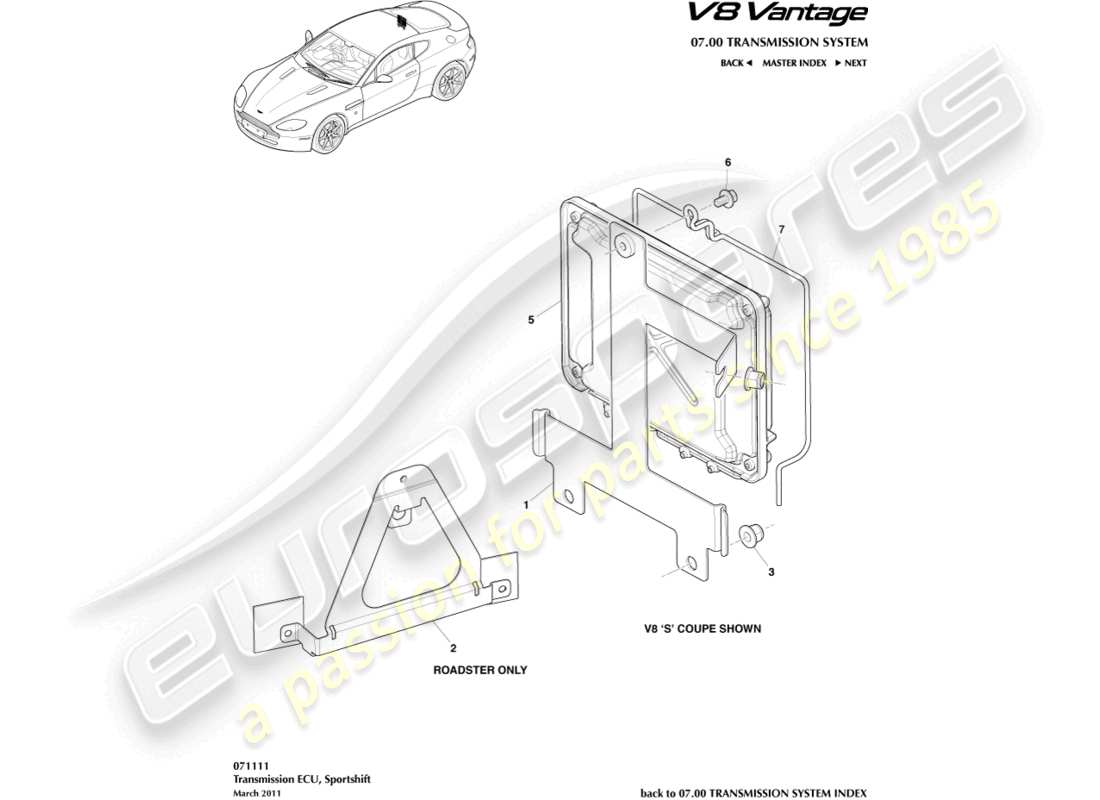

Aston Martin V8 Vantage (2009) Transmission ECU Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 6G33-7C572-AC
                BRACKET, CLAMP PLATE TCU, COUPE
                from £21.19
                from £21.19
                BRACKET, CLAMP PLATE TCU, COUPE Genuine Aston Martin - New (to order)
                # 2
                MPN: 6G33-7C572-BA
                BRACKET, CLAMP PLATE TCU, ROADSTER
                from £20.65
                from £20.65
                BRACKET, CLAMP PLATE TCU, ROADSTER Genuine Aston Martin - New (to order)
                # 3
                MPN: 702429
                NUT, M6
                from £0.47
                from £0.47
                LOCKNUT M6 Genuine Aston Martin - New (to order)
                # 4
                MPN: 703265
                SCREW, M6 X 16MM
                from £0.47
                from £0.47
                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                # 5
                MPN: 9G33-42-10544
                TCU ASSEMBLY, WITH WARNING LABEL
                from £652.61
                from £652.61
                TCU ASSEMBLY, WITH WARNING LABEL Genuine Aston Martin - New (to order)
                # 6
                MPN: 703206
                SCREW, M5 X 8MM
                from £0.96
                from £0.96
                SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
                # 7
                MPN: 1R12-383331-AB
                CLAMP, TCU
                CLAMP, TCU Genuine Aston Martin - New (to order)
