aston martin v8 vantage (2009) clutch system, sportshift 6 spd parts diagram

080000-R3 - Clutch System, Sportshift 6 spd

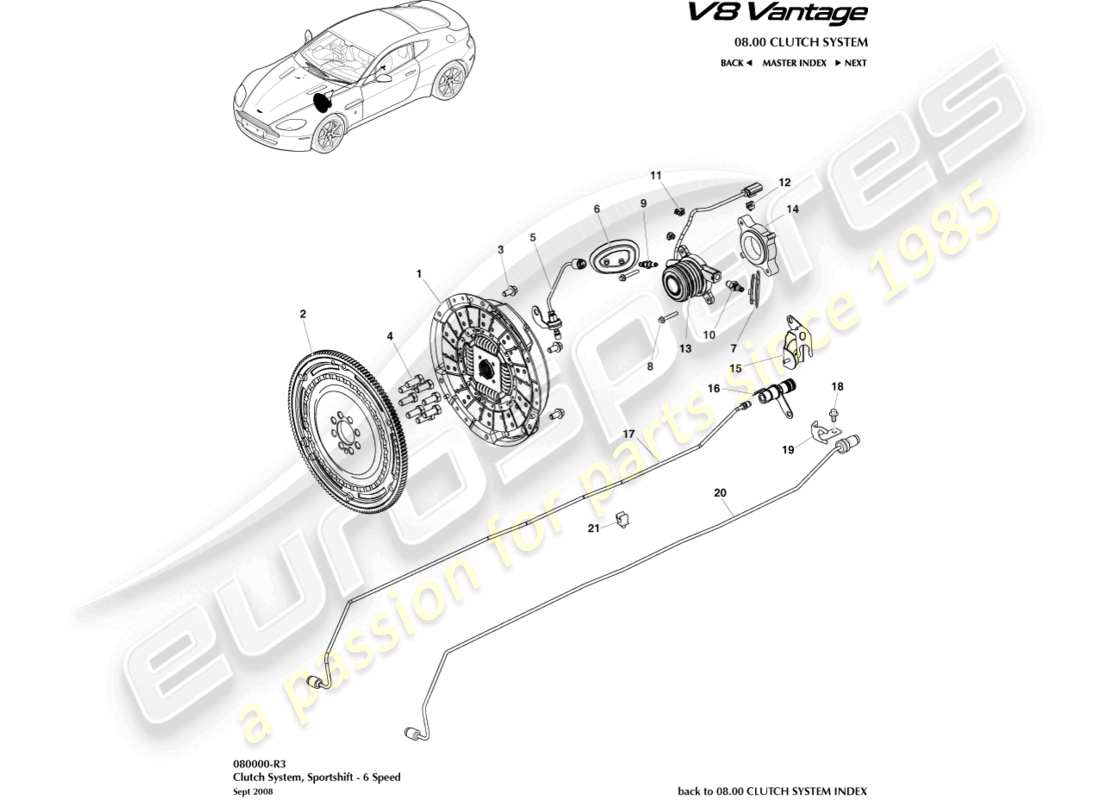

Aston Martin V8 Vantage (2009) Clutch System, Sportshift 6 spd Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 6G33-7540-BH
                CLUTCH PLATE & HOUSING ASSEMBLY, SPORTSHIFT
                Up To 09MY, 4.3Litre Engine
                from £1,551.22
                from £1,551.22
                CLUTCH PLATE & HOUSING ASSEMBLY, SPORTSHIFT Genuine Aston Martin - New (to order)
                # 1
                MPN: 9G33-7540-BD
                CLUTCH PLATE & HOUSING ASSEMBLY, SPORTSHIFT
                From 09MY, 4.7Litre Engine
                from £955.33
                from £955.33
                CLUTCH PLATE & HOUSING ASSEMBLY, SPORTSHIFT Genuine Aston Martin - New (to order)
                # 2
                MPN: 6G33-6375-DD

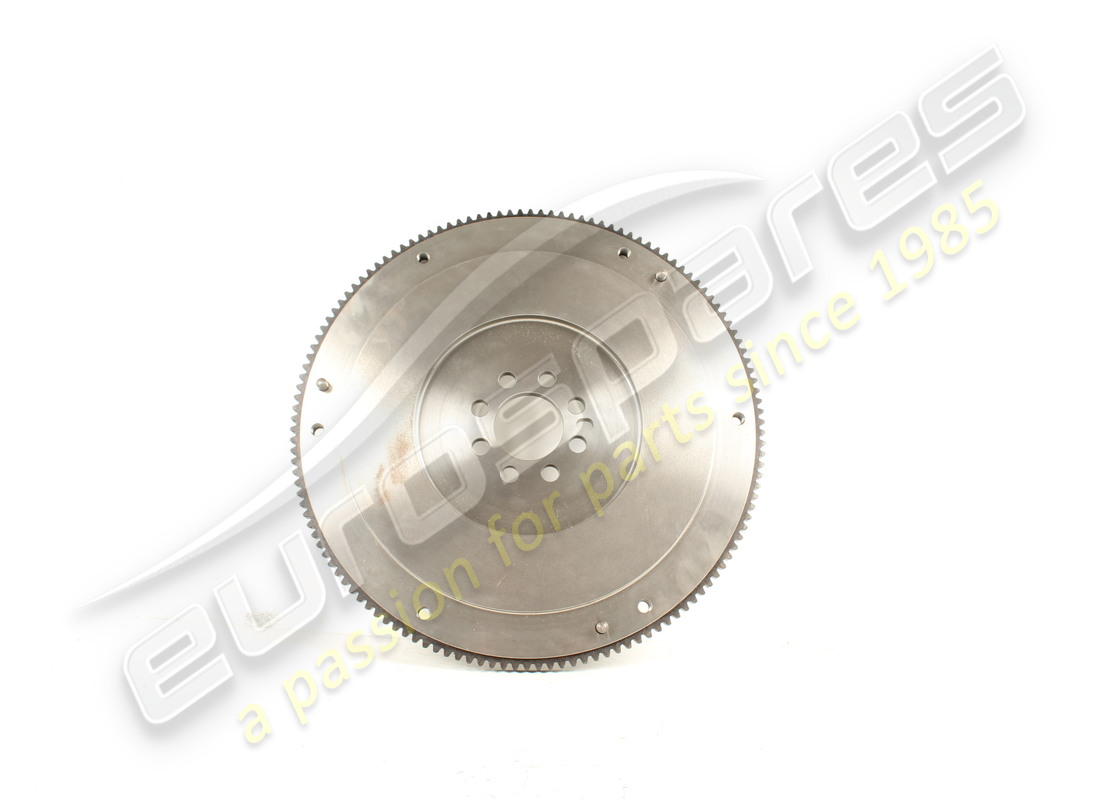

                FLYWHEEL ASSEMBLY
                Up to 09MY
                from £1,459.48
                from £1,459.48
                FLYWHEEL ASSEMBLY Genuine Aston Martin - New (to order)

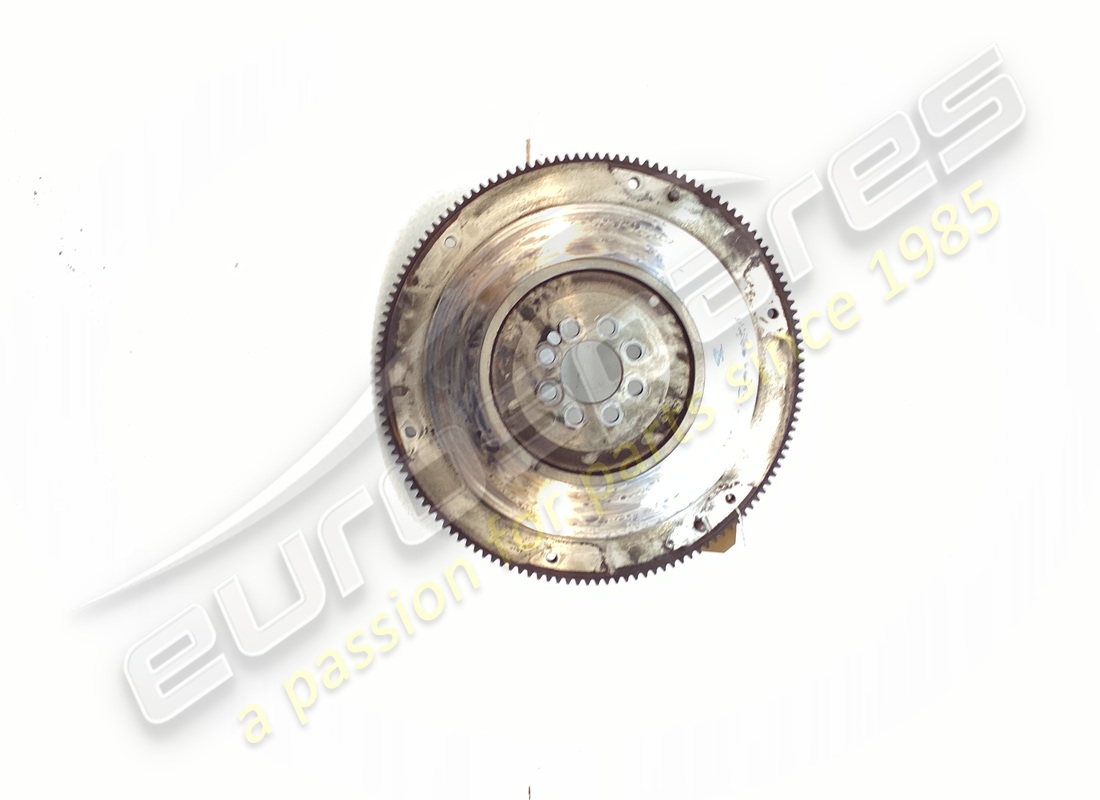

                FLYWHEEL ASSEMBLY Genuine Aston Martin - Used In stock
                # 2
                MPN: 9G33-6375-AB
                FLYWHEEL ASSEMBLY
                FROM 09MY
                from £3,381.63
                from £3,381.63
                FLYWHEEL ASSEMBLY Genuine Aston Martin - New (to order)
                # 3
                MPN: 703186
                BOLT, FLG, M10 X 20MM
                from £2.14
                from £2.14
                BOLT M10 X 20 FH Genuine Aston Martin - New (to order)
                # 4
                MPN: 6G33-486859-AA-PK
                BOLT, M12 X 30MM LG
                Pack of 10
                from £39.10
                from £39.10
                BOLT, M12X30 (pack 10) Genuine Aston Martin - New (to order)
                # 5
                MPN: 6G33-7H552-AA
                PIPE, BLEEDER
                from £36.31
                from £36.31
                PIPE, BLEEDER Genuine Aston Martin - New (to order)
                PIPE, BLEEDER Genuine Aston Martin - Used In stock
                # 6
                MPN: 6G33-T10B34-BA
                GROMMET, CLUTCH BLEED
                from £2.70
                from £2.70
                PATCH - CL HSG Genuine Aston Martin - New (to order)
                # 7
                MPN: 6G33-T10B34-BA
                GROMMET, CLUTCH FEED
                from £2.70
                from £2.70
                PATCH - CL HSG Genuine Aston Martin - New (to order)
                # 8
                MPN: 703198
                BOLT, M6 X 40MM
                Up To VIN C18512
                from £0.47
                from £0.47
                BOLT M6 X 40 Genuine Aston Martin - New (to order)
                # -
                -
                SCREW, M6X1.0X25 HEX
                FROM VIN C18513
                # 9
                MPN: 6G33-7K640-CA
                CONNECTOR ASSEMBLY, BLEEDER
                from £71.17
                from £71.17
                CONNECTOR ASSEMBLY, BLEEDER Genuine Aston Martin - New (to order)
                # 10
                MPN: 6G33-7K640-DA
                CONNECTOR ASSEMBLY, PRESSURE
                from £19.68
                from £19.68
                CONNECTOR ASSEMBLY, PRESSURE Genuine Aston Martin - New (to order)
                # 11
                MPN: 4G43-65-10059
                CLIP, 8MM
                from £0.47
                from £0.47
                CLIP, FIRTREE Genuine Aston Martin - New (to order)
                # 13
                MPN: 6G33-7A564-AA
                CYLINDER, SLAVE, SPORTSHIFT, GREEN BELLOWS
                Includes items 9,10&12
                from £634.62
                from £634.62
                CYLINDER, SLAVE, SPORTSHIFT, GREEN BELLOWS Genuine Aston Martin - New (to order)
                # 14
                MPN: 6G33-209031-AB
                SPACER, SLAVE CYLINDER
                Up To VIN C18512
                from £131.19
                from £131.19
                SPACER - CSC Genuine Aston Martin - New (to order)
                # 15
                MPN: 6G33-R7N630-CE
                BRACKET, CLUTCH LINE
                Up To VIN C15848
                BRACKET, CLUTCH LINE Genuine Aston Martin - New (to order)
                # 16
                MPN: 6G33-7J200-AB
                BRACKET ASSEMBLY, TRANSMISSION TUBE
                Up To VIN C15848
                from £310.06
                from £310.06
                BRACKET ASSEMBLY, TRANSMISSION TUBE Genuine Aston Martin - New (to order)
                # 17
                MPN: 6G33-7K502-AA
                TUBE ASSEMBLY, MASTER TO SLAVE CYL
                Up To VIN C15848, "Dry Break"
                from £133.59
                from £133.59
                TUBE ASSEMBLY, MASTER TO SLAVE CYLINDER Genuine Aston Martin - New (to order)
                # 18
                MPN: W500422-S
                SCREW, FLG HD, M8 X 1.25 X 16MM
                FROM VIN C15849
                SCREW, FLANGE HD, M8 X 1.25 X 16MM Genuine Aston Martin - New (to order)
                # 19
                MPN: BG33-R7N630-CA
                BRACKET, CLUTCH TUBE
                FROM VIN C15849
                BRACKET, CLUTCH TUBE ASSEMBLY Genuine Aston Martin - New (to order)
                # 20
                MPN: BG33-7608-CA
                TUBE ASSEMBLY, MASTER TO SLAVE CYL, ASM
                FROM VIN C15849
                from £173.95
                from £173.95
                TUBE ASSEMBLY, MASTER TO SLAVE CYLINDER , ASM Genuine Aston Martin - New (to order)
                # 21
                MPN: 702971
                CLIP
                FROM VIN C15849
                from £3.97
                from £3.97
                CLIP, 8-10 X 6.5 X 0.5-4.5 Genuine Aston Martin - New (to order)
