aston martin v8 vantage (2009) clutch system, sportshift 7 spd parts diagram

080000-R4 - Clutch System, Sportshift 7 spd

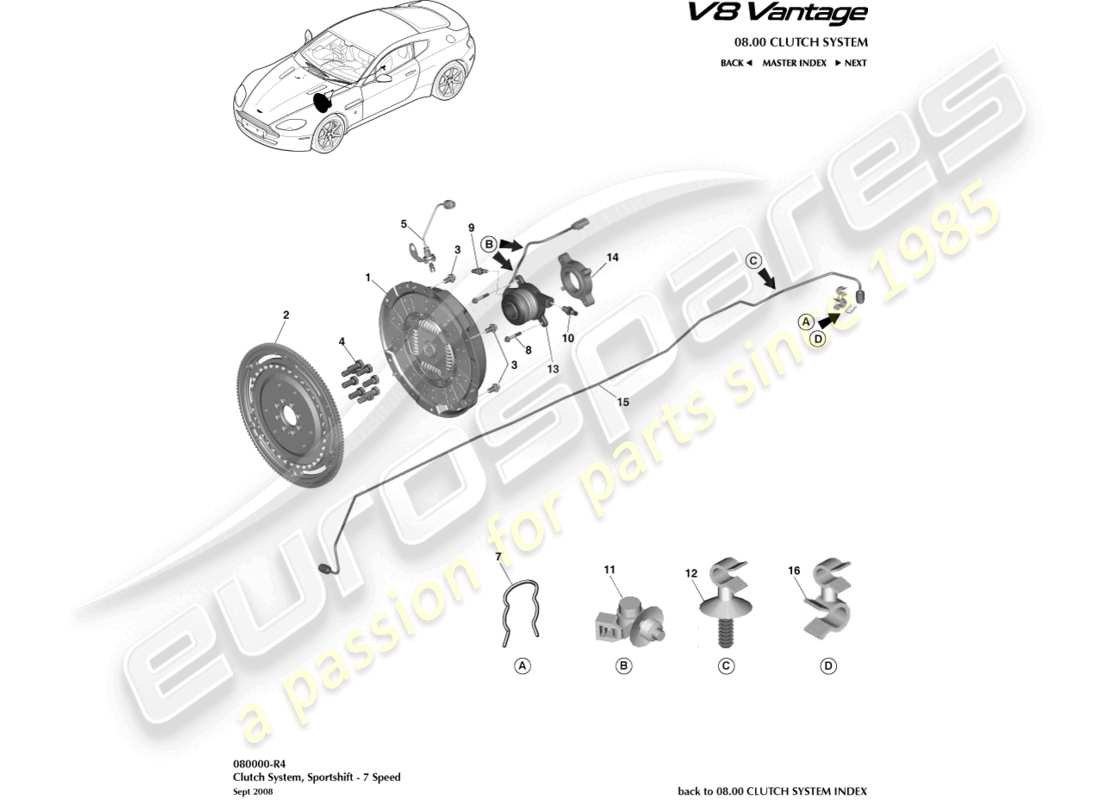

Aston Martin V8 Vantage (2009) Clutch System, Sportshift 7 spd Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 9G33-7540-BD
                      CLUTCH ASSEMBLY, 7SPD SPORTSHIFT
                      V8 4.7L & V8 S from VIN C15702
                      from £955.33
                      from £955.33
                      CLUTCH PLATE & HOUSING ASSEMBLY, SPORTSHIFT Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 9G33-6375-AB
                      FLYWHEEL ASSEMBLY
                      09MY
                      from £3,381.63
                      from £3,381.63
                      FLYWHEEL ASSEMBLY Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 703186
                      BOLT, FLG HD, M10 X 20MM
                      from £2.14
                      from £2.14
                      BOLT M10 X 20 FH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 6G33-486859-AA-PK
                      BOLT, M12 X 30MM LG
                      Pack of 10
                      from £39.10
                      from £39.10
                      BOLT, M12X30 (pack 10) Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 6G33-7H552-AA
                      HOSE ASSEMBLY, CLUTCH BLEED
                      from £36.31
                      from £36.31
                      PIPE, BLEEDER Genuine Aston Martin - New (to order)
                      PIPE, BLEEDER Genuine Aston Martin - Used In stock
                      # 6
                      MPN: 6G33-T10B34-BA
                      PATCH, CLUTCH HOUSING
                      Not illustrated
                      from £2.70
                      from £2.70
                      PATCH - CL HSG Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 6G33-33-10673
                      CLIP, ASM HOSE
                      from £4.37
                      from £4.37
                      CLIP, ASM HOSE Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 703198
                      BOLT, M6 X 40MM
                      Up To VIN C18512
                      from £0.47
                      from £0.47
                      BOLT M6 X 40 Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 703025
                      SCREW, M6X1.0X25 HEX
                      FROM VIN C18513
                      from £0.47
                      from £0.47
                      SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 6G33-7K640-CA
                      CONNECTOR ASSEMBLY, BLEED
                      from £71.17
                      from £71.17
                      CONNECTOR ASSEMBLY, BLEEDER Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 6G33-7K640-DA
                      CONNECTOR ASSEMBLY, PRESSURE
                      from £19.68
                      from £19.68
                      CONNECTOR ASSEMBLY, PRESSURE Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 4G43-65-10059
                      CLIP, FIRTREE, 5 X 6.5 X 2MM
                      from £0.47
                      from £0.47
                      CLIP, FIRTREE Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 701575
                      CLIP, 6 X 6.5 X 0.8-6
                      from £0.47
                      from £0.47
                      CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 6G33-7A564-AA
                      CYLINDER, CLUTCH SLAVE
                      from £634.62
                      from £634.62
                      CYLINDER, SLAVE, SPORTSHIFT, GREEN BELLOWS Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 6G33-209031-AB
                      SPACER, CLUTCH SLAVE CYLINDER
                      Up To VIN C18512
                      from £131.19
                      from £131.19
                      SPACER - CSC Genuine Aston Martin - New (to order)
                      # 15
                      MPN: BG33-7608-BA
                      TUBE ASSEMBLY, MASTER CYL TO SLAVE CYL, ASM
                      from £83.70
                      from £83.70
                      TUBE ASSEMBLY, MASTER CYLINDER TO SLAVE CYLINDER , ASM Genuine Aston Martin - New (to order)
                      # 16
                      MPN: 9D33-55-AA
                      CLIP, HOSE DOUBLE, 17MM
                      from £0.76
                      from £0.76
                      CLIP- HOSE-DBLE-17MM Genuine Aston Martin - New (to order)
