aston martin v8 vantage (2009) fuel pipes parts diagram

100103-S1 - Fuel Pipes

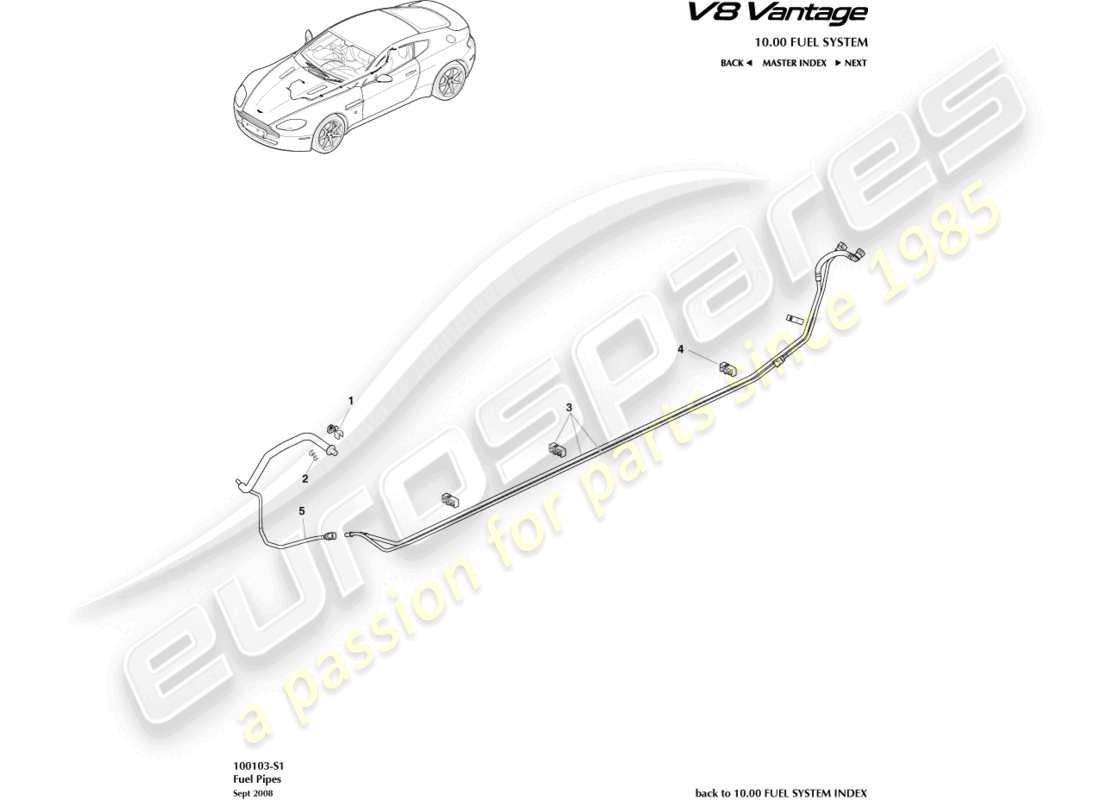

Aston Martin V8 Vantage (2009) Fuel Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 7X43-9294-AA
        CLIP AND CLAMP
        from £2.24
        from £2.24
        CLIP&CLAMP-12.5MMX15 Genuine Aston Martin - New (to order)
        # 2
        MPN: 6G33-105060-AA
        CLIP, DOUBLE PIPE
        from £3.55
        from £3.55
        CLIP, FUEL LINE Genuine Aston Martin - New (to order)
        # 3
        MPN: 6G33-9S284-AD
        PIPE ASSEMBLY, FUEL SUPPLY AND VAPOUR
        Includes 4x item 4
        from £260.23
        from £260.23
        PIPE ASSEMBLY, FUEL SUPPLY AND VAPOUR Genuine Aston Martin - New (to order)
        # 3
        MPN: DG33-9S284-AD
        TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR
        13MY Includes 4x item 4
        from £174.37
        from £174.37
        TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR Genuine Aston Martin - New (to order)
        # 4
        MPN: 6G33-105060-AA
        CLIP, FUEL LINE
        from £3.55
        from £3.55
        CLIP, FUEL LINE Genuine Aston Martin - New (to order)
        # 5
        MPN: 6G33-9F911-AD
        PIPE ASSEMBLY, FUEL, MANIFOLD SUPPLY
        PIPE ASSEMBLY, FUEL, MANIFOLD SUPPLY Genuine Aston Martin - New (to order)
        # 5
        MPN: BG33-9F911-AB
        PIPE ASSEMBLY, FUEL, MANIFOLD SUPPLY
        14MY
        PIPE ASSEMBLY, FUEL, MANIFOLD SUPPLY Genuine Aston Martin - New (to order)
