aston martin v8 vantage (2009) power steering, rhd parts diagram

110200-C2 - Power Steering, RHD

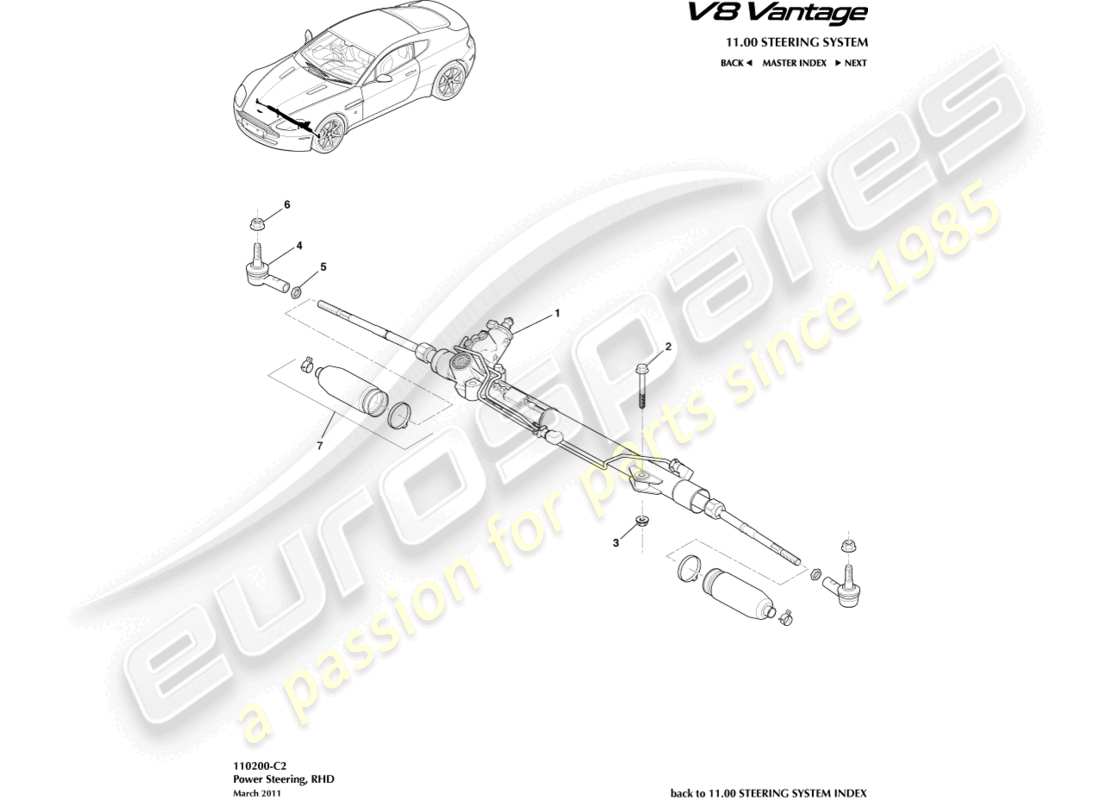

Aston Martin V8 Vantage (2009) Power Steering, RHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 6G33-3200-BG
                POWER STEERING RACK, RHD
                Up To 12.25MY, V8
                from £3,115.06
                from £3,115.06
                POWER STEERING RACK, RHD Genuine Aston Martin - New (to order)
                POWER STEERING RACK, RHD Genuine Aston Martin - Used In stock
                # 1
                MPN: BG33-3200-BA
                POWER STEERING RACK, RHD
                From 12.25MY, V8
                from £6,977.88
                from £6,977.88
                POWER STEERING RACK, RHD Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-3200-BA
                POWER STEERING RACK, RHD
                From 11MY, V8S
                from £6,977.88
                from £6,977.88
                POWER STEERING RACK, RHD Genuine Aston Martin - New (to order)
                # 2
                MPN: 703180
                BOLT, FLG, M12 X 90
                BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                # 3
                MPN: 703565
                NUT, FLG, M12
                from £0.74
                from £0.74
                This part replaces part number 699876
                NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                # 4
                MPN: 4G43-3289-AA
                TRACK ROD END
                from £52.18
                from £52.18
                END ASSEMBLY STNG SPDL AR Genuine Aston Martin - New (to order)
                END ASSEMBLY STNG SPDL AR Eurospares Approved Part - New In stock
                # 5
                MPN: 4G43-3N807-AB
                NUT, LOCKING
                from £6.30
                from £6.30
                NUT, LOCKING Genuine Aston Martin - New (to order)
                # 6
                MPN: 703136-PK
                NUT, NYLOC, M14
                from £4.55
                from £4.55
                NUT-M14X1.5 PTP (2) Genuine Aston Martin - New (to order)
                # 7
                MPN: 4G43-3C560-AA
                BELLOWS KIT, INCLUDES CLIPS
                from £73.81
                from £73.81
                BELLOWS KIT, INCLUDES CLIPS Genuine Aston Martin - New (to order)
                # -
                -
                TRANSDUCER, PRESSURE
