120102 - Air Distribution Components

Aston Martin V8 Vantage (2009) Air Distribution Components Parts Diagram

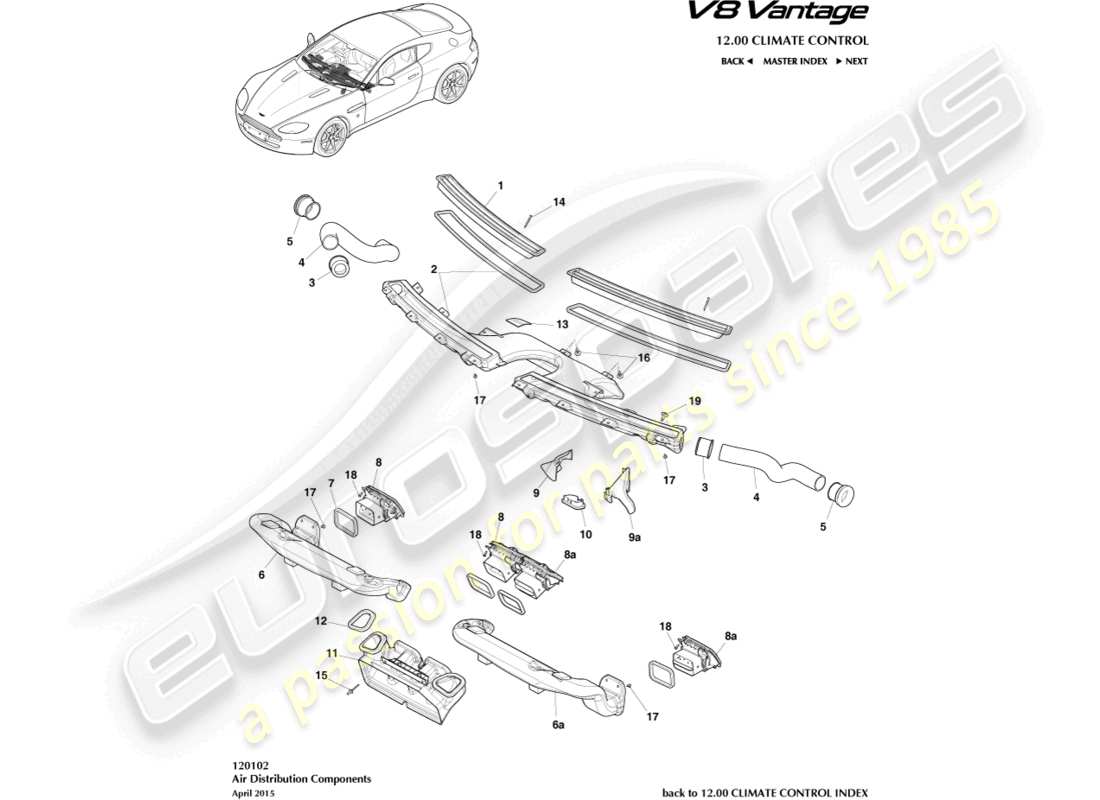

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 4G43-18C491-AJ
                        GRILLE, WINDOW DEFROST
                        from £364.93
                        from £364.93
                        GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 6G33-04432-AD
                        DUCT ASSEMBLY, WINDSHIELD, LHD
                        from £86.88
                        from £86.88
                        DCT ASSEMBLY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 6G33-04432-BD
                        DUCT ASSEMBLY, WINDSHIELD, RHD
                        from £86.88
                        from £86.88
                        DCT ASSEMBLY Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 4G43-19E680-AD
                        CONNECTOR, DEMIST HOSE
                        from £5.69
                        from £5.69
                        CONNECTOR, DEMIST HOSE Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 4G43-19E658-AC
                        HOSE, SIDE WINDOW DEMIST
                        from £17.19
                        from £17.19
                        HOSE-A/C WDO DMSTR Genuine Aston Martin - New (to order)
                        HOSE-A/C WDO DMSTR Genuine Aston Martin - Used In stock
                        # 5
                        MPN: 4G43-C046B80-AC
                        SEAL, DOOR OUTLET
                        from £5.69
                        from £5.69
                        SE I/PNL DEF OPG GRL Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 6G33-19C735-AB
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL
                        Up To VIN C07648
                        from £23.79
                        from £23.79
                        DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 8G43-19C804-AC
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL
                        From VIN D07649 To 10MY
                        DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 8G43-19C804-AD
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL
                        From 10MY To VIN C16037
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 8G43-19C804-AE
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL
                        FROM VIN D16038
                        from £34.43
                        from £34.43
                        DUCT ASSEMBLY, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 6a
                        MPN: 6G33-19C850-AB
                        DUCT ASSEMBLY, LH, INSTRUMENT PANEL
                        Up To VIN C07648
                        from £34.00
                        from £34.00
                        DUCT, LH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 6a
                        MPN: 8G43-19C805-AE
                        DUCT ASSEMBLY, LH, INSTRUMENT PANEL
                        FROM VIN D07649
                        from £50.87
                        from £50.87
                        DUCT ASSEMBLY, LH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 4G43-18D404-CA
                        SEAL, VENT AIR DUCT
                        from £1.48
                        from £1.48
                        FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 4G43-046B30-AB

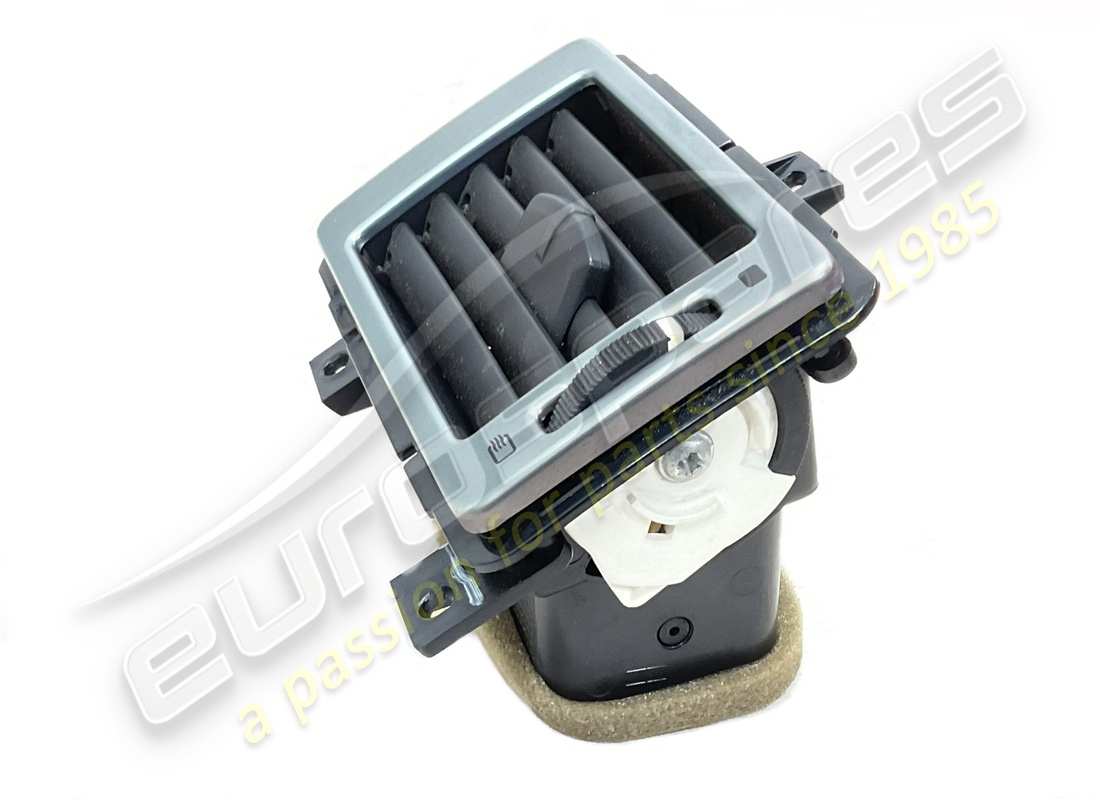

                        REGISTER ASSEMBLY, RH
                        Graphite
                        from £38.48
                        from £38.48
                        REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        REGISTER ASSEMBLY, RH Genuine Aston Martin - Used In stock
                        # 8
                        MPN: 8D33-046B30-BA
                        REGISTER ASSEMBLY, RH
                        Iridium
                        REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: FD43-046B30-AA
                        REGISTER ASSEMBLY, RH
                        Black
                        from £242.45
                        from £242.45
                        REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: FD43-046B30-BA
                        REGISTER ASSEMBLY, RH
                        Ice Mocha
                        from £160.08
                        from £160.08
                        REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: CD33-046B30-AB
                        REGISTER ASSEMBLY, RH
                        No Bezel, 16MY on
                        from £47.49
                        from £47.49
                        RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                        # 8a
                        MPN: 4G43-046B31-AB
                        REGISTER ASSEMBLY, LH
                        Graphite
                        from £38.48
                        from £38.48
                        Genuine Aston Martin (no longer available to order)
                        REGISTER ASSEMBLY, LH Genuine Aston Martin - Used In stock
                        # 8a
                        MPN: 8D33-046B31-BA
                        REGISTER ASSEMBLY, LH
                        Iridium
                        from £89.30
                        from £89.30
                        REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 8a
                        MPN: FD43-046B31-AA
                        REGISTER ASSEMBLY, LH
                        Black
                        from £250.12
                        from £250.12
                        REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 8a
                        MPN: FD43-046B31-BA
                        REGISTER ASSEMBLY, LH
                        Ice Mocha
                        from £160.08
                        from £160.08
                        REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 8a
                        MPN: CD33-046B31-AB
                        REGISTER ASSEMBLY, LH
                        No Bezel, 16MY on
                        from £66.10
                        from £66.10
                        RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 4G43-014K00-AA
                        DUCT ASSEMBLY, FOOTWELL, RH/LHD
                        Up to 07MY
                        from £113.67
                        from £113.67
                        DUCT ASSEMBLY, FOOTWELL, RH/LHD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 8G43-014K96-AB
                        DUCT ASSEMBLY, FOOTWELL, RH/LHD
                        FROM 07MY
                        from £24.08
                        from £24.08
                        DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 4G43-014K00-DA
                        DUCT ASSEMBLY, FOOTWELL, RH/RHD
                        Up to 07MY
                        from £56.84
                        from £56.84
                        DUCT ASSEMBLY, FOOTWELL, RH/RHD Genuine Aston Martin - New (to order)
                        DUCT ASSEMBLY, FOOTWELL, RH/RHD Genuine Aston Martin - Used In stock
                        # 9
                        MPN: 9D33-014K96-AA
                        DUCT ASSEMBLY, FOOTWELL, RH/RHD
                        FROM 07MY
                        from £4.67
                        from £4.67
                        DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                        # 9a
                        MPN: 4G43-014K00-CA
                        DUCT ASSEMBLY, FOOTWELL, LH/LHD
                        Up to 07MY
                        from £113.67
                        from £113.67
                        DUCT ASSEMBLY, FOOTWELL, LH/LHD Genuine Aston Martin - New (to order)
                        # 9a
                        MPN: 9D33-014K97-AA
                        DUCT ASSEMBLY, FOOTWELL, LH/LHD
                        FROM 07MY
                        from £4.67
                        from £4.67
                        DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                        # 9a
                        MPN: 4G43-014K00-BA
                        DUCT ASSEMBLY, FOOTWELL, LH/RHD
                        Up to 07MY
                        from £56.84
                        from £56.84
                        DUCT ASSEMBLY, FOOTWELL, LH/RHD Genuine Aston Martin - New (to order)
                        DUCT ASSEMBLY, FOOTWELL, LH/RHD Genuine Aston Martin - Used In stock
                        # 9a
                        MPN: 8G43-014K97-BB
                        DUCT ASSEMBLY, FOOTWELL, LH/RHD
                        FROM 07MY
                        from £24.08
                        from £24.08
                        DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 7G43-014K00-AA
                        PLUG , OUTLET, FOOTWELL
                        from £8.05
                        from £8.05
                        ASSEMBLY PLUG OLET F/DUCT Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 4G43-18D404-AD
                        DUCT ASSEMBLY, CENTRE, LHD
                        Up to 07MY
                        from £341.50
                        from £341.50
                        DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, LHD Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 8G43-18D404-AC
                        DUCT ASSEMBLY, CENTRE, LHD
                        FROM 07MY
                        from £49.46
                        from £49.46
                        DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 4G43-18D404-BD
                        DUCT ASSEMBLY, CENTRE, RHD
                        Up to 07MY
                        from £341.50
                        from £341.50
                        DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, RHD Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 8G43-18D404-BB
                        DUCT ASSEMBLY, CENTRE, RHD
                        From 07MY To 11MY
                        from £51.24
                        from £51.24
                        DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 8G43-18D404-BC
                        DUCT ASSEMBLY, CENTRE, RHD
                        FROM 11MY
                        from £57.46
                        from £57.46
                        DUCT ASSEMBLY, HEATER AIR DISTRIBUTION, RHD Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 77-84981-PK
                        FOAM STRIP
                        Pack of 10
                        from £20.01
                        from £20.01
                        FOAM STRIP-10 Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 6G33-79231-AC
                        SCREW, M3.5X38, POZI TYPE
                        from £0.47
                        from £0.47
                        SCREW M3.5 X 38 Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 4G43-17A873-AA
                        RIVET, 4.8X12
                        from £1.11
                        from £1.11
                        RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 701157-PK
                        SCREW AND WASHER, 4.2X16
                        Pack of 10
                        from £1.62
                        from £1.62
                        SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 703068
                        SCREW AND WASHER, 4.2X9
                        from £0.47
                        from £0.47
                        SCREW 4.2X9 Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 701447
                        SCREW, M4X12, TORX
                        from £0.47
                        from £0.47
                        SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 702959
                        SCREW, M4X12, PAN HEAD
                        16MY on
                        from £0.47
                        from £0.47
                        SCREW M4X12 PAN HEAD Genuine Aston Martin - New (to order)
                        # 19
                        MPN: 703743
                        SCREW AND WASHER, M6X18
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
