120305-10 - Air Con Lines, R134a Gas, LHD

Aston Martin V8 Vantage (2009) Air Con Lines, R134a Gas, LHD Parts Diagram

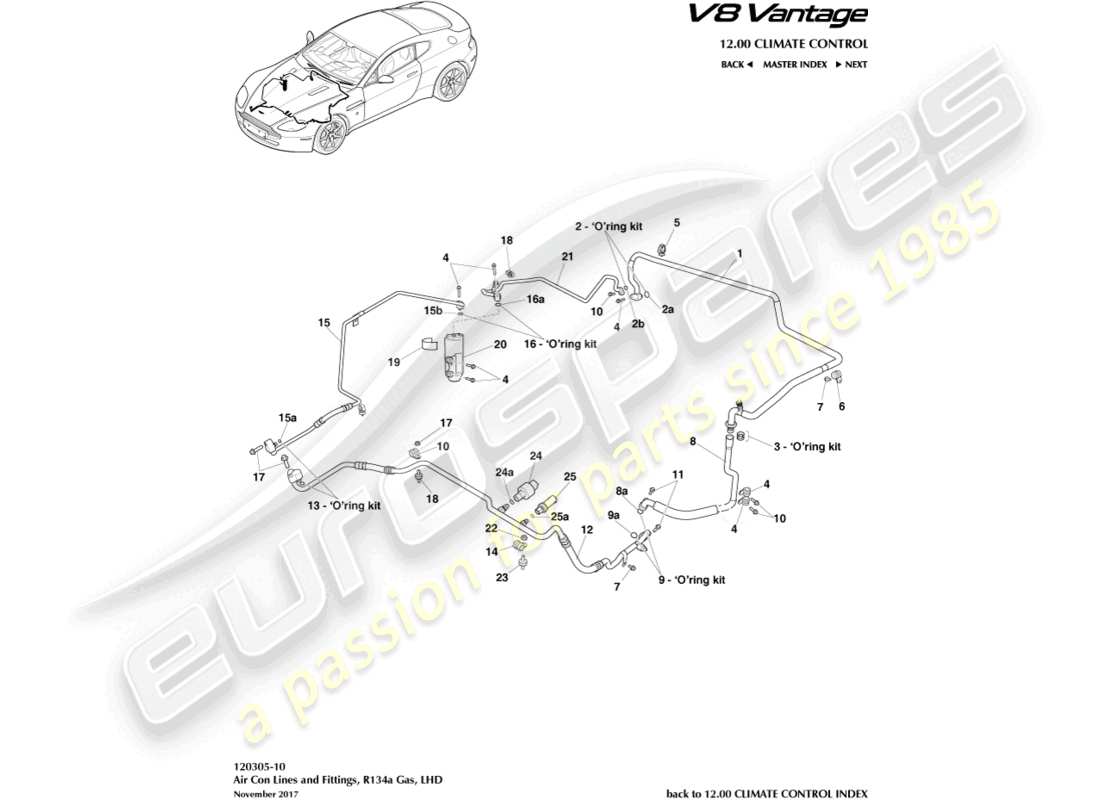

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 6G33-19A705-BA
                              TUBE ASSY, EVAPORATOR TO PUMP, UPPER
                              Up To 11MY, LH
                              TUBE ASSEMBLY, EVAPORATOR TO PUMP, UPPER Genuine Aston Martin - New (to order)
                              # 1
                              MPN: AG43-19A705-BA
                              TUBE ASSY, EVAPORATOR TO PUMP, UPPER
                              From 11MY To 17MY, LH
                              from £116.73
                              from £116.73
                              TUBE ASSEMBLY, EVAPORATOR TO PUMP, UPPER Genuine Aston Martin - New (to order)
                              # 1
                              MPN: HG33-19A705-BA
                              TUBE ASSY, EVAPORATOR TO PUMP, UPPER
                              From 17MY, LH, With R134 Gas
                              from £121.09
                              from £121.09
                              TUBE, ASSEMBLY, AIRCON EVAPORATOR OUTLET, LH Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 6G43-89-10446-PK
                              O RING KIT
                              Up to 17MY
                              from £5.64
                              from £5.64
                              O RING KIT, FOR THE EVAPORATOR Genuine Aston Martin - New (to order)
                              # 2a
                              MPN: HD23-32117-AA
                              EPDM O RING, 13.40X2.40
                              FROM 17MY
                              from £3.49
                              from £3.49
                              EPDM O RING, 13.40X2.40 Genuine Aston Martin - New (to order)
                              # 2b
                              MPN: HD23-87024-AA
                              EPDM O RING, 6.70X1.80
                              From 17MY, With R134 Gas
                              from £4.15
                              from £4.15
                              EPDM O-RING Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 4G43-89-10912-PK
                              O RING KIT
                              Up to 17MY
                              from £4.83
                              from £4.83
                              O RING KIT Genuine Aston Martin - New (to order)
                              # 3
                              MPN: HD23-49745-AA
                              EPDM O RING, 12.93X1.86
                              FROM 17MY
                              from £5.03
                              from £5.03
                              O RING, 12.93X1.86 Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 703199
                              BOLT, M6X30
                              from £0.47
                              from £0.47
                              BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 702291
                              CLIP, PIPE TO WIPER LINKAGE
                              from £0.94
                              from £0.94
                              CLIP 11-18X6.5X7 Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 699699
                              CLIP, 16X15
                              from £1.34
                              from £1.34
                              P CLIP - 16 Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 700606
                              SCREW, M6X12
                              from £0.47
                              from £0.47
                              SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 6G33-19A705-AB
                              TUBE ASSY, EVAPORATOR TO PUMP, LOWER
                              Up To 11MY, LH
                              TUBE ASSEMBLY, EVAPORATOR TO PUMP, LOWER Genuine Aston Martin - New (to order)
                              # 8
                              MPN: AG33-19A705-AA
                              TUBE ASSY, EVAPORATOR TO PUMP, LOWER
                              From 11MY To 17MY, LH
                              from £87.56
                              from £87.56
                              TUBE ASSEMBLY, EVAPORATOR TO PUMP, LOWER Genuine Aston Martin - New (to order)
                              # 8
                              MPN: HG33-19A705-AA
                              TUBE ASSY, EVAPORATOR TO PUMP, LOWER
                              From 17MY, LH, With R134 Gas
                              from £84.20
                              from £84.20
                              TUBE ASSEMBLY, EVAPORATOR TO PUMP, LOWER Genuine Aston Martin - New (to order)
                              # 8a
                              MPN: HD23-32117-AA
                              EPDM O RING, 13.40X2.40
                              From 17MY, With R134 Gas
                              from £3.49
                              from £3.49
                              EPDM O RING, 13.40X2.40 Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 4G43-89-10909-PK
                              O RING KIT
                              Up to 17MY
                              from £3.51
                              from £3.51
                              O RINGS-COMPRESSOR-2 Genuine Aston Martin - New (to order)
                              # 9a
                              MPN: HD23-99542-AA
                              EPDM O RING, 13.75X2.5
                              FROM 17MY
                              from £4.15
                              from £4.15
                              EPDM O RING, 13.75X2.5 Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 703203
                              SCREW, M6X20
                              from £0.47
                              from £0.47
                              SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                              LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                              # 11
                              MPN: 703025
                              SCREW, M6X25
                              from £0.47
                              from £0.47
                              SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 6G33-19972-AH
                              TUBE ASSY, COMPRESSOR TO CONDENSER
                              Up to 11MY
                              from £246.43
                              from £246.43
                              Genuine Aston Martin (no longer available to order)
                              TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - Used In stock
                              # 12
                              MPN: AG33-19972-AA
                              TUBE ASSY, COMPRESSOR TO CONDENSER
                              From 11MY To 17MY
                              from £313.56
                              from £313.56
                              TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                              # 12
                              MPN: HG33-19972-AA
                              TUBE ASSY, COMPRESSOR TO CONDENSER
                              From 17MY, With R134 Gas
                              from £336.78
                              from £336.78
                              This part replaces part number 6G33-19972-AH which we have in stock
                              TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                              # 12a
                              MPN: HD23-100403-AA
                              EPDM O RING, 7.65X1.79
                              From 17MY, With R134 Gas
                              from £5.03
                              from £5.03
                              EPDM O RING, 7.65X1.79 Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 4G43-89-10910-PK
                              O RING KIT
                              Up to 17MY
                              from £3.51
                              from £3.51
                              O RINGS-CONDENSER (pack of 2) Genuine Aston Martin - New In stock
                              # 14
                              MPN: 699634
                              CLIP, 13MM
                              from £1.29
                              from £1.29
                              P-CLIP 13X15XM6 Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 6G33-19D719-AB
                              TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                              Up to 11MY
                              from £67.56
                              from £67.56
                              Genuine Aston Martin (no longer available to order)
                              TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - Used In stock
                              # 15
                              MPN: AG33-19D719-AA
                              TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                              From 11MY To 17MY
                              from £76.23
                              from £76.23
                              TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                              # 15
                              MPN: HG33-19D719-AA
                              TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                              From 17MY, With R134 Gas
                              from £92.33
                              from £92.33
                              This part replaces part number 6G33-19D719-AB which we have in stock
                              TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                              # 15a
                              MPN: HD23-87056-AA
                              EPDM O RING, 6.5X2.62
                              From 17MY, With R134 Gas
                              from £4.15
                              from £4.15
                              O RINGS, RECEIVER / DRIER Genuine Aston Martin - New (to order)
                              # 15b
                              MPN: HD23-87024-AA
                              EPDM O RING, 6.7X1.80
                              From 17MY, With R134 Gas
                              from £4.15
                              from £4.15
                              EPDM O-RING Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 4G43-89-10908-PK
                              O RING KIT
                              Up to 17MY
                              from £3.44
                              from £3.44
                              O RINGS-RECEIVER(2) Genuine Aston Martin - New (to order)
                              # 16a
                              MPN: HD23-87071-AA
                              EPDM O RING, 10.8X2.40
                              FROM 17MY
                              from £4.15
                              from £4.15
                              EPDM O-RING Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 703201
                              SCREW, M8X30
                              from £0.47
                              from £0.47
                              SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                              # 18
                              MPN: 701180
                              CLIP
                              from £0.82
                              from £0.82
                              CLIP 14.0X4.0 PUSHIN Genuine Aston Martin - New (to order)
                              # 21
                              MPN: 6G33-19835-BB
                              TUBE, RECEIVER/DRYER TO EVAPORATOR
                              Up To 08MY, RH
                              TUBE, RECEIVER/DRYER TO EVAPORATOR Genuine Aston Martin - New (to order)
                              # 21
                              MPN: 8G33-19835-BA
                              TUBE, RECEIVER/DRYER TO EVAPORATOR
                              From 08MY, VIN D07649, To 11MY, RH
                              TUBE, RECEIVER/DRYER TO EVAPORATOR Genuine Aston Martin - New (to order)
                              # 21
                              MPN: AG33-19835-BA
                              TUBE, RECEIVER/DRYER TO EVAPORATOR
                              From 11MY TO 17MY, RH
                              from £114.11
                              from £114.11
                              This part replaces part number 4G43-19835-BC
                              TUBE, RECEIVER/DRYER TO EVAPORATOR Genuine Aston Martin - New (to order)
                              # 21
                              MPN: HG33-19835-BA
                              TUBE, RECEIVER/DRYER TO EVAPORATOR
                              From 17MY, With R134 Gas, RH
                              from £197.81
                              from £197.81
                              TUBE, RECEIVER/DRYER TO EVAPORATOR Genuine Aston Martin - New (to order)
                              # 22
                              MPN: 702944
                              NUT, M6
                              from £0.58
                              from £0.58
                              NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                              LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                              # 23
                              MPN: 6G33-6C778-BA
                              ISOLATOR, OIL MOUNTING BUFFER
                              from £13.46
                              from £13.46
                              ISOLATOR - BUFFER Genuine Aston Martin - New (to order)
                              # 24
                              MPN: 1R12-89-10192
                              SWITCH, HIGH PRESSURE
                              from £165.55
                              from £165.55
                              A/C SWITCH-HIGH PRES Genuine Aston Martin - New (to order)
                              A/C SWITCH-HIGH PRES Genuine Aston Martin - Used In stock
                              # 24a
                              MPN: HD23-100501-AA
                              EPDM O RING, 10.82X1.78
                              FROM 17MY
                              from £3.01
                              from £3.01
                              EPDM O RING, 10.82X1.78 Genuine Aston Martin - New (to order)
                              # 25
                              MPN: AG43-89-11295
                              SWITCH ASSEMBLY, PRESSURE CUT-OFF
                              from £272.88
                              from £272.88
                              This part replaces part number 6F93-19D594-AA which we have in stock - and 1 more. Click to view details
                              SWITCH ASSEMBLY, PRESSURE CUT-OFF Genuine Aston Martin - New (to order)
                              SWITCH ASSEMBLY, PRESSURE CUT-OFF Genuine Aston Martin - Used In stock
                              # 25a
                              MPN: HD23-100403-AA
                              EPDM O RING, 7.65X1.79
                              FROM 17MY
                              from £5.03
                              from £5.03
                              EPDM O RING, 7.65X1.79 Genuine Aston Martin - New (to order)
