140103 - BATTERY CABLES

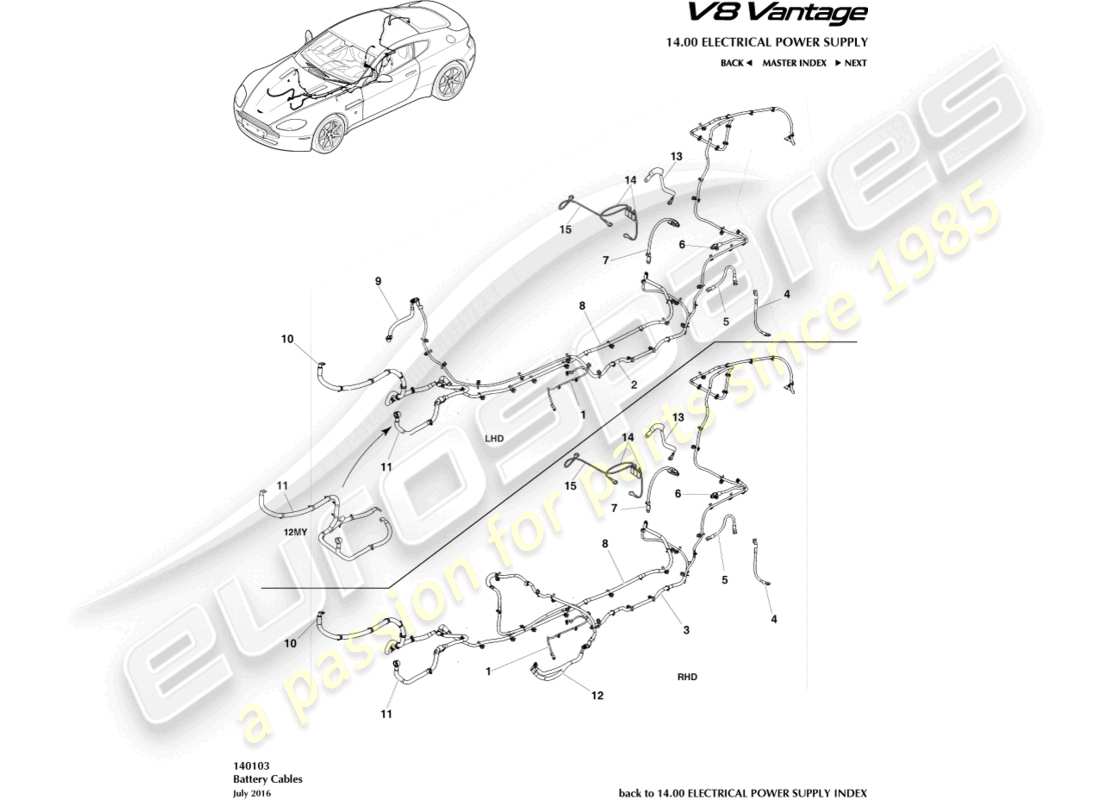

Aston Martin V8 Vantage (2009) Battery Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-14A280-DC
                  HARNESS, BONNET EARTH STRAP
                  from £11.31
                  from £11.31
                  HARNESS, BONNET EARTH STRAP Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-14B278-AG
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, COUPE
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, COUPE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-14B278-KB
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, ROADSTER
                  from £116.52
                  from £116.52
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, ROADSTER Genuine Aston Martin - New (to order)
                  # 2
                  MPN: AG33-14B278-AA
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, COUPE
                  10MY
                  from £104.60
                  from £104.60
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, COUPE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: AG33-14B278-KA
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, ROADSTER
                  10MY
                  from £141.98
                  from £141.98
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, LHD, ROADSTER Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-14B278-BG
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, COUPE
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, COUPE Genuine Aston Martin - New (to order)
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, COUPE Genuine Aston Martin - Used In stock
                  # 3
                  MPN: 6G33-14B278-JB
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, ROADSTER
                  from £120.77
                  from £120.77
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, ROADSTER Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AG33-14B278-BA
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, COUPE
                  10MY
                  from £104.60
                  from £104.60
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, COUPE Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AG33-14B278-JA
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, ROADSTER
                  10MY
                  from £152.23
                  from £152.23
                  HARNESS, BDS TO BULKHD STUD, CLEAN FEED, RHD, ROADSTER Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-14A280-AD
                  HARNESS, ENGINE EARTH STRAP
                  from £34.22
                  from £34.22
                  HARNESS, ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
                  HARNESS, ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
                  # 5
                  MPN: 6G33-14A280-AD
                  HARNESS, ENGINE EARTH STRAP
                  from £34.22
                  from £34.22
                  HARNESS, ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
                  HARNESS, ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
                  # 6
                  MPN: 6G33-14301-AD
                  HARNESS, BATTERY TO GROUND
                  from £52.34
                  from £52.34
                  HARNESS, BATTERY TO GROUND Genuine Aston Martin - New (to order)
                  HARNESS, BATTERY TO GROUND Genuine Aston Martin - Used In stock
                  # 7
                  MPN: 6G33-14300-AD
                  HARNESS, BATTERY TO BDS
                  from £77.04
                  from £77.04
                  HARNESS, BATTERY TO BDS Genuine Aston Martin - New (to order)
                  # 7
                  MPN: HG3Y-14300-AA
                  HARNESS, BATTERY TO BDS
                  GT8
                  from £164.49
                  from £164.49
                  HARNESS, BATTERY TO BDS Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-14305-AD
                  HARNESS, DIRTY FEED, BDS TO BULKHEAD
                  from £508.62
                  from £508.62
                  HARNESS, DIRTY FEED, BDS TO BULKHEAD Genuine Aston Martin - New (to order)
                  HARNESS, DIRTY FEED, BDS TO BULKHEAD Genuine Aston Martin - Used In stock
                  # 9
                  MPN: 4G43-14B278-DD
                  HARNESS, CLEAN FEED, BULKHEAD TO ENG FUSEBOX
                  from £17.51
                  from £17.51
                  CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - New (to order)
                  CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - Used In stock
                  # 10
                  MPN: 6G33-14305-BD
                  HARNESS, BULKHEAD TO JUMP START TERMINAL
                  from £61.27
                  from £61.27
                  HARNESS, BULKHEAD TO JUMP START TERMINAL Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 6G33-10C310-AD
                  HARNESS, DIRTY FEED, BULKHEAD TO STARTER/ALT/JMP
                  from £151.67
                  from £151.67
                  HARNESS, DIRTY FEED, BULKHEAD TO STARTER/ALT/JMP Genuine Aston Martin - New (to order)
                  HARNESS, DIRTY FEED, BULKHEAD TO STARTER/ALT/JMP Genuine Aston Martin - Used In stock
                  # 11
                  MPN: CG33-10C310-AA
                  HARNESS, DIRTY FEED, BULKHEAD TO STARTER/ALT/JMP
                  12MY
                  HARNESS, DIRTY FEED, BULKHEAD TO STARTER/ALT/JMP Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 6G33-14B278-HC
                  HARNESS, CLEAN FEED, BULKHEAD TO FUSE BOX, RHD
                  from £60.98
                  from £60.98
                  HARNESS, CLEAN FEED, BULKHEAD TO FUSE BOX, RHD Genuine Aston Martin - New (to order)
                  HARNESS, CLEAN FEED, BULKHEAD TO FUSE BOX, RHD Genuine Aston Martin - Used In stock
                  # 13
                  MPN: GG33-14A280-AA
                  ICU EARTH BRAID
                  16MY Roadster
                  from £96.56
                  from £96.56
                  ICU EARTH BRAID Genuine Aston Martin - New (to order)
                  # 14
                  MPN: HG3Y-9137-DA
                  HARNESS INPUT/OUTPUT BDB TO BDB
                  GT8
                  from £111.34
                  from £111.34
                  HARNESS INPUT/OUTPUT BDB TO BDB Genuine Aston Martin - New (to order)
                  # 15
                  MPN: HG3Y-9137-CA
                  HARNESS BDB TO EARTH
                  GT8
                  from £195.97
                  from £195.97
                  HARNESS BDB TO EARTH Genuine Aston Martin - New (to order)
                  # -
                  -
                  BUNG, 11MM
                  # -
                  -
                  TERMINAL POST ASSEMBLY
                  # -
                  -
                  NUT, M8, U/BNT/BOOT FUSE BOX PWR LEAD
                  # -
                  -
                  NUT, M8, FIXING TERMINAL, CLEAN FEED, BRASS
                  # -
                  -
                  WASHER, SPRING, COPPER, CLEAN/DIRTY FEED
                  # -
                  -
                  NUT, FIXING TERMINAL, DIRTY FEED, BRASS
                  # -
                  -
                  SCREW, M6 X 12, ENGINE EARTH
                  # -
                  -
                  NUT & WASHER, M6, ENGINE EARTH
                  # -
                  -
                  NUT & WASHER, M6, FUEL TANK
                  # -
                  -
                  NUT & WASHER, M6, COOLING FAN
                  # -
                  -
                  NUT & WASHER, M6, ALTERNATOR
                  # -
                  -
                  ANTENNA, EARTH BRAID
                  # -
                  -
                  NUT, M5, BONNET EARTH STRAP
                  # -
                  -
                  NUT, M6, DURALOCK FLG
                  Alternator Positive Terminal
