aston martin v8 vantage (2009) icu and bracket, 16my parts diagram

150101-10 - ICU and Bracket, 16MY

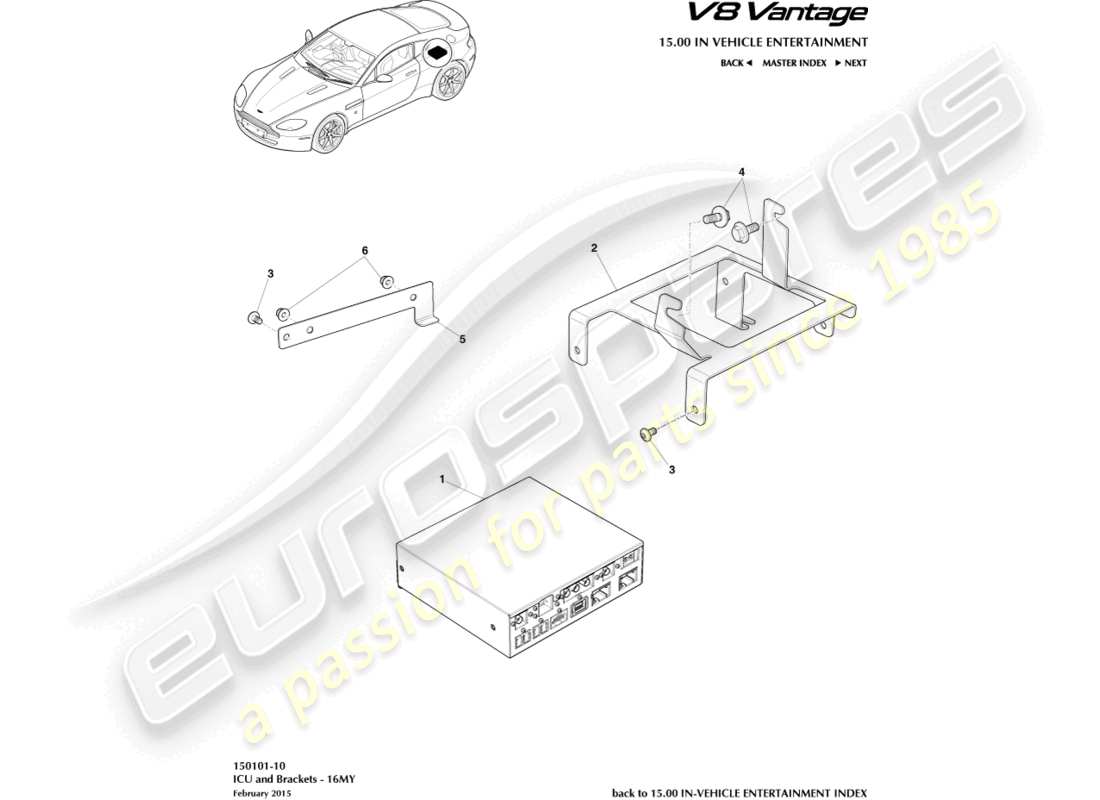

Aston Martin V8 Vantage (2009) ICU and Bracket, 16MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: GG33-19C101-AK
INFOTAINMENT CONTROL UNIT
Up to 17MY
Supersession
Supersession
Genuine Aston Martin (no longer available to order)
# 1
MPN: HG33-19C101-AF
INFOTAINMENT CONTROL UNIT
No Mapping + Japan. From 17MY
from £8,007.84
from £8,007.84
INFOTAINMENT CONTROL UNIT Genuine Aston Martin - New (to order)
# 1
MPN: HG33-19C101-BF
INFOTAINMENT CONTROL UNIT
Europe. From 17MY
from £8,007.84
from £8,007.84
INFOTAINMENT CONTROL UNIT Genuine Aston Martin - New (to order)
# 1
MPN: HG33-19C101-CF
INFOTAINMENT CONTROL UNIT
USA. From 17MY
from £8,007.84
from £8,007.84
INFOTAINMENT CONTROL UNIT Genuine Aston Martin - New (to order)
# 1
MPN: HG33-19C101-DF
INFOTAINMENT CONTROL UNIT
RoW. From 17MY
from £8,007.84
from £8,007.84
INFOTAINMENT CONTROL UNIT Genuine Aston Martin - New (to order)
# 3
MPN: 6G33-46058-AA
SCREW, FLANGE HEAD, M5X10, TORX
4 off, Coupe. 2 off, Roadster
from £1.11
from £1.11
SCR-M5X10 HD FLNG LO Genuine Aston Martin - New (to order)
# 4
MPN: 703151
SCREW AND WASHER, M6X16, HEX HEAD
Coupe
from £0.47
from £0.47
SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
# 5
MPN: GG33-10E887-BB
BRACKET, MOUNTING, ICU
Roadster
BRACKET, MOUNTING, ICU Genuine Aston Martin - New (to order)
# 6
MPN: 703165
NUT, M5, HEX
Roadster
from £0.47
from £0.47
NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
# -
-
FOAM STRIP, ANTI-RATTLE
Not Drawn
