aston martin v8 vantage (2009) premium amplifiers, coupe parts diagram

150103-D3 - Premium Amplifiers, Coupe

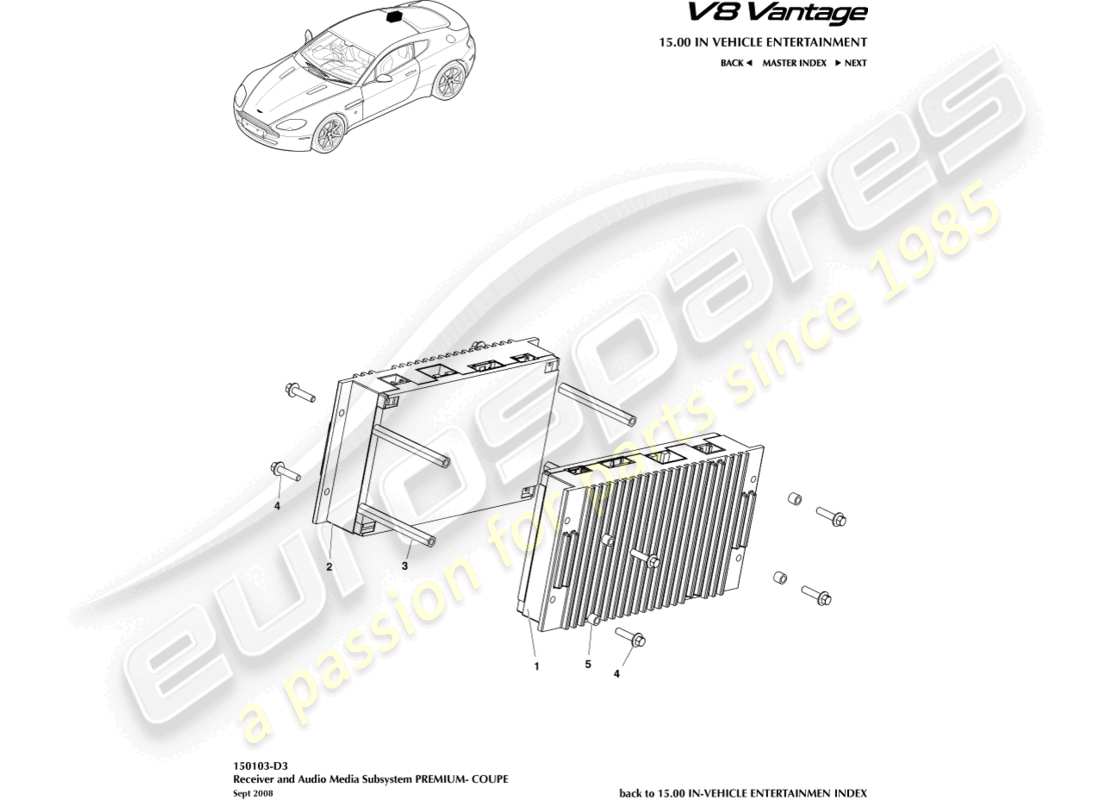

Aston Martin V8 Vantage (2009) Premium Amplifiers, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 6G33-18C808-CC
            POWER AMPLIFIER, PREMIUM
            AMPLIFIER, PREMIUM AUDIO Genuine Aston Martin - New (to order)
            # 2
            MPN: 1R12-37-10629
            SUB AMPLIFIER, PREMIUM
            from £601.20
            from £601.20
            PREMIER SUB AMP Genuine Aston Martin - New (to order)
            # 3
            MPN: 6G33-12B579-AA
            TIE BAR, M6
            from £6.36
            from £6.36
            TIE BAR, M6 Genuine Aston Martin - New (to order)
            # 4
            MPN: 703025
            SCREW, M6X25 HEX FLG HD
            from £0.47
            from £0.47
            SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
            # 5
            MPN: 6G33-115723-AA
            SPACER, M6
            from £1.05
            from £1.05
            M6 AMP SPACER Genuine Aston Martin - New (to order)
