aston martin v8 vantage (2009) radio antenna, 14my parts diagram

150204-01 - Radio Antenna, 14MY

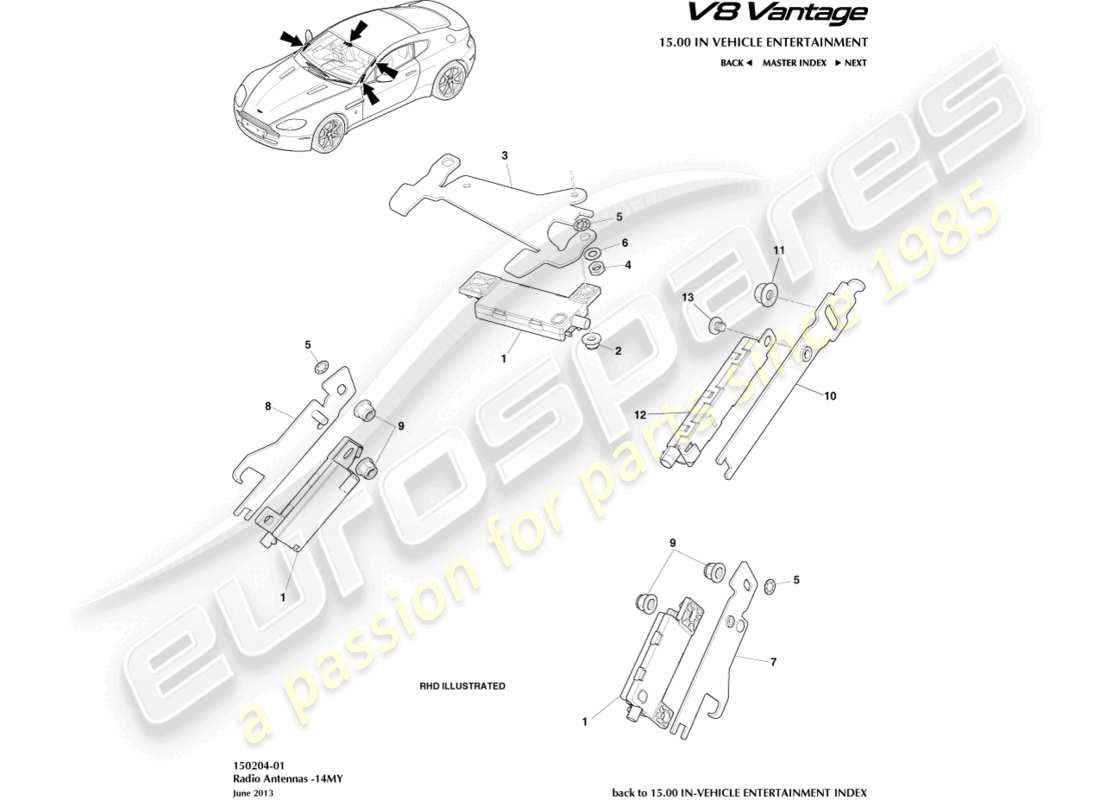

Aston Martin V8 Vantage (2009) Radio Antenna, 14MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9G43-18C847-AA
                          ANTENNA AMPLIFIER, AM/FM, TMC
                          Up to 16MY
                          from £48.08
                          from £48.08
                          ANTENNA AMPLIFIER Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 9G43-18C847-AA
                          ANTENNA AMPLIFIER, AM/FM, TMC
                          From 16MY, Header Pod
                          from £48.08
                          from £48.08
                          ANTENNA AMPLIFIER Genuine Aston Martin - New (to order)
                          # 1
                          MPN: ED33-18C847-CA
                          ANTENNA AMPLIFIER, FM2
                          From 16MY. RH/RHD or LH/LHD
                          from £34.26
                          from £34.26
                          ANTENNA AMPLIFIER, FM2 Genuine Aston Martin - New (to order)
                          # 1
                          MPN: ED33-18C847-AA
                          ANTENNA AMPLIFIER, AM/FM1
                          From 16MY. LH/RHD or RH/LHD
                          from £41.82
                          from £41.82
                          ANTENNA AMPLIFIER, AM/FM1 Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 702522
                          NUT, M5, HEX FLANGE HEAD
                          from £0.47
                          from £0.47
                          M5 HEX FLANGE NUT Genuine Aston Martin - New (to order)
                          # 3
                          MPN: CD33-18C987-DB
                          BRACKET, HEADER POD
                          from £26.13
                          from £26.13
                          BRACKET, HEADER POD Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 702994
                          NUT, M6, HEX HD THIN
                          from £0.47
                          from £0.47
                          NUT M6 HEX THIN Genuine Aston Martin - New In stock
                          # 5
                          MPN: 704620
                          WASHER, INTERNAL SHAKEPROOF, M6
                          WASHER-M6 INT S/PRF Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 699733
                          WASHER, M6
                          from £0.47
                          from £0.47
                          WASHER M6 ST STL Genuine Aston Martin - New (to order)
                          # 7
                          MPN: ED33-18C847-DA
                          AMPLIFIER BRACKET, A PILLAR, LH
                          AMPLIFIER BRACKET, A PILLAR, LH Genuine Aston Martin - New (to order)
                          # 8
                          MPN: ED33-18C847-CA
                          AMPLIFIER BRACKET, A PILLAR, RH
                          from £34.26
                          from £34.26
                          ANTENNA AMPLIFIER, FM2 Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 702994
                          NUT, M6, HEX FLANGE HEAD
                          from £0.47
                          from £0.47
                          NUT M6 HEX THIN Genuine Aston Martin - New In stock
                          # 10
                          MPN: ED33-18C847-AB
                          BRACKET, DAB ANTENNA
                          BRACKET, DAB ANTENNA Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 702994
                          NUT, M6, HEX FLANGE HEAD
                          from £0.47
                          from £0.47
                          NUT M6 HEX THIN Genuine Aston Martin - New In stock
                          # 12
                          MPN: ED33-18C847-BA
                          DAB ANTENNA
                          from £58.54
                          from £58.54
                          DAB ANTENNA Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 8G43-487464-AA
                          SCREW, M5X6, PAN HEAD
                          from £0.47
                          from £0.47
                          SCREW WASHER M5 X 6 PN Genuine Aston Martin - New (to order)
                          # -
                          -
                          FOAM STRIP, ANTI-RATTLE
                          Pack of 10
