aston martin v8 vantage (2009) electronic antenna, 09my parts diagram

150204 - Electronic Antenna, 09MY

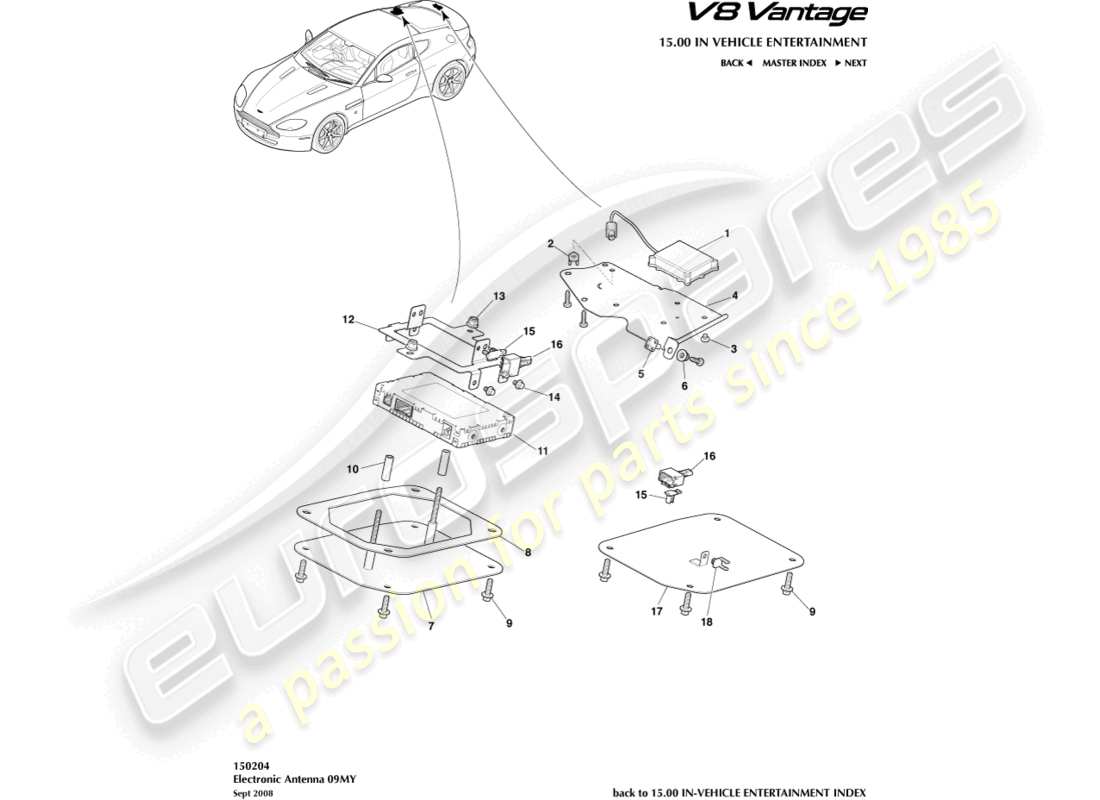

Aston Martin V8 Vantage (2009) Electronic Antenna, 09MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 8G43-19C089-AB
                                  ANTENNA, SDARS
                                  from £196.37
                                  from £196.37
                                  SDARS ANTENNA Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 8G43-14A163-CA
                                  RETAINING CLIP, SDARS ANTENNA
                                  from £0.47
                                  from £0.47
                                  ANTENA RETAINING CLP Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 8G43-487464-AA
                                  SCREW/WASHER, M5 X 6 ANTENNA TO BRACKET
                                  from £0.47
                                  from £0.47
                                  SCREW WASHER M5 X 6 PN Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 8G33-10E921-AD
                                  PLATE, SDARS & GPS
                                  from £17.45
                                  from £17.45
                                  PLATE, SDARS & GPS Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 6G33-38354-AA
                                  STUD, M6 X 16
                                  STUD, M6 X 16 Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 703164
                                  NUT, LOCK, M6
                                  from £0.47
                                  from £0.47
                                  M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 8D33-18K876-AA
                                  BASEPLATE, SDARS TUNER
                                  from £93.18
                                  from £93.18
                                  BASEPLATE, TUNER Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 8D33-18K876-AC
                                  BASEPLATE, SDARS TUNER
                                  13MY
                                  from £27.28
                                  from £27.28
                                  SDARS TUNER BASEPLAT Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 4G43-19A070-CA
                                  GASKET, RUBBER
                                  from £14.76
                                  from £14.76
                                  RUBBER GASKET Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 700607
                                  SCREW, M6X20
                                  from £0.47
                                  from £0.47
                                  SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: 8D33-18K833-AA
                                  SPACER, TUNER BASE PLATE
                                  from £2.62
                                  from £2.62
                                  SPACER, TUNER BASE PLATE Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 9G43-37-11005
                                  SDARS TUNER
                                  from £268.71
                                  from £268.71
                                  SATELLITE RADIOTUNER Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: DG43-19C156-AA
                                  SDARS TUNER
                                  13MY
                                  from £580.92
                                  from £580.92
                                  SDARS TUNER Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 8D33-19C183-AA
                                  BRACKET, SDARS TUNER MODULE
                                  from £17.84
                                  from £17.84
                                  BRACKET, TUNER MODULE Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 702429
                                  NUT, LOCK, M6, TUNER TO BRACKET
                                  from £0.47
                                  from £0.47
                                  LOCKNUT M6 Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 703206
                                  SCREW, M5 X 8, TUNER TO BRACKET
                                  from £0.96
                                  from £0.96
                                  SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: E9DB-14A163-CA
                                  RETAINER, WIRE HARNESS UPPER
                                  RETAINER, WIRE HARNESS UPPER Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 4G43-18C951-HB
                                  SERVICE LOOP, MOST
                                  from £12.48
                                  from £12.48
                                  MOST SERVICE LOOP Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 8D33-18K876-BD
                                  BLANKING PLATE, NON SDARS
                                  from £13.97
                                  from £13.97
                                  PLATE, BLANKING NON SDARS Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: 8G43-14A163-CA
                                  CONNECTOR CLIP
                                  from £0.47
                                  from £0.47
                                  ANTENA RETAINING CLP Genuine Aston Martin - New (to order)
