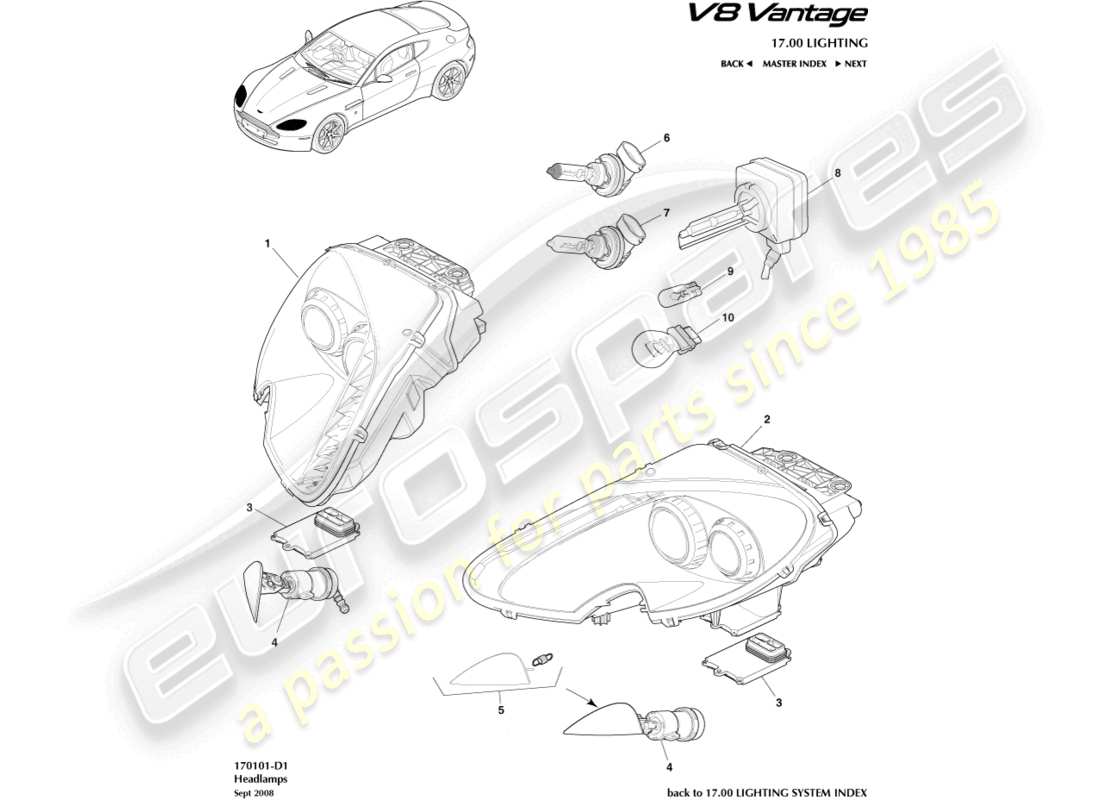

170101-D1 - Headlights

Aston Martin V8 Vantage (2009) Headlights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 6G33-13W029-AD
HEADLAMP ASSY, RH, RHD
Up To 11MY, Less Wash or Levelling
from £1,732.94
from £1,732.94
HEADLAMP ASSEMBLY, RH, RHD Genuine Aston Martin - New (to order)
# 1
MPN: 6G33-13W029-DE
HEADLAMP ASSY, HID, RH, RHD
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, RH, RHD Genuine Aston Martin - New (to order)
# 1
MPN: BG33-13W029-AC
HEADLAMP ASSY, RH, RHD SILVER BEZEL
From 11MY To VIN C19489
from £1,524.98
from £1,524.98
HEADLAMP ASSEMBLY, RH, RHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: BG33-13W029-AD
HEADLAMP ASSY, RH, RHD SILVER BEZEL
FROM VIN C19490
from £2,244.08
from £2,244.08
HEADLAMP ASSEMBLY, RH, RHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: ED23-13W029-AC
HEADLAMP ASSY, RH, RHD BLACK BEZEL
FROM 15MY
from £3,497.95
from £3,497.95
HEADLAMP ASSEMBLY, RH, RHD BLACK BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: 6G33-13W029-BD
HEADLAMP ASSY, RH, LHD
Up To 11MY, Less Wash or Levelling
from £1,732.94
from £1,732.94
HEADLAMP ASSEMBLY, RH, LHD Genuine Aston Martin - New (to order)
# 1
MPN: 6G33-13W029-EE
HEADLAMP ASSY, HID, RH, LHD
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, RH, LHD Genuine Aston Martin - New (to order)
# 1
MPN: BG33-13W029-BD
HEADLAMP ASSY, RH, LHD SILVER BEZEL
From 11MY To VIN C19660
Supersession
Supersession
Genuine Aston Martin (no longer available to order)
# 1
MPN: BG33-13W029-BF
HEADLAMP ASSY, RH, LHD SILVER BEZEL
FROM VIN C19661
from £2,244.08
from £2,244.08
This part replaces part number BG33-13W029-BD
HEADLAMP ASSEMBLY, RH, LHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: ED23-13W029-BC
HEADLAMP ASSY, RH, LHD BLACK BEZEL
FROM 15MY
from £3,497.95
from £3,497.95
HEADLAMP ASSEMBLY, RH, LHD BLACK BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: 6G33-13W029-CD
HEADLAMP ASSY, RH, FED
Up To 11MY, Less Wash or Levelling
from £2,610.89
from £2,610.89
HEADLAMP ASSEMBLY, RH, FED Genuine Aston Martin - New (to order)
# 1
MPN: 6G33-13W029-FE
HEADLAMP ASSY, HID, RH, FED
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, RH, FED Genuine Aston Martin - New (to order)
# 1
MPN: BG33-13W029-CC
HEADLAMP ASSY, RH, FED SILVER BEZEL
From 11MY To VIN C19532
HEADLAMP ASSEMBLY, RH, FED SILVER BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: BG33-13W029-CD
HEADLAMP ASSY, RH, FED SILVER BEZEL
FROM VIN C19533
from £2,244.08
from £2,244.08
HEADLAMP ASSEMBLY, RH, FED SILVER BEZEL Genuine Aston Martin - New (to order)
# 1
MPN: ED23-13W029-CC
HEADLAMP ASSY, RH, FED BLACK BEZEL
FROM 15MY
from £3,412.63
from £3,412.63
HEADLAMP ASSEMBLY, RH, FED BLACK BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-AD
HEADLAMP ASSY, LH, RHD
Up To 11MY, Less Wash or Levelling
from £1,732.94
from £1,732.94
HEADLAMP ASSEMBLY, LH, RHD Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-DE
HEADLAMP ASSY, HID, LH, RHD
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, LH, RHD Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-AC
HEADLAMP ASSY, LH, RHD SILVER BEZEL
From 11MY To VIN C19489
HEADLAMP ASSEMBLY, LH, RHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-AD
HEADLAMP ASSY, LH, RHD SILVER BEZEL
FROM VIN C19490
from £2,244.08
from £2,244.08
HEADLAMP ASSEMBLY, LH, RHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: ED23-13W030-AC
HEADLAMP ASSY, LH, RHD BLACK BEZEL
FROM 15MY
from £3,497.95
from £3,497.95
HEADLAMP ASSEMBLY, LH, RHD BLACK BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-BD
HEADLAMP ASSY, LH, LHD
Up To 11MY, Less Wash or Levelling
from £1,732.94
from £1,732.94
HEADLAMP ASSEMBLY, LH, LHD Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-EE
HEADLAMP ASSY, HID, LH, LHD
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, LH, LHD Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-BE
HEADLAMP ASSY, LH, LHD SILVER BEZEL
From 11MY To VIN C19660
HEADLAMP ASSEMBLY, LH, LHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-BF
HEADLAMP ASSY, LH, LHD SILVER BEZEL
FROM VIN C19661
from £2,244.08
from £2,244.08
HEADLAMP ASSEMBLY, LH, LHD SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: ED23-13W030-BC
HEADLAMP ASSY, LH, LHD BLACK BEZEL
FROM 15MY
from £3,497.95
from £3,497.95
HEADLAMP ASSEMBLY, LH, LHD BLACK BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-CD
HEADLAMP ASSY, LH, FED
Up To 11MY, Less Wash or Levelling
HEADLAMP ASSEMBLY, LH, FED Genuine Aston Martin - New (to order)
# 2
MPN: 6G33-13W030-FE
HEADLAMP ASSY, HID, LH, FED
Up To 11MY, With Wash and Levelling
from £2,192.06
from £2,192.06
HEADLAMP ASSEMBLY, HID, LH, FED Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-CC
HEADLAMP ASSY, LH, FED SILVER BEZEL
From 11MY To VIN C19532
from £1,483.45
from £1,483.45
HEADLAMP ASSEMBLY, LH, FED SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: BG33-13W030-CD
HEADLAMP ASSY, LH, FED SILVER BEZEL
FROM VIN C19533
from £2,244.08
from £2,244.08
HEADLAMP ASSEMBLY, LH, FED SILVER BEZEL Genuine Aston Martin - New (to order)
# 2
MPN: ED23-13W030-CC
HEADLAMP ASSY, LH, FED BLACK BEZEL
FROM 15MY
from £3,497.95
from £3,497.95
HEADLAMP ASSEMBLY, LH, FED BLACK BEZEL Genuine Aston Martin - New (to order)
# 3
MPN: 4G43-13C169-AA
MODULE, BALLAST
1 per headlight, Denso
from £90.87
from £90.87
Genuine Aston Martin (no longer available to order)
MODULE, BALLAST Genuine Aston Martin - Used In stock
# 3
MPN: 4G43-13C169-AB
MODULE, BALLAST
1 per headlight, De Amertek
from £197.63
from £197.63
This part replaces part number 4G43-13C169-AA which we have in stock
MODULE, BALLAST Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-13C025-AB

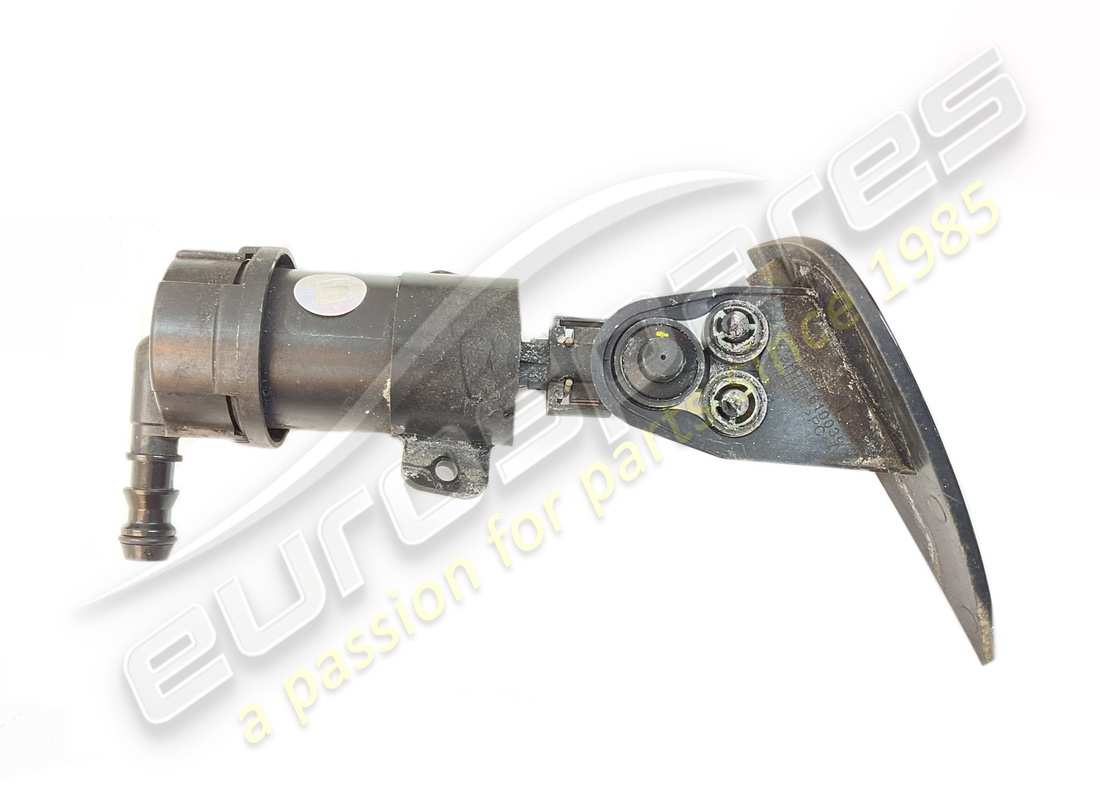

JET WASH COVER,NOZZLE & PUMP, LH
from £121.62
from £121.62
JET WASH COVER,NOZZLE & PUMP, LH Genuine Aston Martin - New (to order)
JET WASH COVER,NOZZLE & PUMP, LH Genuine Aston Martin - Used In stock
# 4
MPN: 6G33-13C024-AB
JET WASH COVER,NOZZLE & PUMP, RH
from £243.24
from £243.24
JET WASH COVER,NOZZLE & PUMP, RH Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-13C025-AA
JET WASH COVER AND CLIP, LHS
Without deployment mechanism
JET WASH COVER AND CLIP, LHS Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-13C024-AA
JET WASH COVER AND CLIP, RHS
Without deployment mechanism
JET WASH COVER AND CLIP, RHS Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-37-10536
JET WASH MOULDING COVER, NON HID, RH
including spring
from £33.87
from £33.87
JET WASH MOULDING COVER, NON HID, RH Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-37-10537
JET WASH MOULDING COVER, NON HID, LH
including spring
from £37.03
from £37.03
JET WASH MOULDING COVER, NON HID, LH Genuine Aston Martin - New (to order)
# 6
MPN: 4U5A-13N021-AA
BULB, HALOGEN, H11
Dip Beam
from £32.26
from £32.26
BULB, HALOGEN, H11 Genuine Aston Martin - New (to order)
# 7
MPN: 4G43-99703-AA
BULB, MAIN BEAM, 65W H9
Main Beam
from £72.52
from £72.52
BULB 65W TYPE H9 Genuine Aston Martin - New (to order)
# 8
MPN: 4G43-13N021-AA
BULB, DIP, HID
Dip Beam (HID)
BULB, DIP, HID Genuine Aston Martin - New (to order)
# 9
MPN: 4G43-13465-AA
BULB, BLUE- W5W
Side Lights
BULB, BLUE- W5W Genuine Aston Martin - New (to order)
# 10
MPN: 4G43-13465-BA
BULB, AMBER, PY27/7W
INDICATOR
from £7.27
from £7.27
BULB, AMBER, PY27/7W Genuine Aston Martin - New (to order)
