aston martin v8 vantage (2009) ip harness, 12my parts diagram

180102-D1 - IP Harness, 12MY

Aston Martin V8 Vantage (2009) IP Harness, 12MY Parts Diagram

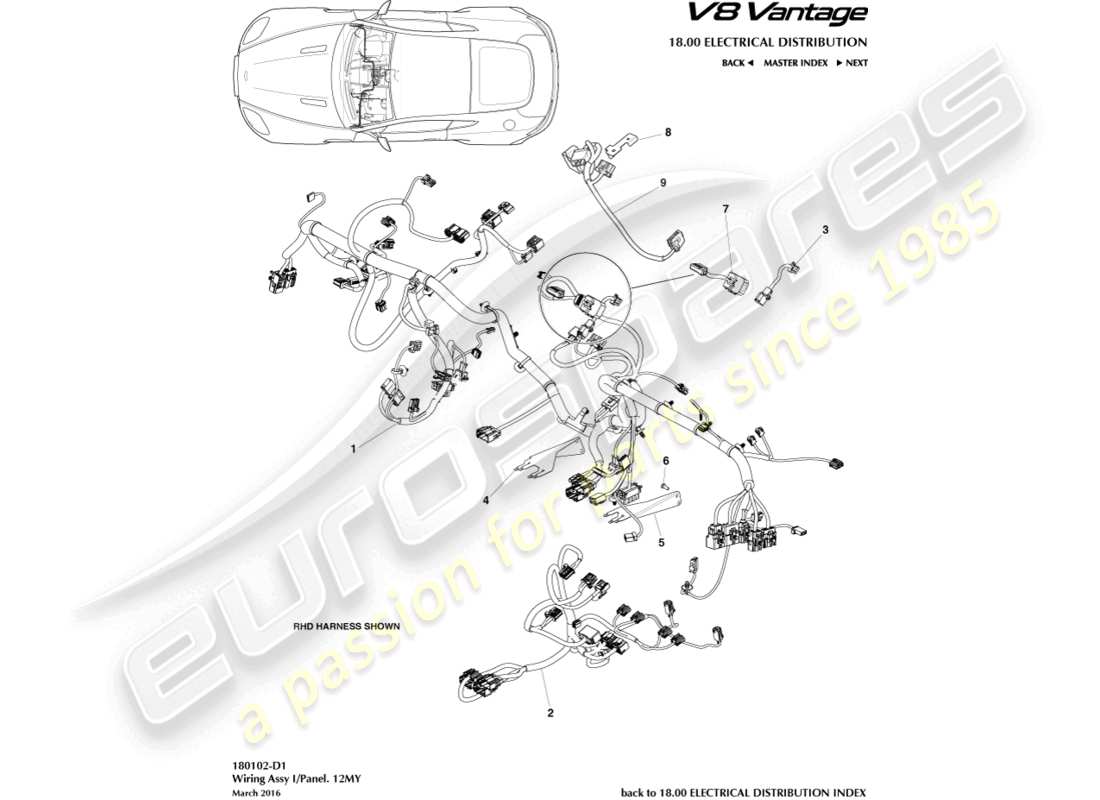

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: CG43-14K024-AD
          HARNESS, FACIA, RHD, B+O
          12MY
          RHD B&O FACIA HRN Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14K024-AD
          HARNESS, FACIA, RHD, B+O
          From 13MY To VIN C18161
          from £552.39
          from £552.39
          RHD B&O FACIA HRN Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14K024-AE
          HARNESS, FACIA, RHD, B+O
          From VIN C18162 To 16MY
          HARNESS, FACIA, RHD, B+O Genuine Aston Martin - New (to order)
          # 1
          MPN: GG33-14K024-AB
          HARNESS, FACIA, RHD, B+O
          FROM 16MY
          from £687.15
          from £687.15
          HARNESS, FACIA, RHD, B+O Genuine Aston Martin - New (to order)
          # 1
          MPN: CG43-14401-AD
          HARNESS, FACIA, LHD, B+O
          12MY
          from £543.85
          from £543.85
          LHD B&O FACIA HRNS Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14401-AD
          HARNESS, FACIA, LHD, B+O
          From 13MY To VIN C18189
          HARNESS ASSEMBLY, FACIA, LHD, BANG & OLUFSEN (B&O) Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14401-AE
          HARNESS, FACIA, LHD, B+O
          From VIN C18190 To 16MY
          HARNESS, FACIA, LHD, B+O Genuine Aston Martin - New (to order)
          # 1
          MPN: GG33-14401-AB
          HARNESS, FACIA, LHD, B+O
          FROM 16MY
          from £637.39
          from £637.39
          HARNESS, FACIA, LHD, B+O Genuine Aston Martin - New (to order)
          # 1
          MPN: CG43-14K024-BD
          HARNESS, FACIA, RHD, ALPINE
          12MY
          from £560.98
          from £560.98
          WIRING ASSEMBLY, FACIA, RHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14K024-BD
          HARNESS, FACIA, RHD, ALPINE
          From 13MY To VIN C18061
          HARNESS ASSEMBLY, FACIA, RHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14K024-BE
          HARNESS, FACIA, RHD, ALPINE
          From VIN C18062 To 16MY
          HARNESS, FACIA, RHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: GG33-14K024-BB
          HARNESS, FACIA, RHD, ALPINE
          FROM 16MY
          from £685.27
          from £685.27
          HARNESS, FACIA, RHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: CG43-14401-BD
          HARNESS, FACIA, LHD, ALPINE
          12MY
          from £541.97
          from £541.97
          WIRING ASSEMBLY, FACIA, LHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14401-BD
          HARNESS, FACIA, LHD, ALPINE
          From 13MY To VIN C18067
          HARNESS ASSEMBLY, FACIA, LHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: DG43-14401-BE
          HARNESS, FACIA, LHD, ALPINE
          From VIN C18068 To 16MY
          HARNESS, FACIA, LHD, ALPINE Genuine Aston Martin - New (to order)
          # 1
          MPN: GG33-14401-BB
          HARNESS, FACIA, LHD, ALPINE
          FROM 16MY
          from £634.24
          from £634.24
          HARNESS, FACIA, LHD, ALPINE Genuine Aston Martin - New (to order)
          # 2
          MPN: CD23-14B079-AC
          HARNESS, CENTRE STACK, MANUAL
          Up to 13MY
          from £311.66
          from £311.66
          HARNESS, CENTRE STACK, MANUAL Genuine Aston Martin - New (to order)
          # 2
          MPN: DD23-14B079-AC
          HARNESS, CENTRE STACK, MANUAL
          From 13MY To 16MY
          from £311.66
          from £311.66
          WIRING ASSEMBLY, CONSOLE PANEL Genuine Aston Martin - New (to order)
          # 2
          MPN: GG33-14B079-BC
          HARNESS, CENTRE STACK, MANUAL
          From 16MY. Includes Item 7
          from £465.28
          from £465.28
          HARNESS, CENTRE STACK, MANUAL Genuine Aston Martin - New (to order)
          # 2
          MPN: CG33-14B079-AD
          HARNESS, CENTRE STACK, ASM
          Up to 13MY
          from £754.70
          from £754.70
          HARNESS, CENTRE STACK, ASM Genuine Aston Martin - New (to order)
          # 2
          MPN: DG33-14B079-AC
          HARNESS, CENTRE STACK, ASM
          From 13MY To 16MY
          from £266.07
          from £266.07
          HARNESS, CENTRE STACK, ASM Genuine Aston Martin - New (to order)
          # 2
          MPN: GG33-14B079-AC
          HARNESS, CENTRE STACK, ASM
          FROM 16MY
          from £630.24
          from £630.24
          HARNESS, CENTRE STACK, ASM Genuine Aston Martin - New (to order)
          # 3
          MPN: 8D33-9137-BA
          HARNESS ASSY, KEY READER LINK
          from £21.19
          from £21.19
          PATS LINK HARNESS Genuine Aston Martin - New (to order)
          # 4
          MPN: 9D33-14N003-AA
          INLINE BRACKET, IP, RHS
          from £15.56
          from £15.56
          B&O RHS IP BRACKET Genuine Aston Martin - New (to order)
          # 5
          MPN: 9D33-14N003-BB
          INLINE BRACKET, IP, LHS
          from £17.95
          from £17.95
          B&O LHS IP BRACKET Genuine Aston Martin - New (to order)
          # 6
          MPN: W504692-S437M
          SCREW M5X12 PAN HD 6 LOBE
          M5 X 8 PAN HEAD Genuine Aston Martin - New (to order)
          # 7
          MPN: CG43-14D454-BC
          WIRING ASSY, SCREEN SATNAV
          Up to 16MY
          from £122.61
          from £122.61
          SAT NAV LINK Genuine Aston Martin - New (to order)
          # 8
          MPN: HG33-14B544-AB
          BRACKET, COBRA FUSE RELAY
          FROM 17MY
          from £20.50
          from £20.50
          TRACKER FUSE BRACKET Genuine Aston Martin - New (to order)
          # 9
          MPN: HG43-9137-AA
          LINK ASSY, TRACKER
          FROM 17MY
          from £63.93
          from £63.93
          LINK ASSEMBLY, TRACKER Genuine Aston Martin - New (to order)
          # -
          -
          MEDIA ORIENTED SYSTEM TRANSPORT (MOST), SERVICE LOOP
          Digital Radio, Not Illustrated.
