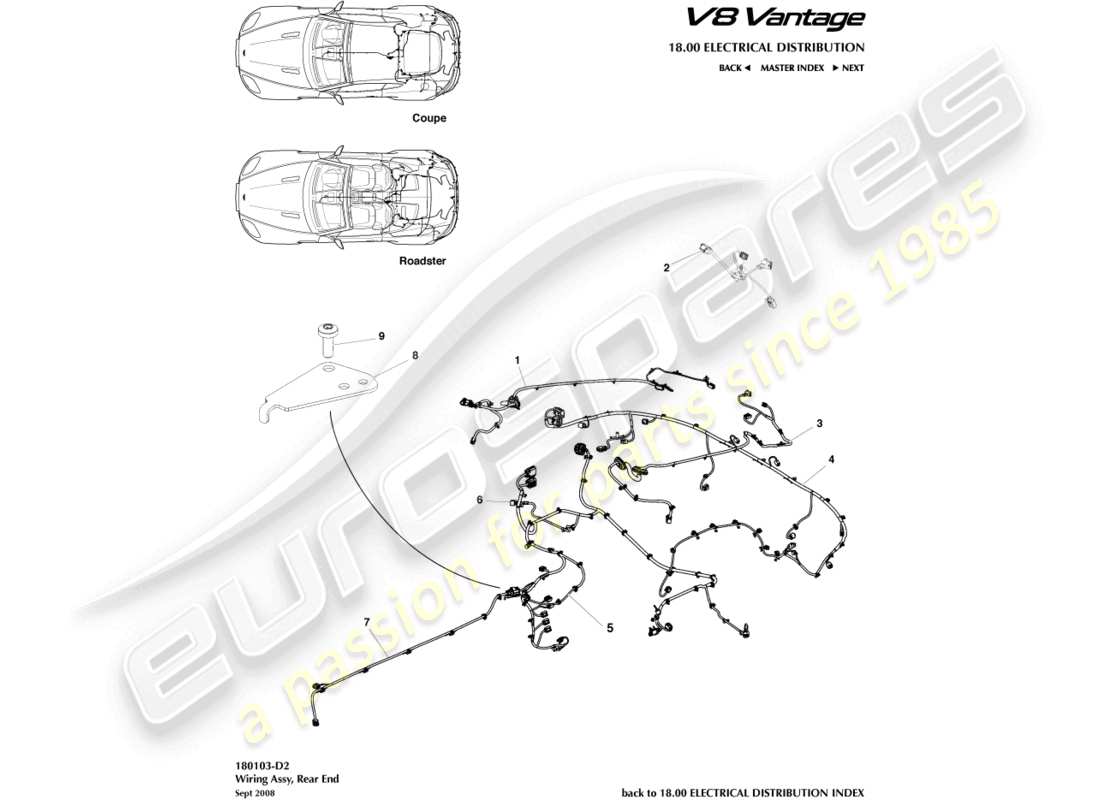

180103-D2 - Rear End Harness

Aston Martin V8 Vantage (2009) Rear End Harness Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 6G33-14A227-AG
      HARNESS, TAILGATE, RHS
      Coupe to VIN C07648
      from £64.67
      from £64.67
      HARNESS, TAILGATE, RHS Genuine Aston Martin - New (to order)
      HARNESS, TAILGATE, RHS Genuine Aston Martin - Used In stock
      # 1
      MPN: 8G33-14A227-AB
      HARNESS, TAILGATE, RHS
      Coupe, 08MY From VIN C07651
      from £127.05
      from £127.05
      HARNESS, TAILGATE, RHS Genuine Aston Martin - New (to order)
      # 1
      MPN: 6G33-14A227-FC
      HARNESS, BOOT LID TO LATCH/CHMSL
      Roadster, Up To VIN D07644
      from £93.11
      from £93.11
      HARNESS, BOOT LID TO LATCH/CHMSL Genuine Aston Martin - New (to order)
      # 1
      MPN: 8G33-14A227-FB
      HARNESS, BOOT LID TO LATCH/CHMSL
      Roadster, 08MY, From VIN D07649
      from £275.57
      from £275.57
      HARNESS, BOOT LID TO LATCH/CHMSL Genuine Aston Martin - New (to order)
      # 2
      MPN: 6G33-14A227-EC
      HARNESS, BOOT LID, GPS
      Roadster, From 07MY
      from £30.66
      from £30.66
      HARNESS, BOOT LID, GPS Genuine Aston Martin - New (to order)
      # -
      -
      FOAM PAD, ANTI RATTLE
      Roadster, From 07MY
      # 3
      MPN: 6G33-14A227-CF
      HARNESS, TAILGATE, LHS
      Coupe, Up To 10MY
      from £108.76
      from £108.76
      WIRING ASSEMBLY, TAILGATE LHS Genuine Aston Martin - New (to order)
      # 3
      MPN: BG33-14A227-CA
      HARNESS, TAILGATE, LHS
      Coupe, From 10MY to 16MY
      from £22.47
      from £22.47
      HARNESS, TAILGATE, LHS Genuine Aston Martin - New (to order)
      # 3
      MPN: GG33-14A227-CA
      HARNESS, TAILGATE, LHS
      Coupe, From 16MY
      from £21.15
      from £21.15
      HARNESS, TAILGATE, LHS Genuine Aston Martin - New (to order)
      # 4
      MPN: 6G33-15B484-CB
      HARNESS, REAR BUMPER, LESS PARKING SENSORS, FEDERAL
      HARNESS, REAR BUMPER, LESS PARKING SENSORS, FEDERAL Genuine Aston Martin - New (to order)
      # 4
      MPN: 6G33-15B484-DB
      HARNESS, REAR BUMPER, LESS PARKING SENSORS, ROW
      HARNESS, REAR BUMPER, LESS PARKING SENSORS, ROW Genuine Aston Martin - New (to order)
      # 4
      MPN: 6G33-15B484-BE
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      Up To VIN C07648
      from £427.61
      from £427.61
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 4
      MPN: 7G33-15B484-BB
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      08MY, From VIN D07649, To 12.25MY
      from £427.61
      from £427.61
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 4
      MPN: BG33-15B484-AC
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      V8S From 11MY/ All from 12.25MY, to 13MY
      from £446.65
      from £446.65
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 4
      MPN: DG33-15B484-AB
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      From 13MY To 16MY
      from £521.65
      from £521.65
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 4
      MPN: GG33-15B484-AA
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      FROM 16MY
      from £199.57
      from £199.57
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 4
      MPN: HG3Y-15B484-AA
      HARNESS, REAR BUMPER, WITH PARKING SENSORS
      GT8
      from £538.69
      from £538.69
      HARNESS, REAR BUMPER, WITH PARKING SENSORS Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G33-7E443-AD
      HARNESS ,TRANSAXLE, MANUAL
      07MY
      from £51.05
      from £51.05
      HARNESS ,TRANSAXLE, MANUAL Genuine Aston Martin - New (to order)
      HARNESS ,TRANSAXLE, MANUAL Genuine Aston Martin - Used In stock
      # 5
      MPN: 8G33-7E443-AA
      HARNESS ,TRANSAXLE, MANUAL
      08MY
      from £99.87
      from £99.87
      HARNESS ,TRANSAXLE, MANUAL Genuine Aston Martin - New (to order)
      # 5
      MPN: BG33-7E443-AB
      HARNESS ,TRANSAXLE, MANUAL
      FROM VIN D07649 TO VIN C17118
      from £85.58
      from £85.58
      WIRING ASSEMBLY, MANUAL TRANSMISSION Genuine Aston Martin - New (to order)
      # 5
      MPN: DG33-7E443-AA
      HARNESS ,TRANSAXLE, MANUAL
      13MY From VIN C17119 to VIN C17596
      from £285.09
      from £285.09
      WIRING ASSEMBLY, MANUAL TRANSMISSION Genuine Aston Martin - New (to order)
      # 5
      MPN: DG33-7E443-AB
      HARNESS ,TRANSAXLE, MANUAL
      FROM VIN C17597
      from £76.66
      from £76.66
      HRN ASSEMBLY AXLE MAN TRN Genuine Aston Martin - New (to order)
      # 6
      MPN: 6G33-7C078-AF
      HARNESS ,TRANSAXLE, ASM
      from £1,180.14
      from £1,180.14
      HARNESS ,TRANSAXLE, ASM Genuine Aston Martin - New (to order)
      # 6
      MPN: 9G33-7C078-AB
      HARNESS ,TRANSAXLE, ASM
      09MY
      from £1,038.31
      from £1,038.31
      HARNESS ,TRANSAXLE, ASM Genuine Aston Martin - New (to order)
      # 6
      MPN: BG33-7C078-BA
      HARNESS ,TRANSAXLE, ASM 6 SPEED
      11MY
      from £960.35
      from £960.35
      HARNESS ,TRANSAXLE, ASM 6 SPEED Genuine Aston Martin - New (to order)
      # 6
      MPN: DG33-7C078-BA
      HARNESS ,TRANSAXLE, ASM 6 SPEED
      13MY From VIN C17119 to VIN D17563
      from £979.34
      from £979.34
      HARNESS ,TRANSAXLE, ASM 6 SPEED Genuine Aston Martin - New (to order)
      # 6
      MPN: DG33-7C078-BB
      HARNESS ,TRANSAXLE, ASM 6 SPEED
      FROM VIN D17564
      from £262.41
      from £262.41
      HARNESS ,TRANSAXLE, ASM 6 SPEED Genuine Aston Martin - New (to order)
      # 6
      MPN: BG33-7C078-AC
      HARNESS ,TRANSAXLE, ASM 7 SPEED
      Up To VIN C17118
      from £798.71
      from £798.71
      HARNESS ASSEMBLY, AXLE TRANSMISSION ASM (7 SPEED) Genuine Aston Martin - New (to order)
      # 6
      MPN: DG33-7C078-AA
      HARNESS ,TRANSAXLE, ASM 7 SPEED
      FROM VIN C17119 TO VIN D17563
      from £1,400.54
      from £1,400.54
      HARNESS ,TRANSAXLE, ASM 7 SPEED Genuine Aston Martin - New (to order)
      # 6
      MPN: DG33-7C078-AB
      HARNESS ,TRANSAXLE, ASM 7 SPEED
      FROM D17564
      from £522.62
      from £522.62
      HARNESS ,TRANSAXLE, ASM 7 SPEED Genuine Aston Martin - New (to order)
      # 7
      MPN: 6G33-9137-KE
      HARNESS, CPS LINK, AUTO
      6 speed ASM
      from £153.98
      from £153.98
      HARNESS, CPS LINK, AUTO Genuine Aston Martin - New (to order)
      # 7
      MPN: BG33-9137-KB
      HARNESS, CPS LINK, AUTO
      7 speed ASM
      from £159.21
      from £159.21
      CPS LINK HARNESS Genuine Aston Martin - New (to order)
      # 8
      MPN: 6G33-14N003-AB
      BRACKET, ASM INLINE HARNESS
      from £10.68
      from £10.68
      BRACKET, ASM INLINE HARNESS Genuine Aston Martin - New (to order)
      # 9
      MPN: 701553
      SCREW, M6X16
      from £0.47
      from £0.47
      SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
      # 9
      MPN: 702084
      SCREW, M5X12
      Supersession
      Supersession
      Genuine Aston Martin (no longer available to order)
      # -
      -
      STUD CLIP, TIE WRAP, WHITE
