aston martin v8 vantage (2009) fuse panels parts diagram

180106 - Fuse Panels

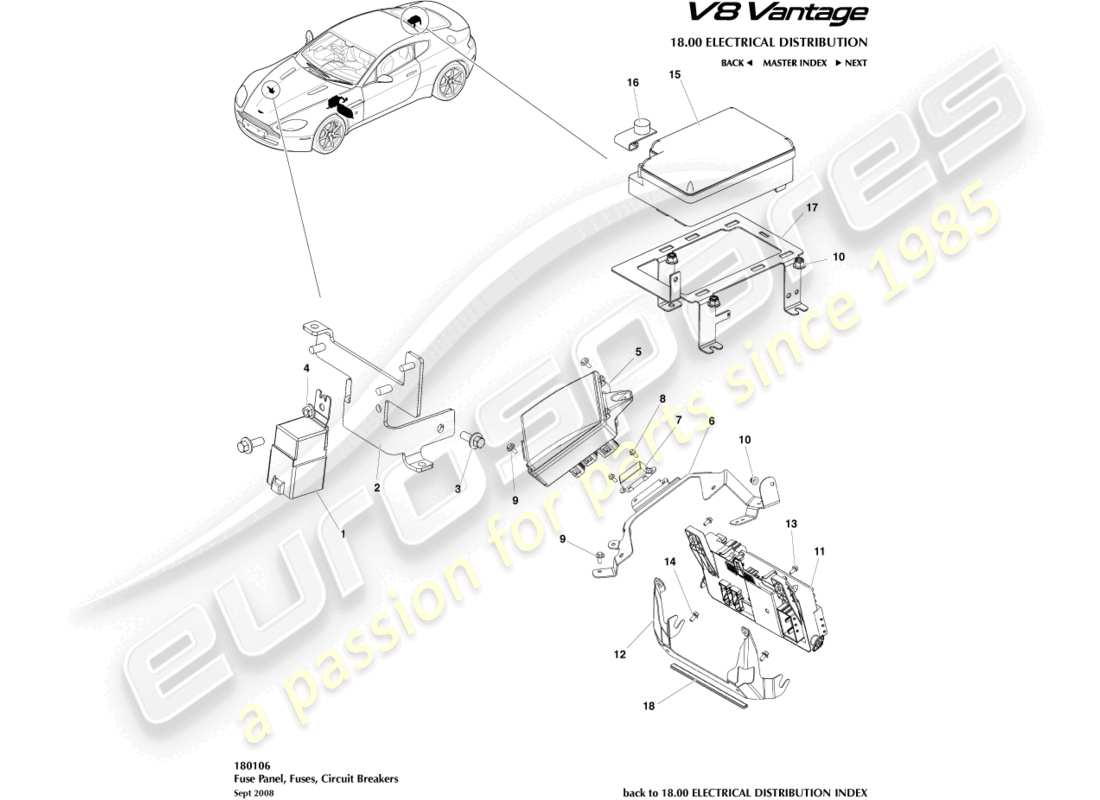

Aston Martin V8 Vantage (2009) Fuse Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 6G33-14N089-BA
                          RELAY, SECONDARY AIR INJECTION, HI PWR
                          from £16.98
                          from £16.98
                          SNDARY AIR RLAY Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 6G33-14N089-AC
                          BRACKET, SECONDARY AIR INJECTION RELAY
                          from £36.33
                          from £36.33
                          BRACKET, SECONDARY AIR INJECTION RELAY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 703265
                          BOLT, M6X16
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 702295
                          NUT, FLG, M5
                          from £0.47
                          from £0.47
                          NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 4G43-14A173-AF
                          FUSE BOX, ENGINE BAY, 35W FPDB
                          from £490.41
                          from £490.41
                          This part replaces part number 4G43-37-10589 which we have in stock
                          FUSEBOX ASSEMBLY, ENGINE BAY Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 8D33-14A173-AB
                          FUSE BOX, ENGINE BAY, 09MY
                          09MY
                          from £294.62
                          from £294.62
                          ENGINE BAY FUSE BOX Genuine Aston Martin - New (to order)
                          # 5
                          MPN: BG33-14A173-AB
                          FUSEBOX, ENGINE BAY
                          11MY
                          from £294.62
                          from £294.62
                          ENGINE BAY FUSE BOX Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 6G33-14A173-BE
                          BRACKET, ENGINE BAY FUSE BOX, RHD
                          For vehicles with A/C Gas R134a only
                          BRACKET, ENGINE BAY FUSE BOX, RHD Genuine Aston Martin - New (to order)
                          BRACKET, ENGINE BAY FUSE BOX, RHD Genuine Aston Martin - Used In stock
                          # 6
                          MPN: 6G33-14A173-BF
                          BRACKET, ENGINE BAY FUSE BOX, RHD
                          For vehicles with A/C Gas HFO1234a only
                          from £41.30
                          from £41.30
                          BRACKET, ENGINE BAY FUSE BOX, RHD Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 6G33-14A173-CF
                          BRACKET, ENGINE BAY FUSE BOX, LHD
                          For vehicles with A/C Gas R134a only
                          from £35.00
                          from £35.00
                          BRACKET, ENGINE BAY FUSE BOX, LHD Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 6G33-14A173-CG
                          BRACKET, ENGINE BAY FUSE BOX, LHD
                          For vehicles with A/C Gas HFO1234a only
                          from £112.17
                          from £112.17
                          BRACKET, ENGINE BAY FUSE BOX, LHD Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 6G33-14D344-AA
                          FUSE, MIDI, 40A
                          from £7.39
                          from £7.39
                          FUSE, MIDI, 40A Genuine Aston Martin - New (to order)
                          # -
                          -
                          HOLDER, FUSE, MIDI
                          # 9
                          MPN: 703151
                          SCREW, WASH HD, M6X16
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                          # 10
                          MPN: 702429
                          NUT, FLG, M6
                          from £0.47
                          from £0.47
                          LOCKNUT M6 Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 4G43-37-11201
                          MODULE, CENTRAL ELECTRONIC ASSY
                          from £285.09
                          from £285.09
                          MODULE, CENTRAL ELECTRONIC ASSEMBLY Genuine Aston Martin - New (to order)
                          MODULE, CENTRAL ELECTRONIC ASSEMBLY Genuine Aston Martin - Used In stock
                          # 11
                          MPN: 8G43-14C245-AA
                          MODULE, CENTRAL ELECTRONIC ASSY
                          08MY From (V) D07649
                          from £570.17
                          from £570.17
                          Central Electronic Module Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 8G43-14C245-AA
                          MODULE, CENTRAL ELECTRONIC ASSY
                          10MY From (V) 13435. Order 702802 Car Config when ordering CEM
                          from £570.17
                          from £570.17
                          Central Electronic Module Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 8G43-14C245-AA
                          MODULE, CENTRAL ELECTRONIC ASSY
                          13MY. Order 702802 Car Config when ordering CEM
                          from £570.17
                          from £570.17
                          Central Electronic Module Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 4G43-13B525-BG
                          BRACKET, CABIN FUSE BOX
                          from £13.59
                          from £13.59
                          BRACKET CABIN F/BOX CEM Genuine Aston Martin - New (to order)
                          BRACKET CABIN F/BOX CEM Genuine Aston Martin - Used In stock
                          # 13
                          MPN: 697818
                          SCREW, M5X12
                          Up to 15MY
                          from £1.77
                          from £1.77
                          SCREW M5 X 12 FLANGE BK Genuine Aston Martin - New (to order)
                          # 13
                          MPN: W500002-S440
                          SCREW, M5X12
                          FROM 15MY
                          SCREW, M5X12 Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 700606
                          SCREW, M6X12
                          from £0.47
                          from £0.47
                          SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 4G43-14A073-AE
                          FUSEBOX, REAR
                          Up to 07MY. Ensure Fuse Ratings are matched to car
                          from £117.07
                          from £117.07
                          FUSEBOX, REAR Genuine Aston Martin - New (to order)
                          FUSEBOX, REAR Genuine Aston Martin - Used In stock
                          # 15
                          MPN: 4G43-14A073-AJ
                          FUSEBOX, REAR
                          FROM 07MY
                          from £266.07
                          from £266.07
                          FUSEBOX, REAR 22W RPDB Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 37-85236
                          PROTECTOR, POWER STUD
                          from £3.49
                          from £3.49
                          PROTECTOR-POWER STUD Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 6G33-14A301-AD
                          BRACKET, BOOT FUSE BOX MOUNTING
                          Coupe
                          from £13.61
                          from £13.61
                          BRACKET, REAR FUSEBOX MOUNTING Genuine Aston Martin - New (to order)
                          BRACKET, REAR FUSEBOX MOUNTING Genuine Aston Martin - Used In stock
                          # 17
                          MPN: 6G33-14A301-BB
                          BRACKET, BOOT FUSE BOX MOUNTING
                          Roadster
                          from £15.56
                          from £15.56
                          BRACKET, REAR FUSEBOX MOUNTING Genuine Aston Martin - New (to order)
                          # 18
                          MPN: 37-86186
                          EDGE PROTECTION STRIP
                          from £1.07
                          from £1.07
                          EDGE PROTECTION STRIP Genuine Aston Martin - New (to order)
                          # -
                          -
                          SCREW, WASH HD, M6X16 BDS SW BRKT
                          # -
                          -
                          BRACKET, FUSE BOX, RHD
                          # -
                          -
                          BRACKET, FUSE BOX, LHD
                          # -
                          -
                          RELAY, ENGINE BAY AND BOOT FUSE BOX
                          # -
                          -
                          FUSE, 60A, FAN PACK
                          # -
                          -
                          FUSE, 80A, FAN PACK, 09MY
                          09MY
                          # -
                          -
                          FUSE MIDI 5A
                          # -
                          -
                          FUSE MIDI 7.5A
                          # -
                          -
                          FUSE MIDI 10A
                          # -
                          -
                          FUSE MIDI 15A
                          # -
                          -
                          FUSE MIDI 20A
                          # -
                          -
                          FUSE MIDI 25A
                          # -
                          -
                          FUSE MIDI 30A
                          # -
                          -
                          FUSE MINI 5A
                          # -
                          -
                          FUSE MINI 7.5A
                          # -
                          -
                          FUSE MINI 10A
                          # -
                          -
                          FUSE MINI 15A
                          # -
                          -
                          FUSE MINI 20A
                          # -
                          -
                          FUSE MINI 25A
                          # -
                          -
                          RELAY, ASM SYSTEM, 40A
