aston martin v8 vantage (2009) gps tuner parts diagram

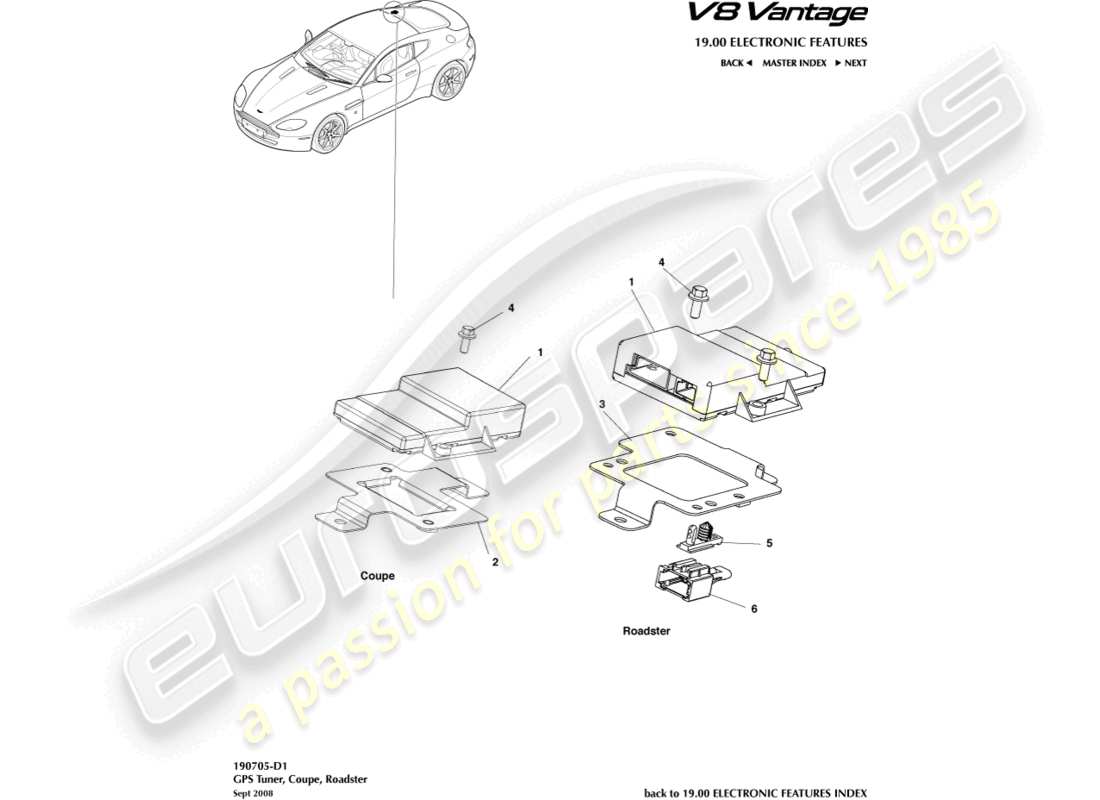

190705-D1 - GPS Tuner

Aston Martin V8 Vantage (2009) GPS Tuner Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 4G43-10E894-AC
      GPS, RECEIVER
      GPS, RECEIVER Genuine Aston Martin - New (to order)
      # 1
      MPN: 4G43-37-10309
      GPS, TUNER
      GPS, TUNER Genuine Aston Martin - New (to order)
      # 1
      MPN: 1R12-37-10563
      GPS, TUNER
      07MY
      GPS, TUNER Genuine Aston Martin - New (to order)
      # 1
      MPN: 4G43-37-10915
      GPS, TUNER
      08MY Frm (V) D07649
      TUNER, GPS Genuine Aston Martin - New (to order)
      # 2
      MPN: 4G43-10E887-BD
      BRACKET,GPS TUNER, COUPE
      07-Aug
      from £9.11
      from £9.11
      GPS TUNER BRACKET Genuine Aston Martin - New (to order)
      GPS TUNER BRACKET Genuine Aston Martin - Used In stock
      # 3
      MPN: 6G33-10E887-AB
      BRACKET,GPS TUNER, NON SDARS
      Roadster
      from £22.06
      from £22.06
      BRACKET,GPS TUNER, NON SDARS Genuine Aston Martin - New (to order)
      # 3
      MPN: 8G33-10E887-AA
      BRACKET, SDARS GPS MODULE
      Roadster 08MY From (V) D07649
      from £13.82
      from £13.82
      BRACKET, SDARS GPS MODULE Genuine Aston Martin - New (to order)
      # 4
      MPN: 697818
      SCREW, M5X12, GPS TO BRACKET
      Up to 15MY
      from £1.77
      from £1.77
      SCREW M5 X 12 FLANGE BK Genuine Aston Martin - New (to order)
      # 4
      MPN: W500002-S440
      SCREW, M5X12
      FROM 15MY
      SCREW, M5X12 Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G43-01-10042
      RETAINER, CONNECTOR
      from £0.47
      from £0.47
      CONNECTOR RETAINER Genuine Aston Martin - New (to order)
      # 6
      MPN: 4G43-18C951-HB
      MOST SERVICE LOOP
      from £12.48
      from £12.48
      MOST SERVICE LOOP Genuine Aston Martin - New (to order)
