1.1 - CYLINDER BLOCK

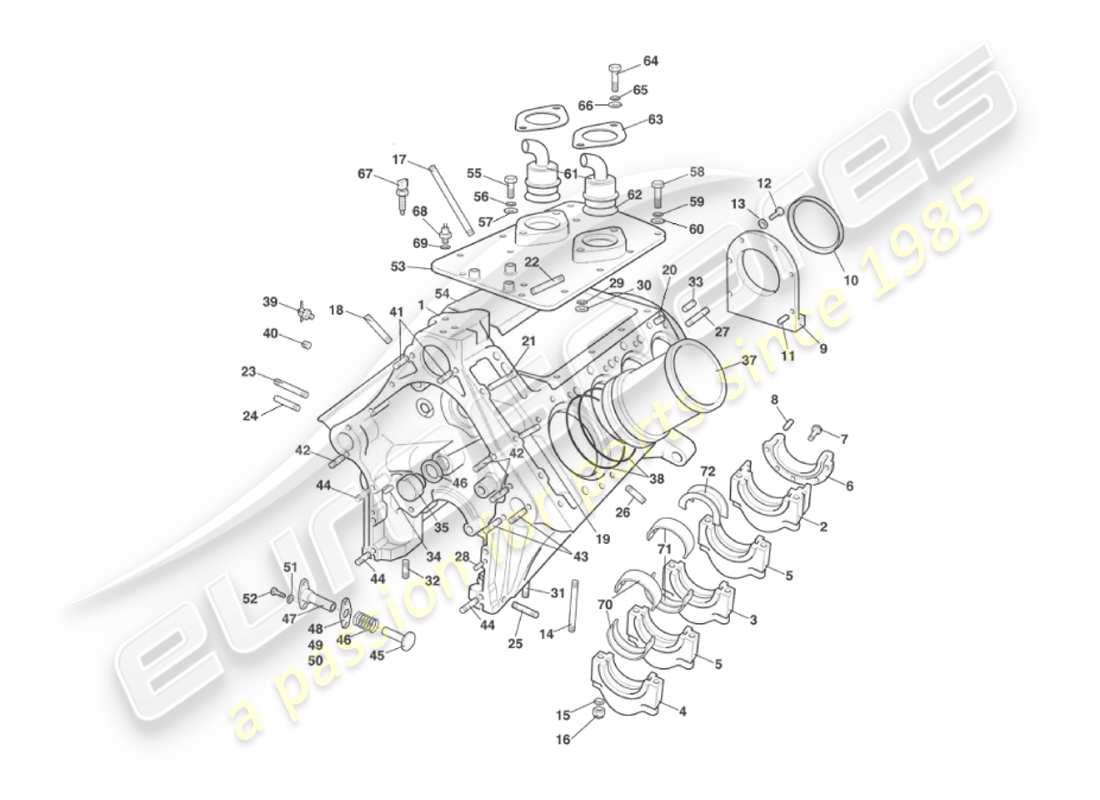

Aston Martin V8 Virage (1999) Cylinder Block Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 01-25625
CYLINDER BLOCK ASSY, STUDDED
from £9,214.55
from £9,214.55
# 1
MPN: 01-55831
CYLINDER BLOCK ASSY, STUDDED
Volante from April 1995.For later rear oil seal, item 9
# 2
-
MAIN BEARING CAP, REAR
Not supplied separately
# 3
-
MAIN BEARING CAP, CENTRE
Not supplied separately
# 4
-
MAIN BEARING CAP, FRONT
Not supplied separately
# 5
-
MAIN BEARING CAP, INTERMEDIATE
Not supplied separately
# 6
-
BEARING SEAL, REAR
Not used with later seal, item 9
# 7
MPN: 691637
SCREW, SOCKET BUTTON HEAD 2BA X 5/8 LONG
Not used with later seal, item 9
from £1.35
from £1.35
# 8
MPN: 692457
DOWEL, 11/32 X 1
Not used with later seal, item 9
from £7.84
from £7.84
# 8
MPN: 695852
DOWEL, 11/32 X 1
Later cars
from £3.98
from £3.98
# 9
MPN: 01-70684
OIL SEAL HOUSING
Volante from April 1995
from £252.69
from £252.69
# 10
MPN: 01-70686
OIL SEAL, REAR
Volante from April 1995
from £88.17
from £88.17
# 11
MPN: 123111
DOWEL, 5/16 X 5/8 OIL SEAL HOUSING TO BLOCK
from £4.05
from £4.05
# 12
MPN: 690332
CAPSCREW 1/4 UNC X 3/4 OIL SEAL HOUSING TO BLOCK
from £1.88
from £1.88
# 13
MPN: 119470
Washer, plain, 1/4 Oil seal housing to block
# -
-
LOCTITE SUPERFLEX SL, WHITE SILICONE
# -
-
LOCTITE, GRADE AVV
# -
-
LOCTITE SEALER
# 14
MPN: 080-001-0121
STUD, MAIN BEARING
from £29.93
from £29.93
# 15
MPN: 119474
WASHER, PLAIN 1/2
from £0.47
from £0.47
# 16
MPN: 691147
NUT, NYLOC 1/2 UNF
from £0.51
from £0.51
# 17
MPN: 01-23122
STUD, CYLINDER HEAD
from £30.91
from £30.91
# 18
MPN: 694260
STUD, 5/16 UNC/UNF. RH CYLINDER HEAD
from £9.00
from £9.00
# 19
MPN: 691113
STUD, 5/1.6UNC/UNF. CYLINDER HEAD
from £7.42
from £7.42
# 20
MPN: 694870
DOWEL, 1/4 DIA X 1/2 HEAD LOCATION
from £3.29
from £3.29
# 21
MPN: 06-26636
STUD, 5/16 X 4.625IN. LH CYLINDER HEAD
from £9.00
from £9.00
# 22
MPN: 694645
STUD, 3/8 UNC/UNF. CYLINDER HEAD
from £7.41
from £7.41
# 23
MPN: 694225
STUD, 3/8 UNC/UNF X 2.75 COMPRESSOR BRACKET
from £7.31
from £7.31
# 24
MPN: 694224
STUD, 5/16 UNC/UNF. COMPRESSOR BRACKET
from £9.00
from £9.00
# 25
MPN: 694222
STUD, 5/16 UNC/UNF. ALTERNATOR BRACKET
from £9.00
from £9.00
# 26
MPN: 690999
STUD, 5/16 UNC/UNF X 1 1/4 ENGINE MOUNTING
from £7.04
from £7.04
# 27
MPN: 691413
STUD, 7/16 UNC/UNF X 2.125 BELL HOUSING
from £7.42
from £7.42
# 28
MPN: 123111
DOWEL, 5/16 X 5/8 FRONT COVER
from £4.05
from £4.05
# 29
MPN: 690834
PLUG-SOCKET, 5/8 BSP OIL GALLERY TOP
from £26.02
from £26.02
# 30
MPN: 690835
WASHER, 29/32 X 1 1/4 OIL GALLERY TOP
from £2.53
from £2.53
# -
-
LOCTITE SEALER
# 31
MPN: 691596
STUD, 5/16 UNC/UNFX 1.75 OIL PUMP
from £4.77
from £4.77
# 32
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87 OIL PUMP
from £6.69
from £6.69
# 33
MPN: 691485
DOWEL, 0.4980 X 1 BLOCK/BELL HOUSING
from £20.24
from £20.24
# 34
MPN: 691105
RING, DOWEL 0.187 ID - BLOCK/CHAIN TENSIONER
from £10.27
from £10.27
# 35
MPN: 095-001-0107
PLUG, 3/4 BSP OIL GALLERY ENDS
from £24.79
from £24.79
# 36
MPN: 691564
WASHER, 3/4 COPPER PLUG, OIL GALLERY
from £4.38
from £4.38
# -
-
HERMETITE, GREEN OIL GALLERY PLUGS
# 37
MPN: 01-26777
Cylinder liner, Grade A
from £345.74
from £345.74
# 37
MPN: 01-26834
Cylinder Liner, Grade B
Alternative
from £367.06
from £367.06
# 38
MPN: 080-001-0107
O' ring, cylinder liner
# 39
MPN: 691487
WATER TAP 1/4 BSP
Virage. Volante up to (V) 60101
from £79.40
from £79.40
# 40
MPN: 696055
PLUG, 1/4 BSP
Volante From (V) 60102
from £7.92
from £7.92
# -
-
CORE PLUG, 3/4 CYLINDER BLOCK
Volante from (V) 60111 excl 60113
# -
-
ADHESIVE
Volante from (V) 60111 excl 60113
# 41
MPN: 691597
STUD, 5/16 UNC/UNF X 3.12 TIMING COVER ATTACH
from £8.42
from £8.42
# 42
MPN: 691113
STUD, 5/16 UNC/UNF X 2.75 TIMING COVER ATTACH
from £7.42
from £7.42
# 43
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87 TIMING COVER ATTACH
from £6.69
from £6.69
# 44
MPN: 691048
STUD, 5/16 UNC/UNF X 2.1 TIMING COVER ATTACH
from £6.84
from £6.84
# 45
MPN: 01-17541
OIL PRESSURE RELIEF VALVE
Virage. Volante up to (V) 60174
# 45
MPN: 01-72930
OIL PRESSURE RELIEF VALVE
Volante From (V) 60175
from £430.82
from £430.82
# 46
MPN: 023-001-0133
SPRING RELIEF VALVE
from £25.41
from £25.41
# 47
MPN: 023-001-0145
BUSH
Virage. Volante up to (V) 60174
from £88.43
from £88.43
# 47
MPN: 01-72929
BUSH
Volante From (V) 60175
from £75.86
from £75.86
# 48
MPN: 020-001-0147
GASKET, OIL RELIEF VALVE
from £3.54
from £3.54
# 49
MPN: 023-001-0170
SHIM
from £16.17
from £16.17
# 50
MPN: 080-001-0148
SHIM, 0.064 THICK
from £2.59
from £2.59
# 51
MPN: 692045
WASHER, M5
from £0.47
from £0.47
# 52
MPN: 123122
CAPSCREW 2BA X 5/8
from £0.82
from £0.82
# 53
MPN: 01-25981
VALLEY PLATE
Virage. Volante up to (V) 60101
from £323.18
from £323.18
# 54
MPN: 01-26421
BAFFLE PLATE
Virage. Volante up to (V) 60101
from £73.31
from £73.31
# 55
MPN: 123128
BOLT, 1/4 UNC X 5/8 BAFFLE PLATE TO VALLEY PLATE
Virage. Volante up to (V) 60101
from £1.24
from £1.24
# 56
MPN: 119480
WASHER, SPRING, 1/4 BAFFLE PLATE TO VALLEY PLATE
Virage. Volante up to (V) 60101
# 57
MPN: 119470
WASHER, PLAIN 1/4 BAFFLE PLATE TO VALLEY PLATE
Virage. Volante up to (V) 60101
# -
-
VALLEY PLATE
Volante From (V) 60102
# -
-
BAFFLE PLATE
Volante From (V) 60102
# -
-
SCREW, DURLOC, M6 X 12. BAFFLE PLATE TO VALLEY PLATE
Volante From (V) 60102
# -
-
MULTI GASKET
# 58
MPN: 123128
BOLT, 1/4 UNC X 7/8 VALLEY PLATE TO BLOCK
10 used from mid April 1991
from £1.24
from £1.24
# -
-
SCREW,1/4 UNC X L VALLEY PLATE TO BLOCK
From mid April 1991
# 59
MPN: 119480
WASHER, SPRING, 1/4 VALLEY PLATE TO BLOCK
# 60
MPN: 119470
WASHER, PLAIN 1/4 VALLEY PLATE TO BLOCK
# 61
MPN: 01-26422
BREATHER ASSEMBLY
from £128.42
from £128.42
# 62
MPN: 695291
0' RING, BREATHER
from £0.88
from £0.88
# 63
MPN: 01-20468
CLAMP PLATE, BREATHER
from £40.93
from £40.93
# 64
MPN: 510406
SETSCREW, 1/4 UNC X 3/4 BREATHER ATTACHMENT
from £0.73
from £0.73
# 65
MPN: 119480
WASHER, SPRING, 1/4 BREATHER ATTACHMENT
# 66
MPN: 119470
WASHER, PLAIN, 1/4 BREATHER ATTACHMENT
# -
-
LOCTITE 518. CLAMP PLATE TO VALLEY PLATE
# 67
MPN: 38-56091
SENDER UNIT, WATER TEMPERATURE
from £48.50
from £48.50
# 68
MPN: 37-21873
SENDER UNIT
from £100.83
from £100.83
# 69
MPN: 022-033-0202
Washer, copper
from £1.90
from £1.90
# 70
MPN: 01-18494
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, BLACK
from £49.43
from £49.43
# 70
MPN: 01-18495
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, RED
from £65.36
from £65.36
# 70
MPN: 01-18496
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, GREEN
from £65.36
from £65.36
# 70
MPN: 01-18497
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, BLACK
from £51.72
from £51.72
# 70
MPN: 01-18498
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, RED
from £48.07
from £48.07
# 70
MPN: 01-18499
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, GREEN
from £53.40
from £53.40
# 70
MPN: 01-18500
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, BLACK
from £45.15
from £45.15
# 70
MPN: 01-18501
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, RED
from £32.16
from £32.16
# 70
MPN: 01-18502
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, GREEN
from £47.32
from £47.32
# 71
MPN: 01-18503
BEARING SHELL, INTERMEDIATE, STANDARD, BLACK
from £41.04
from £41.04
# 71
MPN: 01-18504
BEARING SHELL, INTERMEDIATE, STANDARD, RED
from £41.04
from £41.04
# 71
MPN: 01-18505
BEARING SHELL, INTERMEDIATE, STANDARD, GREEN
from £61.04
from £61.04
# 71
MPN: 01-18506
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, BLACK
from £43.10
from £43.10
# 71
MPN: 01-18507
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, RED
from £41.04
from £41.04
# 71
MPN: 01-18508
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, GREEN
from £69.24
from £69.24
# 71
MPN: 01-18509
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, BLACK
from £41.04
from £41.04
# 71
MPN: 01-18510
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, RED
# 71
MPN: 01-18511
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, GREEN
# 72
MPN: 01-15883
WASHER, THRUST, UNCODED
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (1999) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (1999) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL, EMISSION CONTROL, EXHAUST PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (1999) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (1999) TROQUE CONVERTOR, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR, GEARBOX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (1999) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (1999) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (1999) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (1999) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (1999) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (1999) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (1999) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (1999) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (1999) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (1999) GASKET SETS PARTS DIAGRAM")
