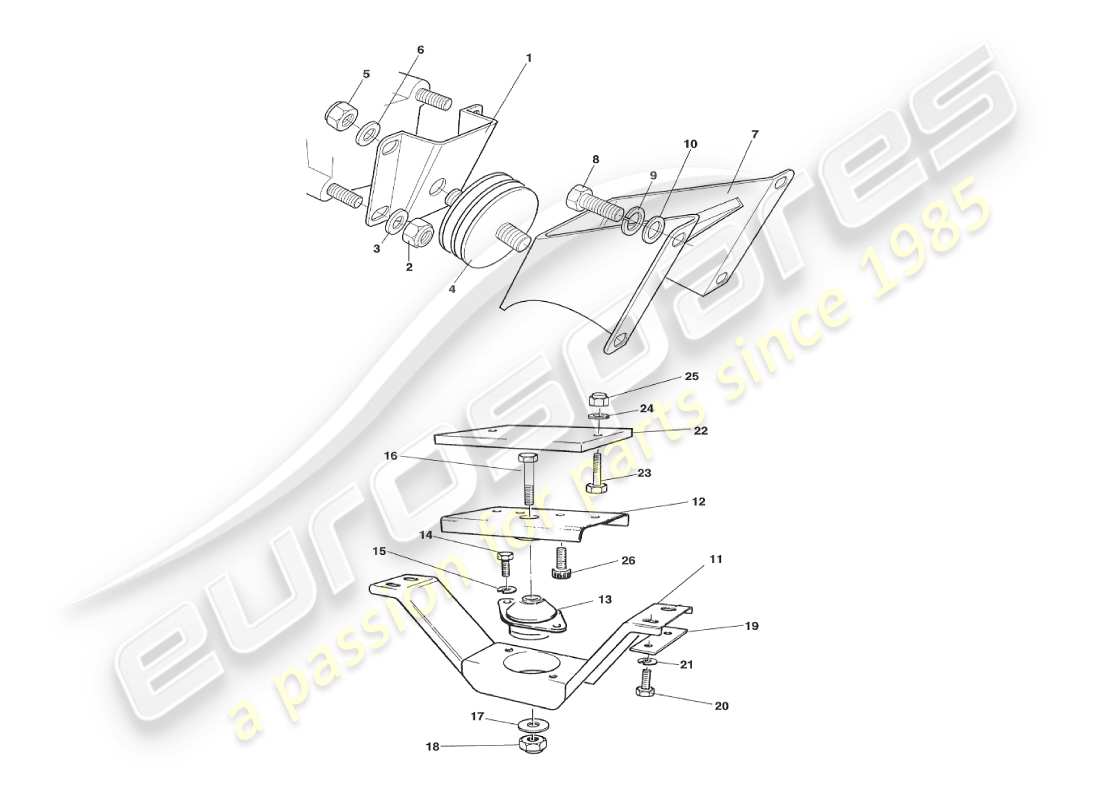

1.8 - Engine Mountings

Aston Martin V8 Virage (1999) Engine Mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 095-010-0004
          Bracket, engine mounting, RH
          from £53.38
          from £53.38
          BRKT-ENG MOUNTING FRT-RH Genuine Aston Martin - New (to order)
          # 1
          MPN: 095-010-0003
          Bracket, engine mounting, LH
          from £53.38
          from £53.38
          BRKT-ENG MOUNTING FRT-LH Genuine Aston Martin - New (to order)
          # 2
          MPN: 123115
          NUT, NYLOC, 5/16 UNF
          Mounting brackets to engine
          from £3.58
          from £3.58
          Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
          SPACER Genuine Ferrari Part - New (to order)
          # 3
          MPN: 119471
          WASHER, PLAIN, 5/16
          Mounting brackets to engine
          WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
          # 4
          MPN: 095-010-0101
          Engine mounting rubber
          from £110.04
          from £110.04
          Engine mounting rubber Genuine Aston Martin - New (to order)
          # 5
          MPN: 692034
          NUT, NYLOC, M10
          Mounting rubbers to brackets
          from £0.47
          from £0.47
          NUT M10 HEX SLK Genuine Aston Martin - New (to order)
          # 6
          MPN: 696280
          WASHER, PLAIN, M10
          Mounting rubbers to brackets
          from £0.47
          from £0.47
          WASHER M10 (FORM C ) Genuine Aston Martin - New (to order)
          # -
          -
          SHIM, THICK
          # -
          -
          SHIM, THIN
          # 7
          MPN: 10-26688
          ENGINE MOUNTING BRACKET ASSEMBLY
          from £149.55
          from £149.55
          ASSEMBLY ENGINE MOUNTING BRACKET Genuine Aston Martin - New (to order)
          # 8
          MPN: 692087
          SCREW, M8 X 20
          Engine mounting brackets to chassis
          Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
          # 9
          MPN: 692047
          WASHER, SPRING, M8
          Engine mounting brackets to chassis
          from £0.47
          from £0.47
          WASHER M8 SPRING Genuine Aston Martin - New (to order)
          # 10
          MPN: 692057
          WASHER, PLAIN, M8
          Engine mounting brackets to chassis
          from £0.47
          from £0.47
          WASHER M8 PLAIN Genuine Aston Martin - New (to order)
          # 11
          MPN: 42-54686
          GEARBOX MOUNTING CROSSMEMBER ASSEMBLY
          All cars. Auto Volante up to(V)60042
          from £66.86
          from £66.86
          W/A GBX MOUNTING XMBR Genuine Aston Martin - New (to order)
          # 11
          MPN: 42-62556
          GEARBOX MOUNTING CROSSMEMBER ASSEMBLY
          Auto Volante from (V) 60043
          from £145.03
          from £145.03
          W/A XMBR GBX MOUNTING Genuine Aston Martin - New (to order)
          # 12
          MPN: 42-54692
          MOUNTING BRACKET ASSEMBLY, GEARBOX
          All cars. Auto Volante up to(V)60042
          from £57.91
          from £57.91
          W/A MOUNTING BRACKET - GBX Genuine Aston Martin - New (to order)
          # 12
          MPN: 42-61941
          MOUNTING BRACKET ASSEMBLY, GEARBOX
          Auto Volante from (V) 60043
          from £78.53
          from £78.53
          W/A MOUNTING BRACKET G/BOX Genuine Aston Martin - New (to order)
          # 13
          MPN: 068-026-0150
          METALASTIC MOUNTING
          from £45.71
          from £45.71
          METALASTICK MOUNTING Genuine Aston Martin - New (to order)
          # 14
          MPN: 692087
          BOLT, M8 X 20
          Bush to crossmember
          Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
          # 15
          MPN: 692047
          WASHER, SPRING, M8
          Bush to crossmember
          from £0.47
          from £0.47
          WASHER M8 SPRING Genuine Aston Martin - New (to order)
          # 16
          MPN: 695192
          BOLT, M12 X 75
          Mounting bracket to bush
          from £3.31
          from £3.31
          BOLT M12 X 75 HEX HD Genuine Aston Martin - New (to order)
          # 17
          MPN: 692059
          WASHER, PLAIN, M12
          Mounting bracket to bush
          from £0.47
          from £0.47
          WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
          # 17
          MPN: 41-64177
          Washer, plain - From February 1993
          Mounting bracket to bush
          Washer, plain - From February 1993 Genuine Aston Martin - New (to order)
          # 18
          MPN: 692093
          NUT, NYLOC, M12
          Mounting bracket to bush
          from £0.47
          from £0.47
          NUT M12 HEX SLK Genuine Aston Martin - New (to order)
          # 19
          MPN: 42-54689
          SPREADER PLATE
          Crossmember to chassis
          from £1.66
          from £1.66
          SPREADER PLATE Genuine Aston Martin - New (to order)
          # 20
          MPN: 692087
          BOLT, M8 X 20
          Crossmember to chassis
          Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
          # 21
          MPN: 692047
          WASHER, SPRING, M8
          Crossmember to chassis
          from £0.47
          from £0.47
          WASHER M8 SPRING Genuine Aston Martin - New (to order)
          # 22
          MPN: 41-54743
          SPACER, MOUNTING BRACKET TO GEARBOX
          MANUAL only
          from £17.69
          from £17.69
          SPACER Genuine Aston Martin - New (to order)
          # 23
          MPN: 695201
          BOLT, M12 X 55
          Mounting.brkt to g/box.Manual only
          from £1.92
          from £1.92
          BOLT M12 X 55 HEX HD Genuine Aston Martin - New (to order)
          # 24
          MPN: 692059
          WASHER, PLAIN, M12
          Mounting.brkt to g/box.Manual only
          from £0.47
          from £0.47
          WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
          # 25
          MPN: 692093
          NUT, NYLOC, M12
          Mounting.brkt to g/box.Manual only
          from £0.47
          from £0.47
          NUT M12 HEX SLK Genuine Aston Martin - New (to order)
          # 26
          MPN: 694295
          CAPSCREW, 7/16 UNC X 3/4 - MTG BRKT TO G/BOX. AUTO
          Virage. Volante up to 60042
          from £3.50
          from £3.50
          SCREW 7/16 UNC X 3/4 Genuine Aston Martin - New (to order)
          # -
          -
          LOCTITE' - MTG BRKT TO G/BOX. AUTO
          Virage. Volante up to 60042
          # -
          -
          SCREW,7/16 UNC X 1 - MTG BRKT TO G/BOX. AUTO
          Volante From (V) 60043
          # -
          -
          WASHER, SPRING, 7/16 - MTG BRKT TO G/BOX. AUTO
          Volante From (V) 60043
          # -
          -
          LOCTITE' - MTG BRKT TO G/BOX. AUTO
          Volante From (V) 60043
