aston martin v8 virage (1999) vacuum system parts diagram

2.4 - VACUUM SYSTEM

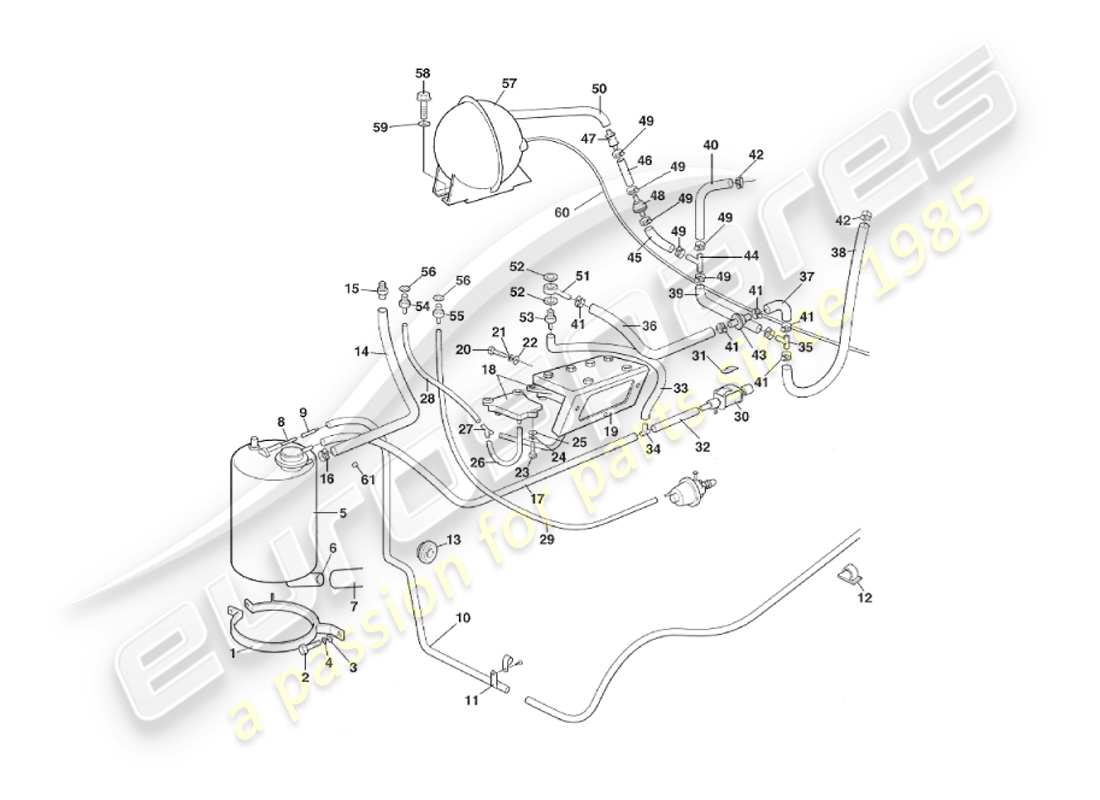

Aston Martin V8 Virage (1999) Vacuum System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 08-52975
Mounting bracket assembly, carbon canister
from £26.33
from £26.33
ASSEMBLY MOUNTING BRKT-C/CANN Genuine Aston Martin - New (to order)
# -
-
SCREW, M6 X 25
Clamp ring fixing
# -
-
NUT, NYLOC, M6
Clamp ring fixing
# -
-
WASHER, PLAIN, M6
Clamp ring fixing
# 2
MPN: 693962
SCREW, M6 X 25
Bracket to mounting
from £1.27
from £1.27
SCREW M6 X 25 HEX Genuine Aston Martin - New (to order)
# 3
MPN: 692056
WASHER, PLAIN, M6
Bracket to mounting
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 4
MPN: 692580
WASHER, SPRING, M6
Bracket to mounting
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 5
MPN: 097-034-0116
CARBON CANISTER
from £93.56
from £93.56
CARB/CANN Genuine Aston Martin - New (to order)
# 6
MPN: 34-15188
DRAIN CAP
from £2.00
from £2.00
DRAIN CAP Genuine Aston Martin - New (to order)
# 7
MPN: 692643
VACUUM HOSE, 11/32 ID
Bottom cap
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# 8
MPN: 692236
TUBING, NYLAFLEX, 55MM LONG
from £12.27
from £12.27
TUBE - NYLAFLEX Genuine Aston Martin - New (to order)
# 9
MPN: 097-034-0118
Adaptor, carbon canister to tank line
from £12.68
from £12.68
ADAPTOR Genuine Aston Martin - New (to order)
# 10
MPN: 692235
BREATHER TUBE, TANK LINE
3000mm long
from £6.08
from £6.08
TUBE - BREATHER Genuine Aston Martin - New (to order)
# -
-
GROMMET, 3/8
# 11
MPN: 692525
P' CLIP, 1/4 NYLON, TANK LINE
from £0.47
from £0.47
P-CLIP 1/4 NYLON Genuine Aston Martin - New (to order)
# 12
MPN: 694791
CLIP, SELF ADHESIVE, TANK LINE
from £1.28
from £1.28
CLIP - SELF ADHESIVE Genuine Aston Martin - New (to order)
# 13
MPN: 694836
GROMMET, 1/4 ID
Bulkhead holes
from £0.47
from £0.47
GROMMET 1/4 ID Genuine Aston Martin - New (to order)
# 14
MPN: 692307
HOSE
from £25.38
from £25.38
HOSE PETROL-DUNLOP Genuine Aston Martin - New (to order)
# 15
MPN: 08-55366
Nipple, 3/8 BSP, Plenum base to purge line
Nipple, 3/8 BSP, Plenum base to purge line Genuine Aston Martin - New (to order)
# 15
MPN: 08-55718
Nipple, 1/4 BSP, Plenum base to purge line
From January 1992
from £20.08
from £20.08
ASSEMBLY NIPPLE 1/4 BSPT Genuine Aston Martin - New (to order)
# 16
MPN: 692671
O' CLIP
from £0.99
from £0.99
CLIP `O' Genuine Aston Martin - New (to order)
# 17
MPN: 692546
TUBE, NYLON, 1/8 DIA X 1600MM
Reducer to 'Y'
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 18
MPN: 08-54411
ABSOLUTE PRESSURE SENSOR
ABSOLUTE PRESSURE SENSOR Genuine Aston Martin - New (to order)
# 19
MPN: 08-26637
MOUNTING BRACKET ASSY, ABSOLUTE PRESSURE SENSOR
from £49.30
from £49.30
ASSEMBLY M/BRKT ABS P/SNS Genuine Aston Martin - New (to order)
# 20
MPN: 692088
SCREW, M6 X 16, A.P.S BRACKET TO BULKHEAD
Up to Feb 1993
from £0.47
from £0.47
SCREW, FIG, M6X16 Genuine Aston Martin - New (to order)
# 20
MPN: 692267
SCREW, M6 X 30, A.P.S BRACKET TO BULKHEAD
From Feb 1993
from £0.66
from £0.66
BOLT M6 X 30 HEX Genuine Aston Martin - New (to order)
# -
-
SPACER, A.P.S BRACKET TO BULKHEAD
From Feb 1993
# 21
MPN: 692046
WASHER, SPRING, M6, A.P.S BRACKET TO BULKHEAD
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 22
MPN: 692762
WASHER, PLAIN, M6, A.P.S BRACKET TO BULKHEAD
from £0.47
from £0.47
WASHER M6 PLAIN Genuine Aston Martin - New (to order)
# 23
MPN: 692088
SCREW, M6 X 16, A.P.S TO MOUNTING BRACKET
from £0.47
from £0.47
SCREW, FIG, M6X16 Genuine Aston Martin - New (to order)
# 24
MPN: 692046
WASHER, SPRING, M6, A.P.S TO MOUNTING BRACKET
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 25
MPN: 692762
WASHER, PLAIN, M6, A.P.S TO MOUNTING BRACKET
from £0.47
from £0.47
WASHER M6 PLAIN Genuine Aston Martin - New (to order)
# 26
MPN: 692546
TUBE, POLYVON, 1/8 DIA.
A.P.S. to 'Y' connection
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 27
MPN: 08-21068
Y' connection
Y' connection Genuine Aston Martin - New (to order)
# 28
MPN: 692546
TUBE, POLYVON, 1/8 DIA.
Y' connection to plenum
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 29
MPN: 691504
TUBE, WHITE POLYVON
Fuel pressure regulator to plenum
TUBE, WHITE POLYVON Genuine Aston Martin - New (to order)
# 30
MPN: 89-26545
VACUUM VALVE, AIR INJECTION
Unleaded fuel engine
from £13.62
from £13.62
VACUUM VLV-AIR COND Genuine Aston Martin - New (to order)
# 31
MPN: 07-53228
MOUNTING BRACKET, VACUUM VALVE
Unleaded fuel engine
from £55.10
from £55.10
MOUNTING BRACKET Genuine Aston Martin - New (to order)
# 32
MPN: 692546
TUBE, POLYVON, 1/8 DIA, VAC VALVE TO CARBON CAN 'Y'
Unleaded fuel engine
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 33
MPN: 692546
TUBE, POLYVON, 1/8 DIA, VACUUM VALVE TO PLENUM
Unleaded fuel engine
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 34
MPN: 08-21067
TEE PIECE, 4-4-4, PLENUM TO VACUUM VALVE
Unleaded fuel engine
from £2.49
from £2.49
TEE PIECE Genuine Aston Martin - New (to order)
# -
-
TUBE, POLYVON, 1/8 DIA, 'Y' TO 'Y'
Unleaded fuel engine
# 35
MPN: 692181
TEE PIECE, NYLON, 10-10-10
from £4.77
from £4.77
TEE-PIECE 10MM NYLON Genuine Aston Martin - New (to order)
# 36
MPN: 692643
VACUUM HOSE, 11/32 ID X 7.1/2 LONG
Engine to valve
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# 37
MPN: 692643
VACUUM HOSE, 11/32 ID X 6.1/2 LONG
Valve to tee piece
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# 38
MPN: 692643
VACUUM HOSE, 11/32 ID X 38 LONG RHD
Vacuum tank to tee piece
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# 39
MPN: 692643
VACUUM HOSE, 11/32 ID X 9 LONG RHD
Tee piece to tee piece
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# 40
MPN: 692643
VACUUM HOSE, 11/32 ID X 10 LONG RHD
Servo to tee piece
from £35.64
from £35.64
HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
# -
-
VACUUM HOSE, 11/32 ID X 16 LONG LHD
Servo to tee piece
# 41
MPN: 692645
HOSE CLIP, 'OETIKER' TYPE
from £1.22
from £1.22
HOSE-CLIP - `O TYPE Genuine Aston Martin - New (to order)
# 42
MPN: 692634
HOSE CLIP, 12 - 22 MM
RHD - 5 used on LHD
from £1.21
from £1.21
HOSE-CLIP Genuine Aston Martin - New (to order)
# 43
MPN: 33-16743
NON-RETURN VALVE, ENGINE TO VACUUM PIPE
from £83.51
from £83.51
NON RETURN VALVE Genuine Aston Martin - New (to order)
# 44
MPN: 692446
TEE PIECE, NYLON, 10-6-10
from £8.20
from £8.20
TEE-PIECE - NYLON Genuine Aston Martin - New (to order)
# 45
MPN: 692644
VACUUM HOSE, 7/32 ID X 7 LONG, TEE TO VALVE
from £27.80
from £27.80
HOSE-7/32 BORE VAC Genuine Aston Martin - New (to order)
# 46
MPN: 692644
VACUUM HOSE, 7/32 ID X 3 LONG, VALVE TO REDUCER
from £27.80
from £27.80
HOSE-7/32 BORE VAC Genuine Aston Martin - New (to order)
# 47
MPN: 692732
STRAIGHT REDUCER, 6MM - 4MM
from £4.28
from £4.28
SOCKET -STRGT REDUCE Genuine Aston Martin - New (to order)
# 48
MPN: 694657
NON-RETURN VALVE
from £75.04
from £75.04
VALVE - NON-RETURN Genuine Aston Martin - New (to order)
# 49
MPN: 693168
HOSE CLIP, 'OETIKER' TYPE
from £0.66
from £0.66
CLIP OETIKER 157 Genuine Aston Martin - New (to order)
# 50
MPN: 692546
TUBE, POLYVON, 1/8 DIA X 3 LONG, TANK TO REDUCER
RHD
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 50
MPN: 692546
TUBE, POLYVON, 1/8 DIA X 32 LONG, TANK TO REDUCER
LHD
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 51
MPN: 069-033-0168
BANJO
from £52.85
from £52.85
BANJO Genuine Aston Martin - New (to order)
# 52
MPN: 022-033-0202
Washer, copper
from £1.85
from £1.85
WASHER-SEALING COPPR Genuine Aston Martin - New (to order)
# 53
MPN: 08-26434
BANJO BOLT ASSEMBLY
from £46.07
from £46.07
ASSEMBLY BANJO BOLT Genuine Aston Martin - New (to order)
# 54
MPN: 08-26227
ASSEMBLY, CHOKE UNION TO A.P.S.
from £60.28
from £60.28
ASSEMBLY CHOKE UNION APS Genuine Aston Martin - New (to order)
# 55
MPN: 08-21079
CHOKE UNION ASSEMBLY
from £43.43
from £43.43
ASSEMBLY CHOKE UNION Genuine Aston Martin - New (to order)
# 56
MPN: 095-033-0161
Washer, copper
Washer, copper Genuine Aston Martin - New (to order)
# 57
MPN: 693060
VACUUM RESERVOIR TANK
from £113.11
from £113.11
RESERVOIR - VACUUM Genuine Aston Martin - New (to order)
# 58
MPN: 692262
SCREW, M6 X 12, VACUUM TANK TO WHEELARCH
from £0.47
from £0.47
SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
# 59
MPN: 692056
WASHER, PLAIN, M6, VACUUM TANK TO WHEELARCH
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# -
-
Rivnut, M6, vacuum tank to wheelarch
# 60
MPN: 692546
TUBE, POLYVON, 1/8 X 90, VACUUM RESVR TO A/C UNIT
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# -
-
P' CLIP, NYLON, 3/16, TUBE SUPPORT
# -
-
SCREW, NO 6 X 1/2, TUBE SUPPORT
# -
-
PIPE, VACUUM TANK TO SERVO LHD
Virage. Volante up to app (V) 60192
# -
-
PIPE, VACUUM TANK TO SERVO LHD
Volante from approx (V) 60193
# -
-
P' CLIP, NYLON, 3/8 PIPE SUPPORT
# -
-
SCREW, NO 6 X 1/2 PIPE SUPPORT
# -
-
VACUUM HOSE, 11/32 ID X 30 LONG LHD
Vacuum tank to bulkhead pipe
# -
-
VACUUM HOSE, 11/32 ID X 13 LONG LHD
Vacuum pipe to tee piece
# -
-
GROMMET
Automatic cars
# -
-
SLEEVING, 12 MM, VACUUM PIPE PROTECTION
Automatic cars
# -
-
ELBOW
Automatic cars
# -
-
TEE PIECE, 6-6-6
Automatic cars
# 61
MPN: 08-64407
RESTRICTOR, INSIDE HOSE, ITEM 14, AT CARBON CAN END
Volante from (V) 60120 & 60106
from £27.44
from £27.44
RESTRICTOR Genuine Aston Martin - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
